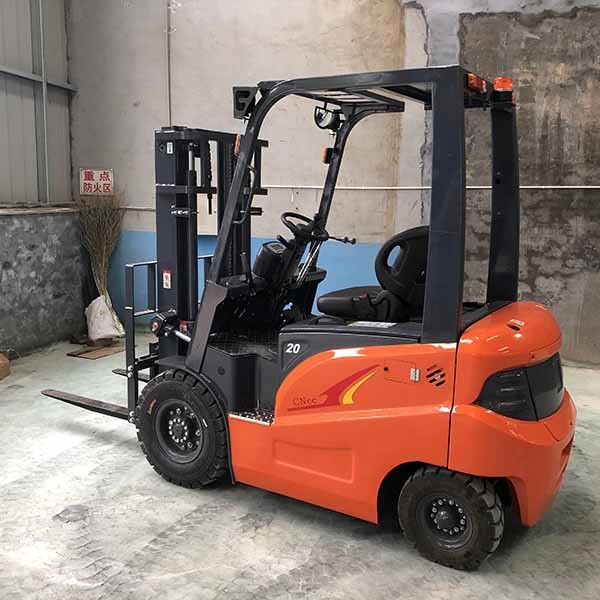

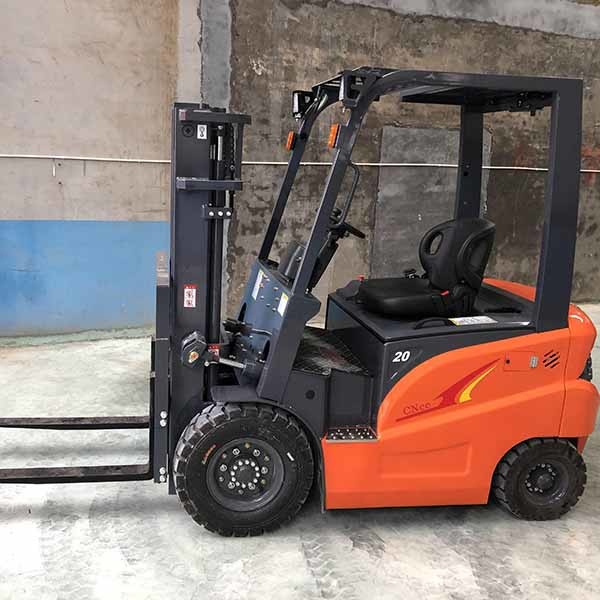

2000 kgs CPD20 2.0 Ton forklift lead acid battery AC motor 2 stage standard mast

Main information:
Load capacity: 2000kg*500mm
Lead acid battery 48V/300Ah
Chinese AC controller
AC lift motor and AC drive motor
Automatic transmission
2 stage 3m mast
Solid
Fork 1520mm
Attachments: according to customers' requirements.

ADVANTAGES
The design of Yeawey electric forklift is based on the original G series with combination of the advantages to meet the light and medium applications with great comfort and efficiency. The truck is optional to equipped with either Lead-acid battery or Li-ion battery. With lowered center of gravity and overhead guard, the truck is ideal to be used in limited spaces such as entering elevator.

Curtis controller
The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.

AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.

High performance transmission:
Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.

Durable and long working life

The enhanced drive axle and gearbox with the mast, steering axles and big tires for internal combustion forklifts can meet the demand of application in heavy-duty working conditions;

Low center of gravity and high load margin are designed for more stable working;

Verified in accordance with double standards of electric forklifts and internal combustion forklifts, with the enhanced test strength higher than that for the internal combustion standard, this forklift is reliable and durable.

Multi-function dashboard:

Multi-function display screen with fault alarm, low battery reminder. High, medium and low speed modes.

Quite low vibration design

The hydraulic system uses a low-noise gear pump and full hydraulic power steering. Quiet and comfortable operation. Shock absorbing steer axle to protect the vehicle system and prolong the service life of the forklift.
