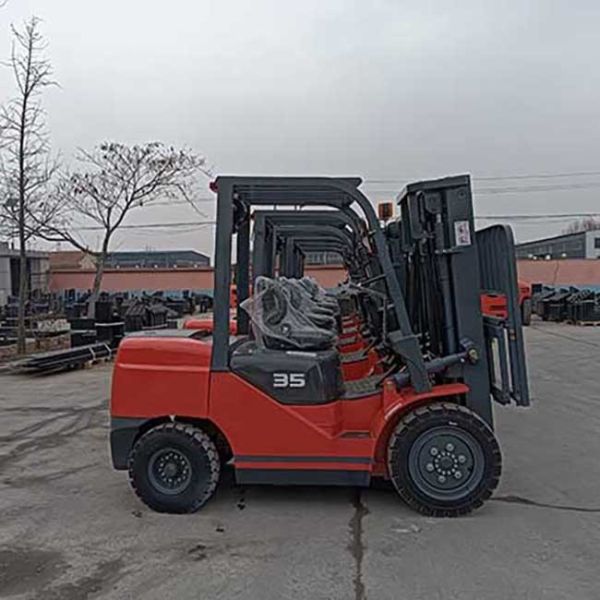

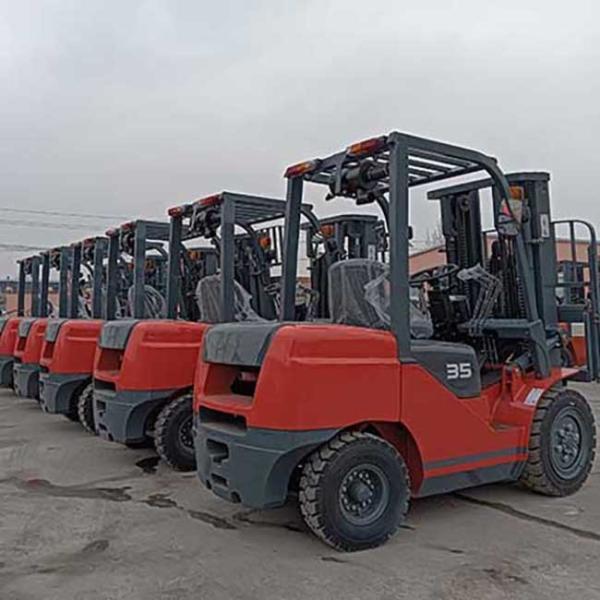

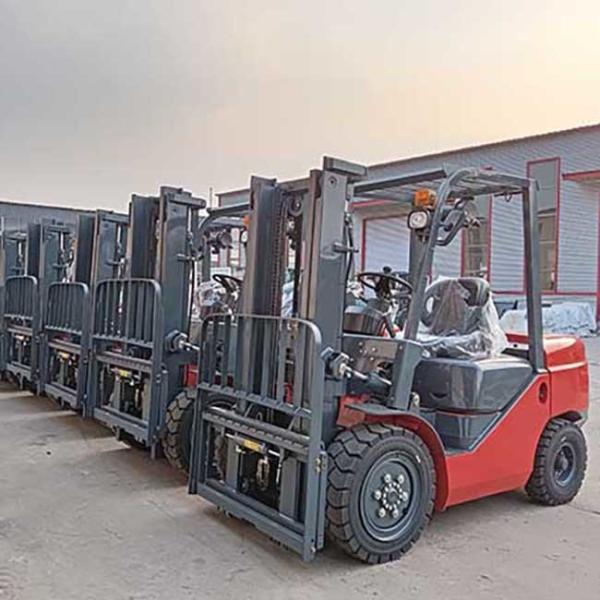

Chinese GQ-4y Gasoline Powered Forklift G Series CPCD30 Counter Forklift

Specifications

Brand Name :

YEAWEY

Model Number :

CPCD30

Certification :

CE ISO，SGS

Place of Origin :

China

MOQ :

1 unit

Price :

7000-9500 usd

Payment Terms :

L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability :

100 units per month

Delivery Time :

5-8 working days

Packaging Details :

Plastic bag

Product name :

3.0T gasoline lift truck

Engine :

Chinese GQ-4Y gasoline engine

Lift height :

3500mm

Mast type :

2 stage wide view

Fork length :

1370mm

Service weight :

4385KGS

Description

G series 3000kgs CPCD30 3 Ton gasoline powered lift truck Chinese GQ-4y engine

Main information:
Engine:Japanese Chinese GQ-4Y gasoline engine
Transmission: Automatic
Mast type: 2 stage mast 3.5m lifting height
Tires: Solid or pneumatic
Fork: 1370mm
Attachments: Side shift

The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.

Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.

Increased hood opening angle

Increases opening angle to 80° to facilitate maintenance.

Opening engine hood is easy with a revised, simple pull lever.

New design of key parts

The optimal design of key parts like frame, mast, overhead guard and steering axle improve the whole truck's safety and reliability.

Vibration reduced

Cushion connection and wholly suspension driver's cab absorb whole truck's vibration effectively.

Specification			CPCG30
1	Fuel model		Gasoline
2	Load capacity	kg	3000
3	Load center	mm	500
4	Lift height	mm	3500
5	Full free lift height	mm	100
6	Fork dimension	mm	1370×125×45
7	Mast tilting angle	Deg.	6/6
8	Min.turning radius	mm	2400
9	Groud clearance	mm	135
10	Overhead guard height	mm	2165
11	Front overhang	mm	495
12	Max travel speed	km/h	19
13	Max lift speed	mm/s	480
14	Max.traction power	KN	13.5
15	Max. gradeability	%	20
16	Total length with fork	mm	3820
17	Total length without fork	mm	2750
18	Total width	mm	1225
19	Mast extended height	mm	4265
20	Mast lowered height	mm	2060
21	Tyres Front		28x9-15-12PR
22	Type Rear		6.50-10-10PR
23	Wheelbase	mm	1700
24	Tread	mm	1000/970
25	Service weight	Kg	4390KG
26	Battery	V/Ah	12/80
27	Engine model		Chinese GQ-4Y gasoline engine
28	Engine power	kw/r.p.m	46
29	Transmission		Mechanical or Automatic
30	Work press	Mpa	18.5
