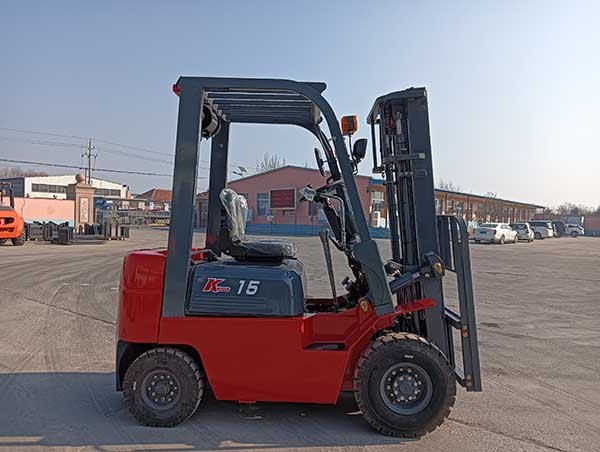

Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine
Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine
Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine
Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine
Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine
Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine
Specifications
Brand Name :
YEAWEY
Model Number :
CPCD15
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
1.5T diesel lift truck
Lift height :
4.5m container mast type
Fork Size :
920X100X35MM
Service weight :
2895KG
Engine :
MITBUSISHI S4S diesel engine
Rated power :
35.3
Description

Triplex container mast 4.5m 1.5T diesel forklift truck Japanese MITSUBISHI S4S engine

Main information:

Product name: 1.5Ton diesel counter balance forklift

Engine: Chinese Mitsubishi S4S diesel engine

Transmission: Mechanical

Mast type: wide vide 2 stage mast 3m lifting height

Tires: Pneumatic

Fork: 1220mm

Attachments: Side shift

The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.

Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.

Clear, Concise & Modern Design

Yeawey forklift design has adopted the streamline design of the Maximal A Series forklifts.The appearance is clear and concise with a very modern forklift design.

High Quality & Durable tires

Yeawey forklift front tires are a special heavy truck tire with a wide footprint giving it greater stability and lift capacity in rough work environments

Durable mast

The mast tilt angle F/R reaches to 10°/12°. Wide-view mast provides excellent through-the-mast visibility, improving the work efficiency and allowing safe operation of the forklift.

Specification CPC15
1 Fuel model Diesel
2 Load capacity kg 1500
3 Load center mm 500
4 Lift height mm 4500
5 Full free lift height mm 1500
6 Fork dimension mm 920×100×35
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 1955
9 Groud clearance mm 110
10 Overhead guard height mm 2040
11 Front overhang mm 425
12 Max travel speed km/h 13.5
13 Max lift speed mm/s 590
14 Max.traction power KN 12.3
15 Max. gradeability % 20
16 Total length with fork mm 3175
17 Total length without fork mm 2255
18 Total width mm 1070
19 Mast extended height mm 4030
20 Mast lowered height mm 1995
21 Tyres Front 6.50-10-10PR
22 Type Rear 5.00-8-8PR
23 Wheelbase mm 1410
24 Tread mm 890/920
25 Service weight Kg 2800
26 Battery V/Ah 12/80
27 Engine model

ISUZU C240

28 Engine power kw/r.p.m 34
29 Transmission Mechanical or Automatic
30 Work press Mpa 18.5

Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine

Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine

Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine

Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine

Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine

Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine

Triplex Container Mast 4.5m 1.5T Diesel Powered Forklift MITSUBISHI S4S Engine
