Main information:
Curtis controller
AC lift and drive motor
Lift height 3m to 9m
Lead acid or lithium battery

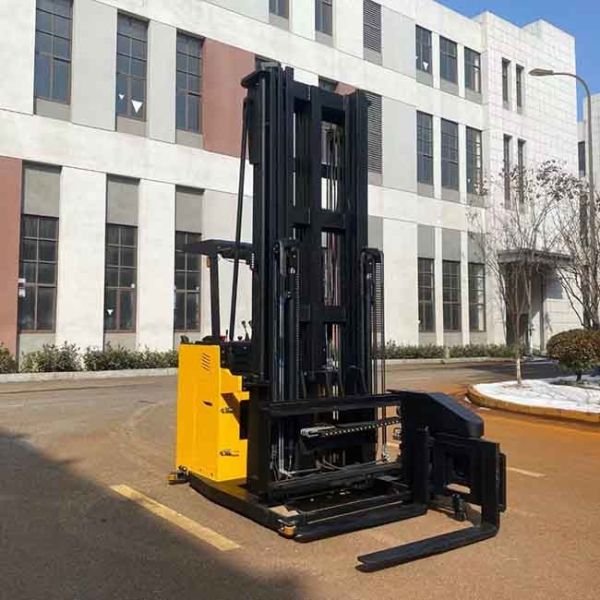

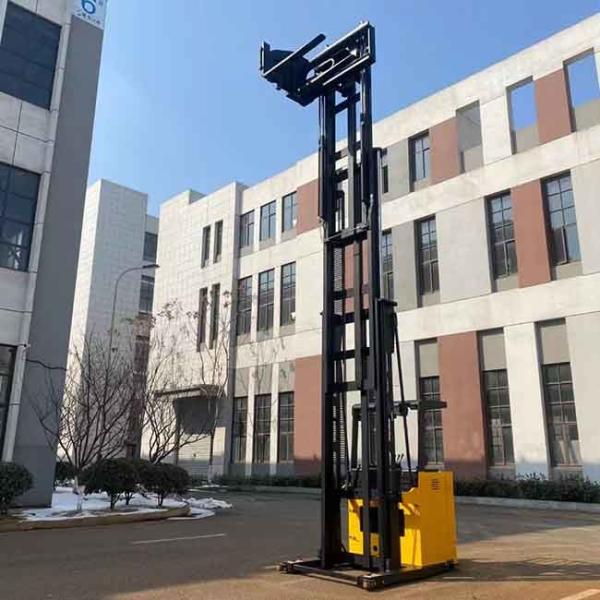

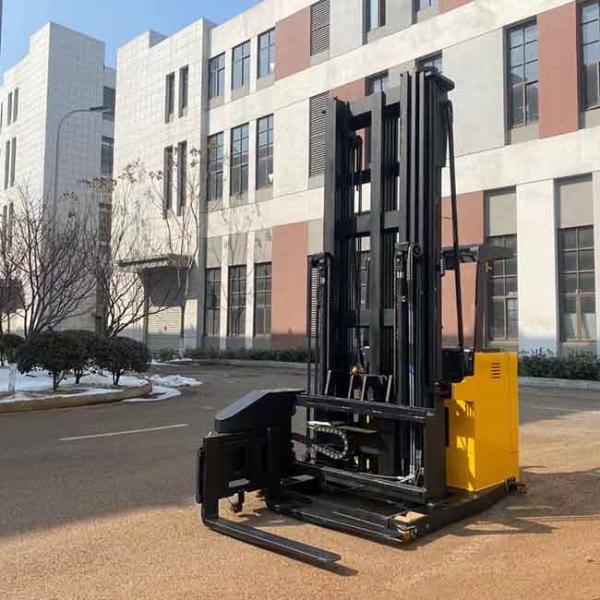

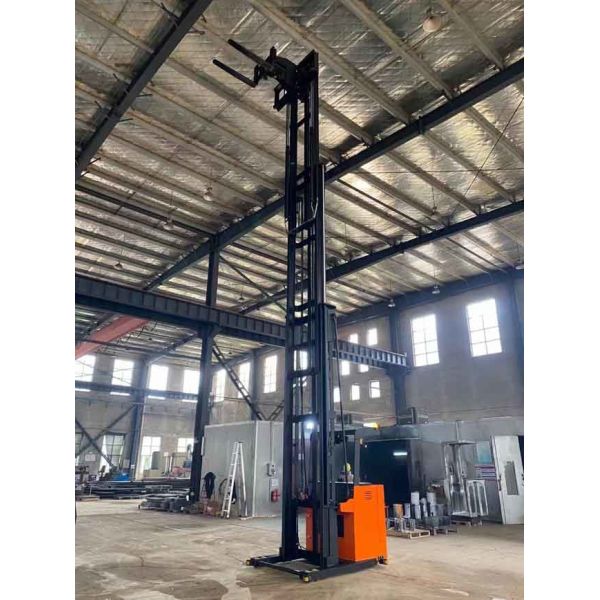

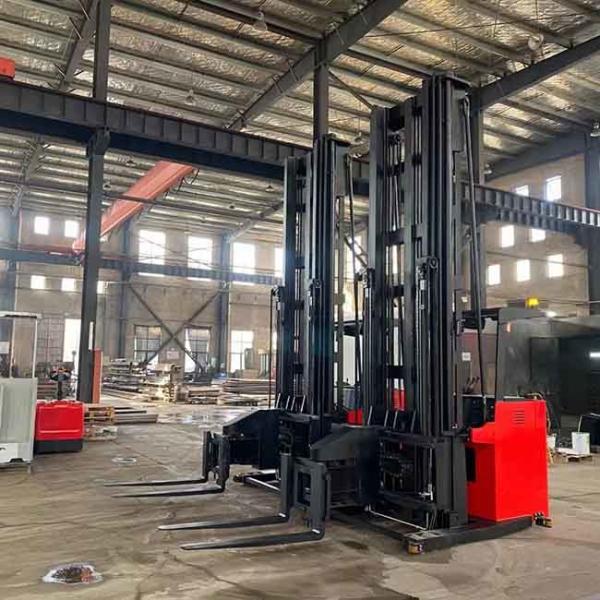

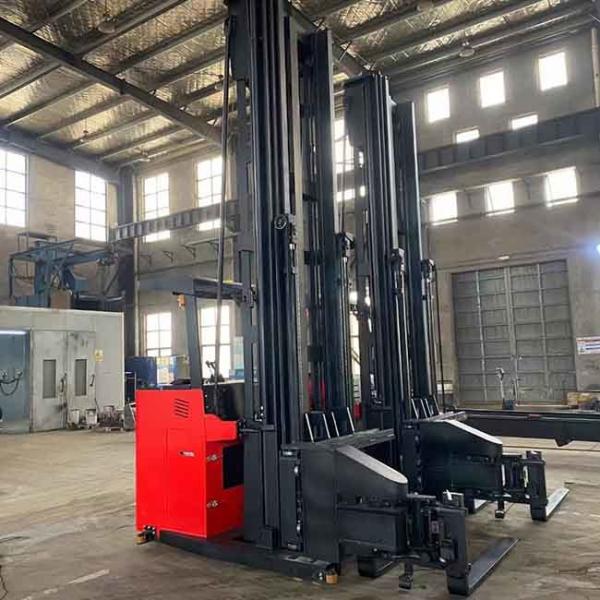

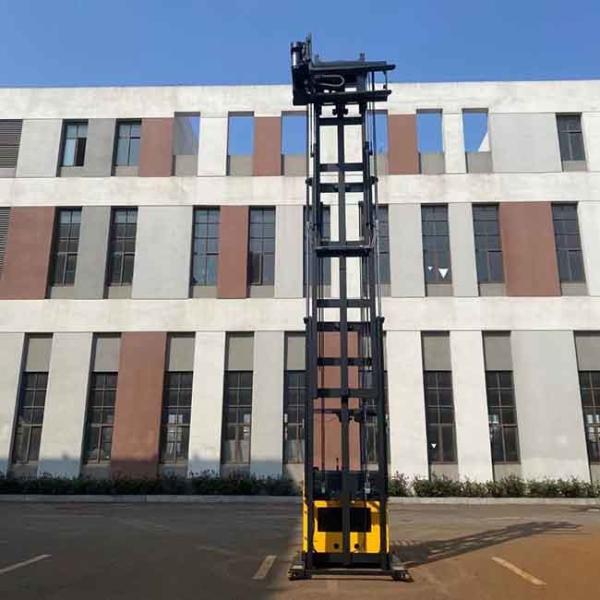

The YEAWEY Very Narrow Aisle(VNA) Forklift Truck has excellent performance and configuration. And it has the advantages of high lifting height, intelligence, safety and reliability and more. It is especially suitable for loading, unloading and stacking pallet goods for very aisle applications. It is your ideal choice for storing large good switch maximum productivity in high-density warehousing
Advantage:
Safety:
Item | Model | CSD15 | |
1 | Power type | Electric | |
2 | Drive mode | Standing Type | |
3 | Load capacity | Q(kg) | 1500 |
4 | Load center | C(mm) | 600 |
5 | Self weight with battery | kg | <6300 |
6 | Tire type | Pu solid tire | |
7 | Real tire size | ∅×w(mm) | Ф382*142 |
8 | Front tire size | ∅×w(mm) | Ф145*100 |
9 | Balance wheel size | ∅×w(mm) | Ф180*76 |
10 | Track width, front wheels | b10(mm) | 1315 |
11 | Height-Mast lowered | h1(mm) | 3165 |
12 | Free Lift Height | h2(mm) | 1980 |
13 | Lift Height | h3(mm) | 6000 |
14 | The maximum height of the gantry during homework | h4(mm) | 7185 |
15 | The height of overhead guards | h14(mm) | 2310 |
16 | Length (fork rotates on both sides) | l2(mm) | 2907 |
17 | Width of the body | b1(mm) | 1550 |
18 | Width of anti-collision guard rail | (mm) | 1600 |
19 | Fork Dimensions | s/e/l(mm) | 45/125/1220 |
20 | Fork Spread | b5(mm) | 260-650 |
21 | Min. Turning radius | m2(mm) | 32 |
22 | Channel guide width | Ast(mm) | 1760(1200*1200 pallet) |
23 | Channel guide height | (mm) | 120 |
24 | Min. Turning radius | Wa(mm) | 1910 |
25 | Main channel width | mm | 3560 |
26 | Max travel speed unladen/Load | km/h | 8/7 |
27 | Max. lifting speed unladen/Load | m/s | 0.275/0.215 |
28 | Max. lowing speed unladen/Load | m/s | 0.195/0.280 |
29 | Drive brake | electromagnetic | |
30 | Drive motor | kw | 6.5 AC |
31 | Lift motor | kw | 8.6 AC |
32 | Battery type | Lead acid | |
33 | Battery capacity | V/Ah | 48V/400Ah |
34 | Charger-intelligent | V/Ah | 48V/50A |
35 | Drive Controll Type | alternating current |
