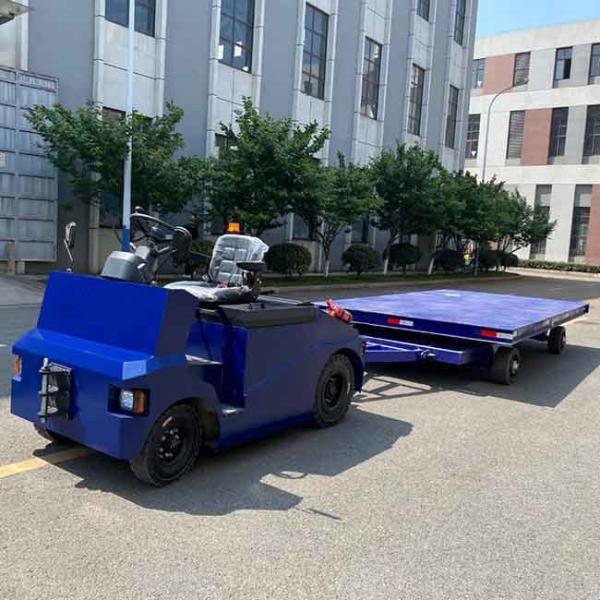

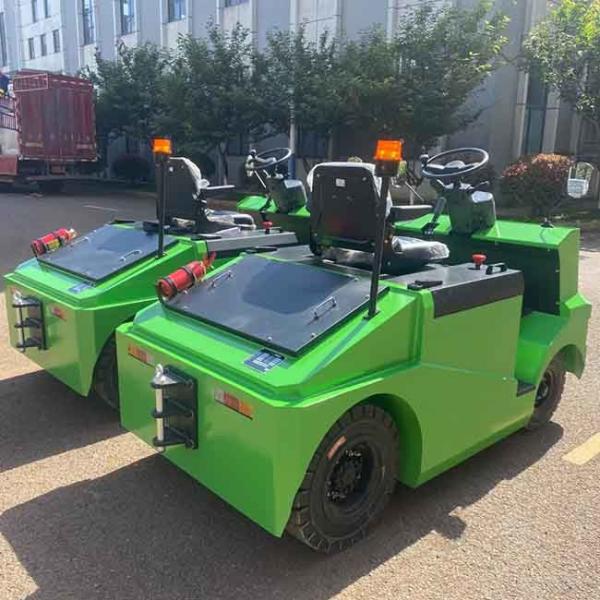

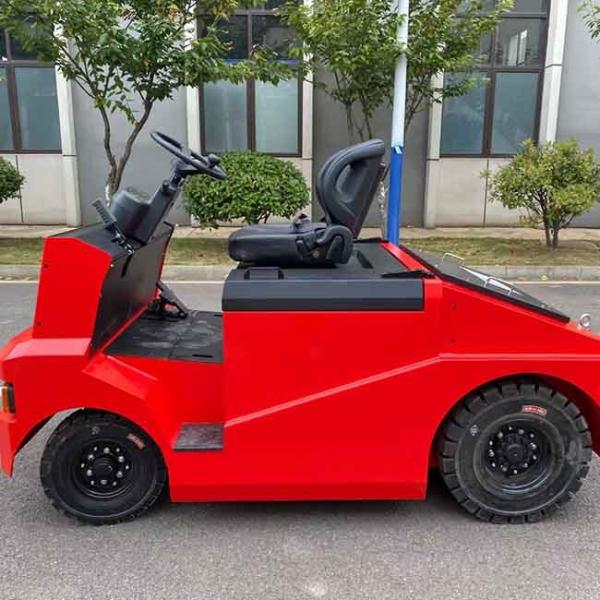

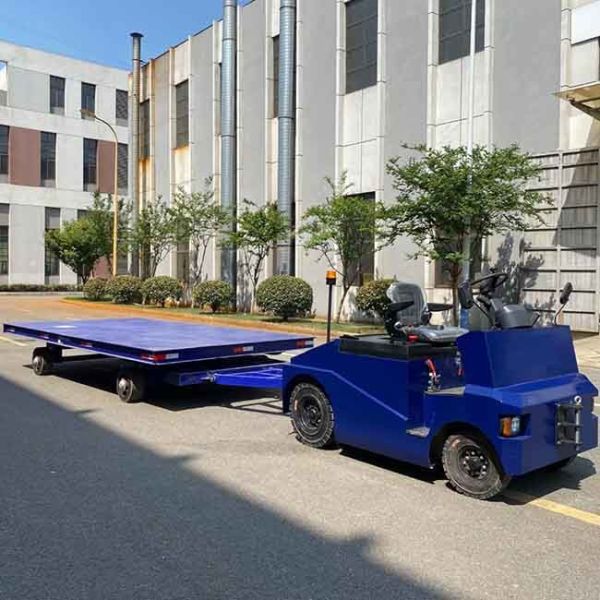

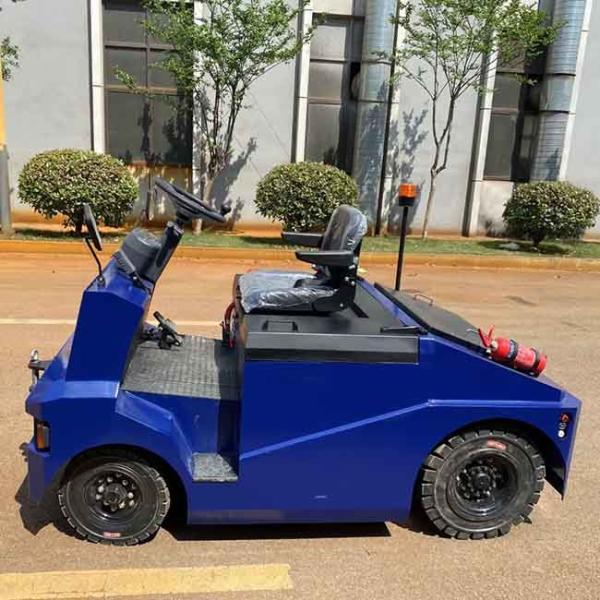

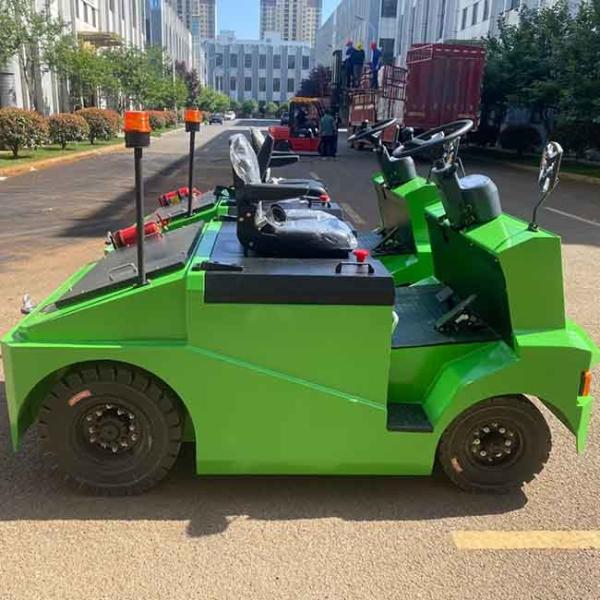

QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG
QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG
QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG
QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG
QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG
QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG
QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG
QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG
Specifications
Brand Name :
YEAWEY
Model Number :
QDD120
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
12T Seated Electric Tow Tractor
Controller :
ZAPI imported
Battery :
48V/400Ah
Service weight :
2384 kgs
Traction weight :
12-15Ton
Color :
Blue or orange
Description

Main information:

Curtis controller

AC lift and drive motor

Lead acid or lithium battery

Seating type

YEAWEY Tow tractor usually used for material traction in airports, stations, workshops and warehouses. It also can used as an important transportation tool for baggage traction, regional logistics and workshop circulation.

The truck is designed as compact structure, good maneuverability, and suitable for narrow-area operation. It's powerful, stable and reliable in operation.

Rubber shock absorption are adopted for both front and rear axles, greatly improving the driving experience and effectively reducing the vehicle vibration on the operator.

Advantage:

  • Hydraulic power steering, portable
  • Bridge drive unit
  • AC drive, brushless, motor maintenance free
  • American CURTIS drive controller
  • Regenerative braking system
  • Safety seat
  • Forward and backward fine adjustment
  • Simple operation and flexible action

Safety:

  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency brake switch travel warning
  • Cylinder safety shut-off valve
  • Hydraulic brake, hydraulic power
  • Travel warning lamp

Item Model QDD120
1 Power type Electric
2 Operation mode Seated type
3 Traction weight kg 12000
4 Tire type (front/ rear) Rubber
5 Front wheel 5.00-8
6 Rear wheel 6.50-10
7 Minimum ground clearance of the whole vehicle mm 130
8 Overall length mm 2384
9 Wheelbase mm 1532
10 Overall width mm 1100
11 Track width (front/ rear) mm 920/910
12 Turning radius mm 2260
13 Travel speed (full load/ no load) km/h 10/14
14 Gradient (full load/ no load) % 8/15
15 Drive motor power kw 8
16 Battery voltage/ capacity v/ah 48/400
17 Service weight (incl. battery) kg 1950
18 Steering type Hydraulic steering
19 Service brake type Mechanical/ hydraulic
20 Parking brake type Mechanical

QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG

QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KGQDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KGQDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KGQDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KGQDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KGQDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG

QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG



QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG

QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG
