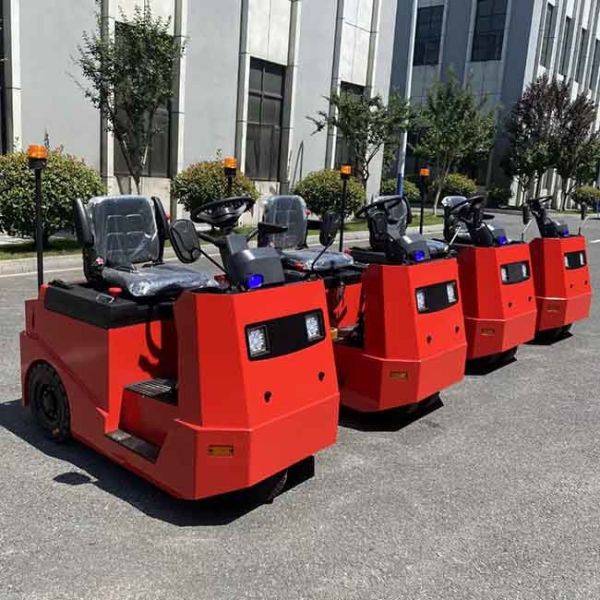

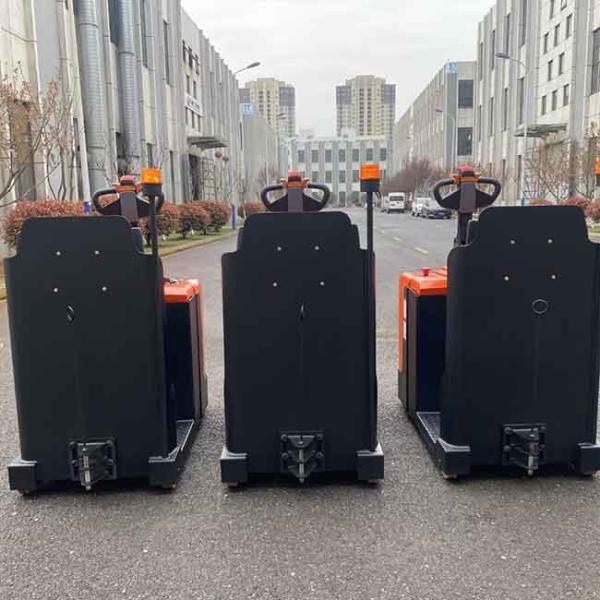

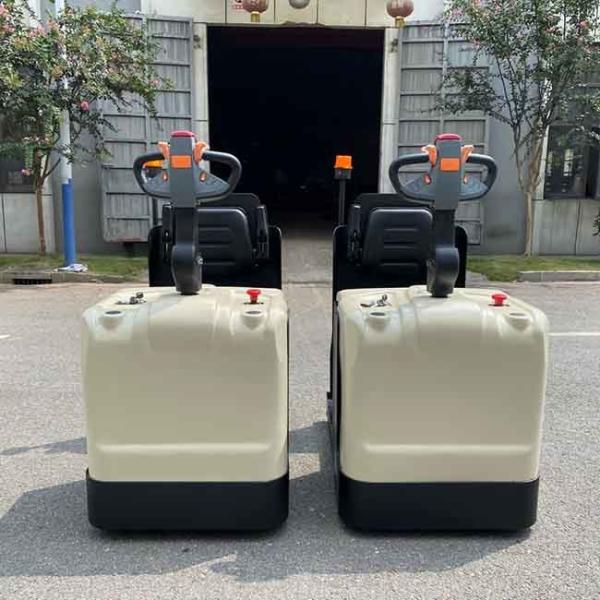

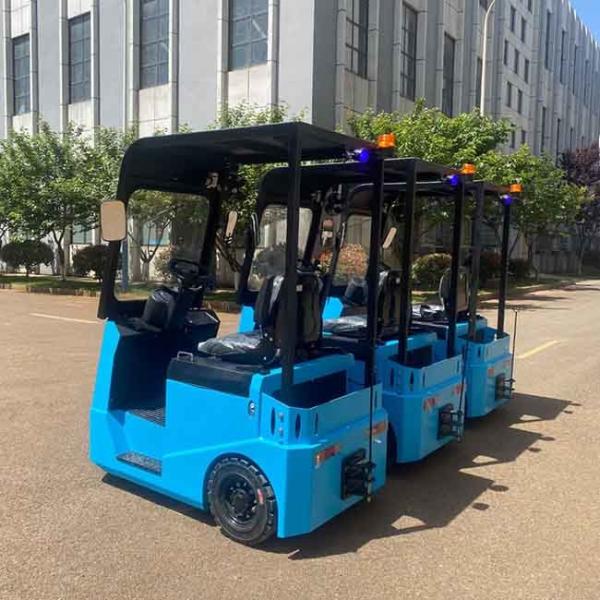

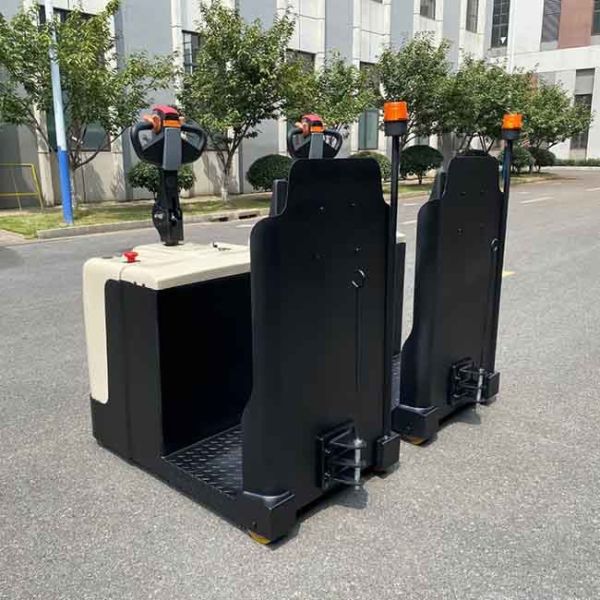

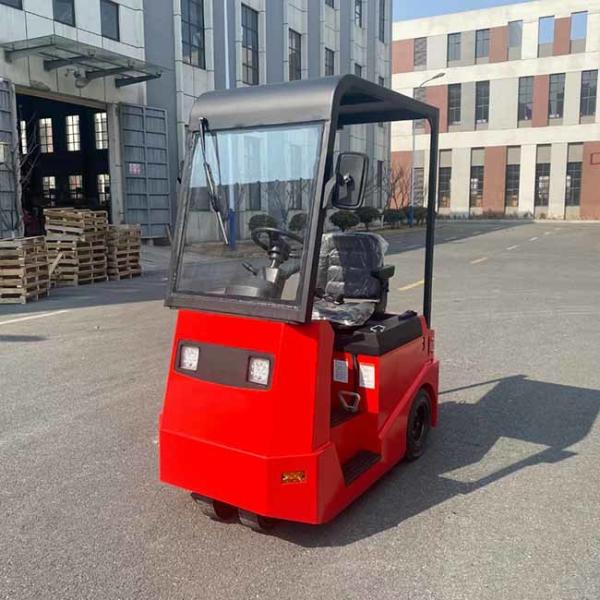

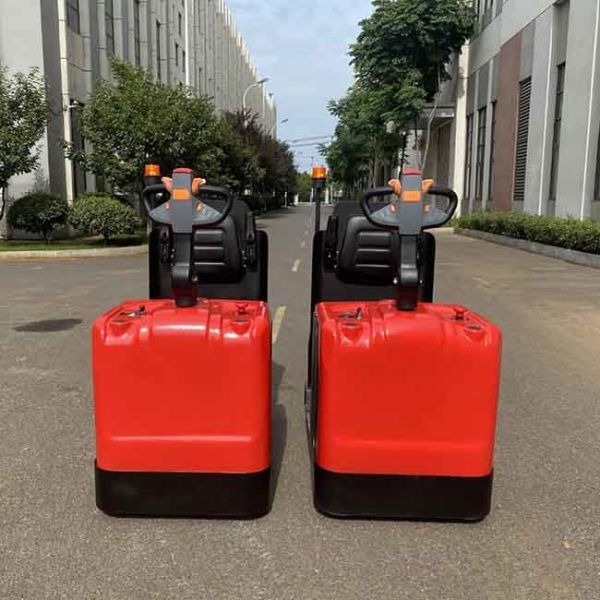

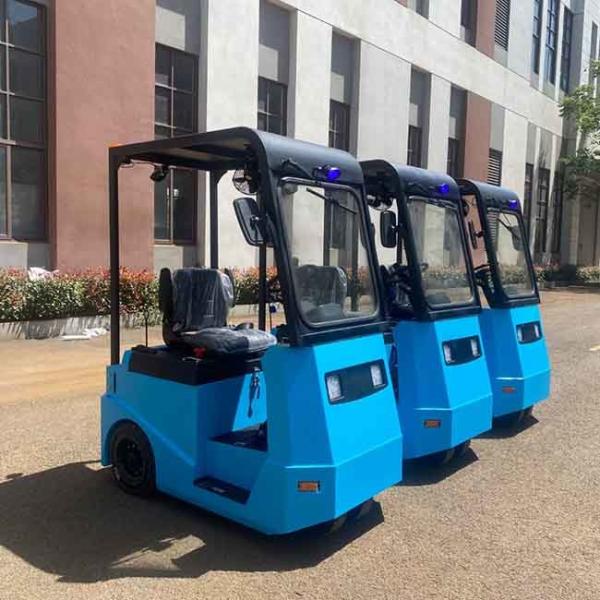

QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T
QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T
QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T
QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T
QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T
QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T
QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T
QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T
QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T
QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T
Specifications
Brand Name :
YEAWEY
Model Number :
QDD20/30/40
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
2T Standing Electric Tow Tractor
Controller :
ZAPI controller
Battery :
48V/210Ah
Service weight :
550kgs
Traction weight :
2-4Ton
Color :
Blue or red
Description

Main information:

Curtis controller

AC lift and drive motor

Lead acid or lithium battery

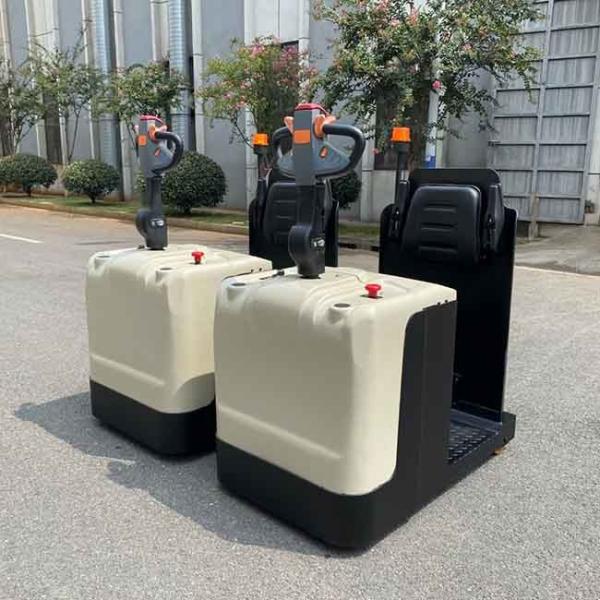

Standing type

YEAWEY Tow tractor usually used for material traction in airports, stations, workshops and warehouses. It also can used as an important transportation tool for baggage traction, regional logistics and workshop circulation.

The truck is designed as compact structure, good maneuverability, and suitable for narrow-area operation. It's powerful, stable and reliable in operation.

Rubber shock absorption are adopted for both front and rear axles, greatly improving the driving experience and effectively reducing the vehicle vibration on the operator.

Advantage:

  • Electronic power steering, portable and mute
  • Bridge drive unit
  • AC drive, brushless, motor maintenance free
  • American CURTIS drive controller
  • Electromagnetic and regenerative braking system
  • Soft cushion with protective arm
  • Simple operation and flexible steering
  • Omron inductive microswitch

Safety:

  • Drive stepless speed regulation
  • Curve automatic deceleration device
  • Controller multiple automatic protection system
  • Emergency reverse device, emergency brake switch
  • Travel warning lamp
Item Model QDD30A
1 Operation type Stand-on type
2 Power type Battery
3 Tire configuration Polyurethane solid tire
4 Max. towing weight kg 3000
5 Max. traction KN 1250
6 Overall height mm 1600
7 Width mm 776
8 Length mm 1330
9 Max. driving speed km/h 4/5.5
10 Wheelbase mm 955
11 Battery weight kg 190
12 Turning radius mm 1180
13 Parking brake type Electromagnetic braking
14 Total weight kg ~550
15 Front wheel mm Φ230*75
16 Rear wheel mm Φ150*50
17 Battery voltage/ capacity v/ah 24V/210
18 Drive motor kw 1.5
19 Travel speed regulation mode Hall accelerator
20 Electronic control Curtis electric control
21 Battery replacement method Lifting type

QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T

QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T

QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4TQDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T

QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T

QDD20/30/40 Standing Type Electric Tow Tractor Traction weight: 2T-4T
