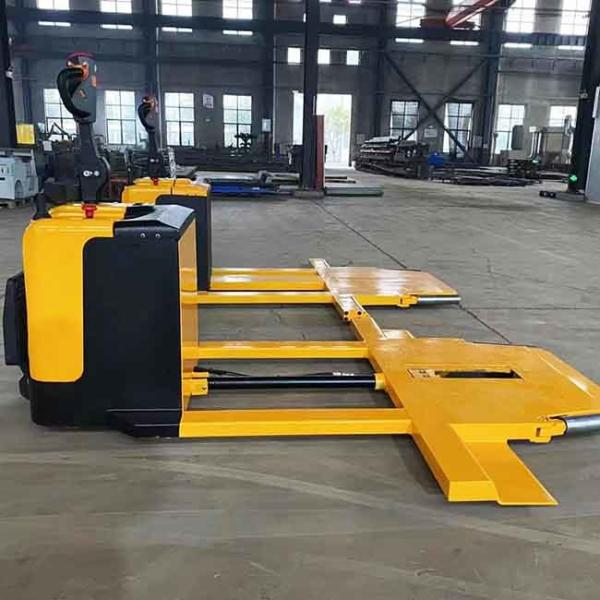

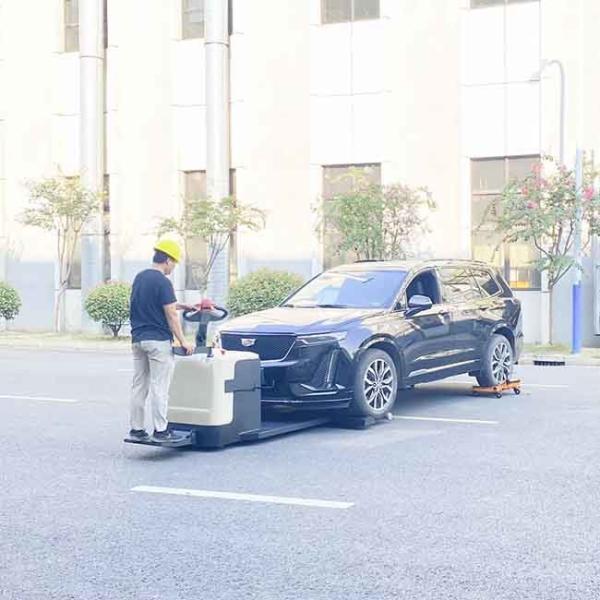

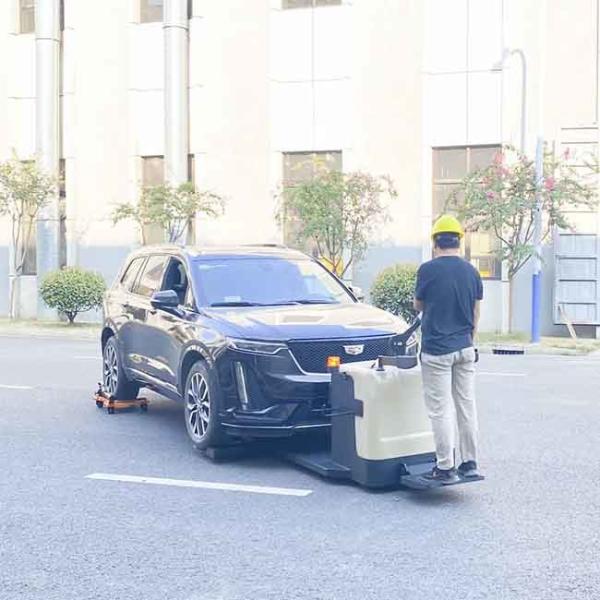

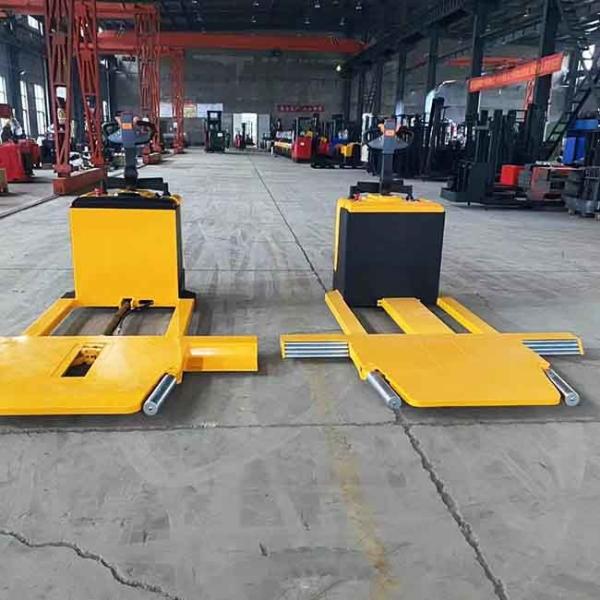

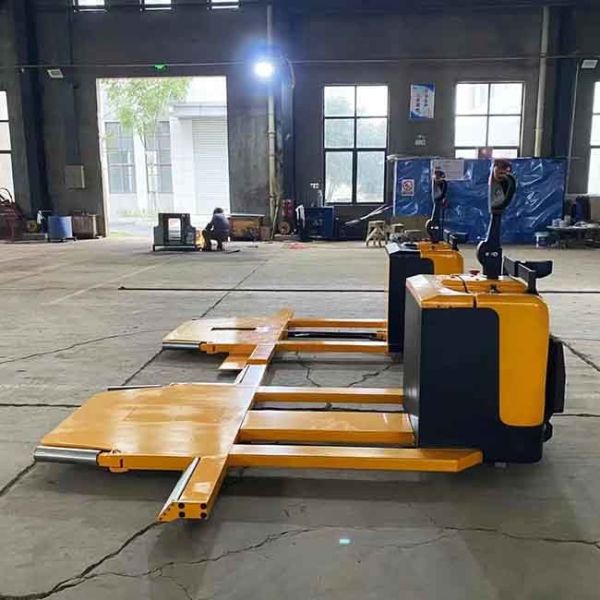

2-4.5Ton Car Transfer Pallet Truck Model: CBD20/30/45Z electric standing type
2-4.5Ton Car Transfer Pallet Truck Model: CBD20/30/45Z electric standing type
2-4.5Ton Car Transfer Pallet Truck Model: CBD20/30/45Z electric standing type
2-4.5Ton Car Transfer Pallet Truck Model: CBD20/30/45Z electric standing type
2-4.5Ton Car Transfer Pallet Truck Model: CBD20/30/45Z electric standing type
2-4.5Ton Car Transfer Pallet Truck Model: CBD20/30/45Z electric standing type
2-4.5Ton Car Transfer Pallet Truck Model: CBD20/30/45Z electric standing type
2-4.5Ton Car Transfer Pallet Truck Model: CBD20/30/45Z electric standing type
2-4.5Ton Car Transfer Pallet Truck Model: CBD20/30/45Z electric standing type
2-4.5Ton Car Transfer Pallet Truck Model: CBD20/30/45Z electric standing type
Specifications
Brand Name :
YEAWEY
Model Number :
CBD20/30/45Z
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
Car Transfer Pallet Truck
Controller :
ZAPI AC controller
Battery :
24V/210Ah
Service weight :
950kgs
Traction weight :
2-4.5Ton
Color :
Blue or red
Description

Main information:

Curtis controller

AC lift and drive motor

Lead acid or lithium battery

Standing type

Advantage:

  • Hydraulic lever
  • American CURTIS brand drive control system
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Integrated low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Multi point universal bearing of front wheel
  • Body damping system, handle damping system

Safety:

  • Curve automatic deceleration device
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device
  • Cylinder safety shut-off valve
Item Name Car transfer pallet truck (24V)
1 Operation type Stand-on type
2 Model CBD30Z
3 Traction weight kg 3000
4 Tire configuration Polyurethane solid tire
5 Minimum ground clearance of fork mm 20
6 Gear lever rotation angle ° 90
7 Overall length (incl. fork pedal stowed) mm 2660
8 Overall width mm 1885
9 Turning radius (outer pedal retracted) mm 2495 (directional wheel)
10 Maximum driving speed km/h 4/5
11 Gradeability % 2/3
12 Total weight kg ~950
13 Drive wheel mm Ø230*75
14 front wheel mm Ø76*52
15 Directional wheel mm Ø85*70
16 Balance wheel mm Φ 130*55
17 Battery capacity v/ah 24/210
18 Charger v/a 24/30
19 Drive motor kw 1.6
20 Lifting motor kw 2.2
21 Brake Electromagnetic type
22 Drive control type AC
23 Travel speed regulation mode Hall accelerator
24 Steering system Electronic steering
