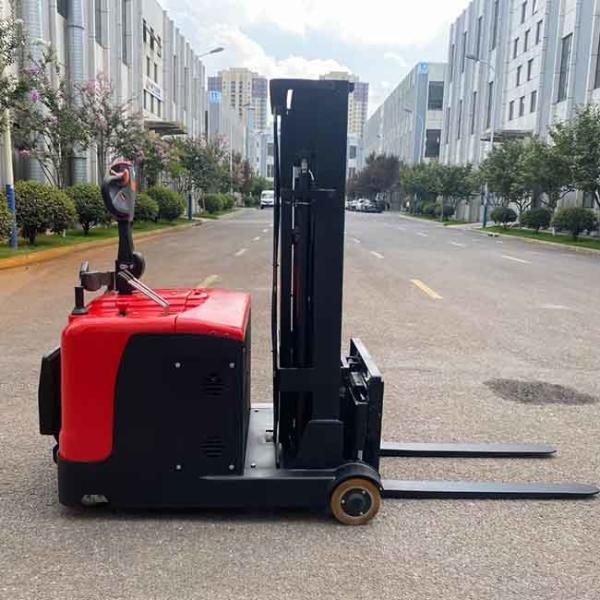

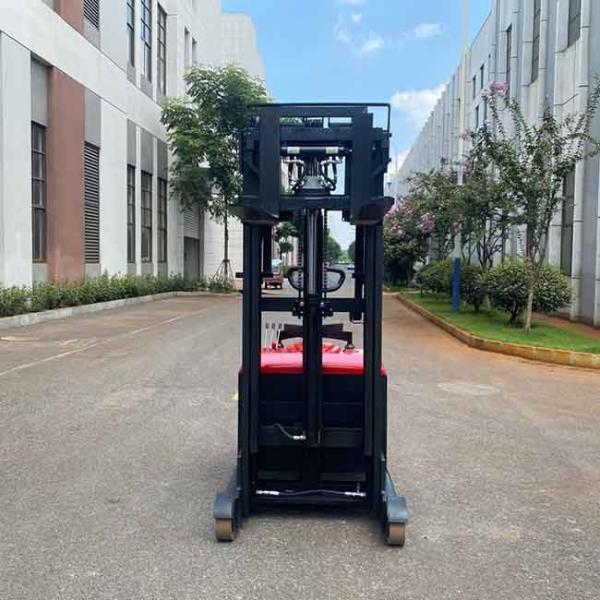

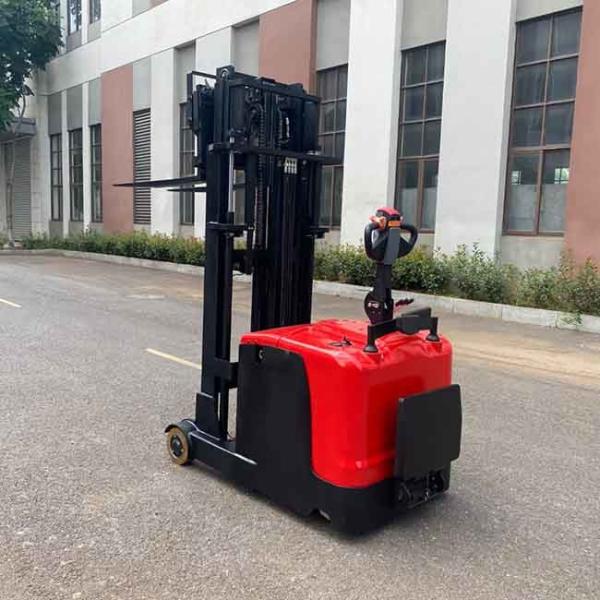

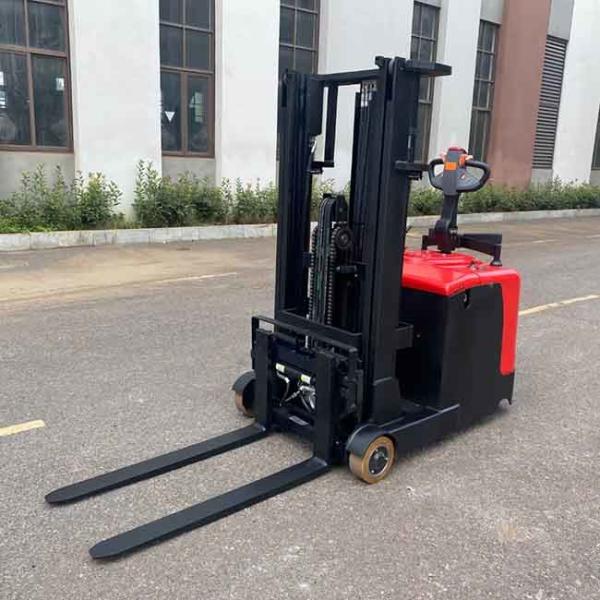

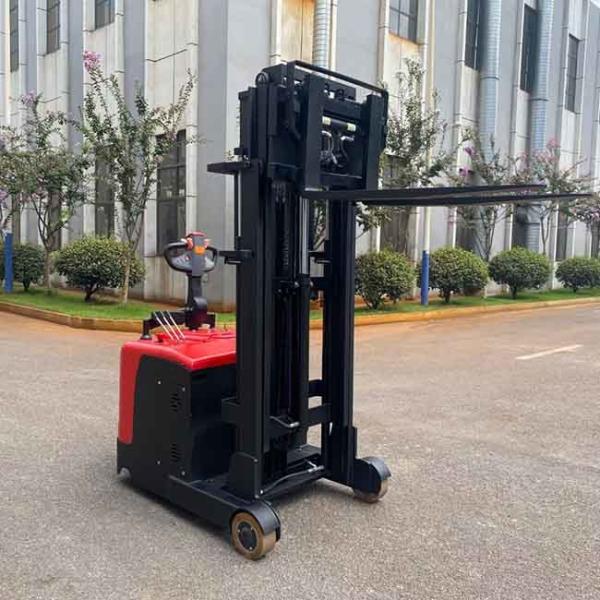

1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck
1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck
1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck
1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck
1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck
1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck
1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck
1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck
Specifications
Brand Name :
YEAWEY
Model Number :
CPDB10-25
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
1T counterbalanced stacker
Load capacity :
1000 kgs*600mm
Lift height :
2500mm
Mast type :
2 stage wide view
Battery :
24V/220Ah
Service weight :
1700 kgs
Description

Main information:

Load capacity: 1000kg

Chinese AC controller, AC motors
24V/220Ah lead acid battery
Mast type: duplex mast
Lift height: 2500mm
Fork: 1150mm

The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.

Multi-function LCD instrument

Multi-function LCD instrument can display steering wheel position, battery power, power alarm, fault code running time, driving speed and other information.

Superior pump and controller

Low-noise gear hydraulic pump reduces the lifting noise of the whole vehicle.Travel motor controllers, hydraulic pump motor controllers and steering motor controllers of international well-known brands are self-protected, maintenance free and have superior performance.

Suspension seat(optional)

The highly elastic shock-absorbing seat greatly reduces the transmission of vibration to the driver. the seat can be adjusted in multiple positions to meet the operation needs.

Item Model CPDB10-25
1 Power type Electric
2 Drive mode Standing Type
3 Load capacity Q(kg) 1000
4 Load center C(mm) 500
5 Front overhang X(mm) 129
6 Wheel base Y(mm) 1335
7 Self weight with battery kg 1700
8 Tire type Pu solid tire
9 Driver specifications ∅×w(mm) φ230*75
10 Front tire size ∅×w(mm) φ210*85
11 Rear tire size ∅×w(mm) φ150*50
12 Track width, front wheels b10(mm) 898
13 Track width, rear wheels b11(mm) 736
14 Height-Mast Lowered h1(mm) 1845
15 Lift Height h3(mm) 2500
16 The maximum height of the gantry during homework h4(mm) 3470
17 Length of body l2(mm) 1757
18 Overall length L1(mm) 2834
19 Width of body b1(mm) 983
20 Frork dimensions s/e/l(mm) 35/100/1070
21 Fork spread b5(mm) 210-680
22 Min ground clearance m2(mm) 70
23 Channel width,pallet size 1000*1000mm Ast(mm) 3131/3534
24 Min. Turning radius(Pedal retraction/unfolding Wa(mm) 1652/2055
25 Max.walking speed km/h 5/4
26 Max. lifting speed m/s 0.112/0.095
27 Max. lowing speed m/s 0.094/0.110
28 Grade Ability ％ 8/5
29 Drive brake Electromagnetic
30 Drive motor kw 1.5
31 Lift motor kw 2.2
32 Battery type Lead acid
33 Battery capacity V/Ah 24V210Ah
34 Charger V/A 24V30A
35 DriveControllingType alternating current
36 The noise level in the driver's ear according to EN12053 dB(A) 75

1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck

1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck

1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck

1000kg CPDB10-25 1Ton counterbalanced stacker warehouse use electric truck
