Specifications
Brand Name :
YEAWEY
Model Number :
CPDB20-25
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
2T counterbalanced stacker
Load capacity :
2000 kgs*600mm
Lift height :
2.50m
Mast type :
Duplex
Battery :
24V/220Ah
Service weight :
1890 kgs
Description

Main information:

Load capacity: 2000kg

Chinese AC controller, AC motors
24V/216Ah lead acid battery

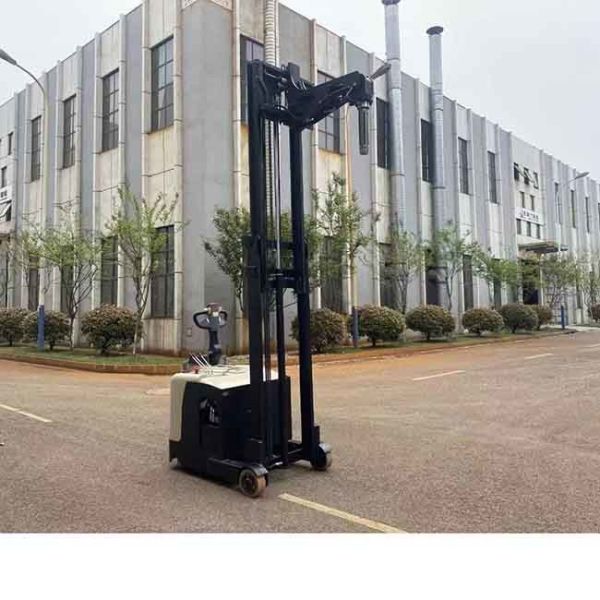

Mast type: duplex mast
Lift height: 2.5m

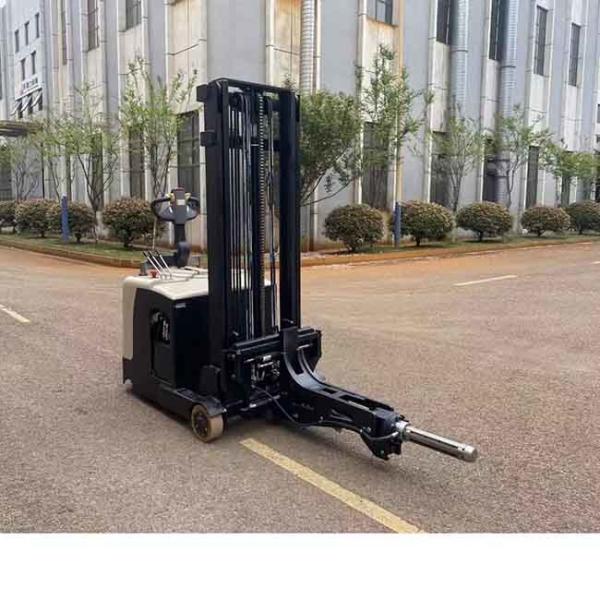

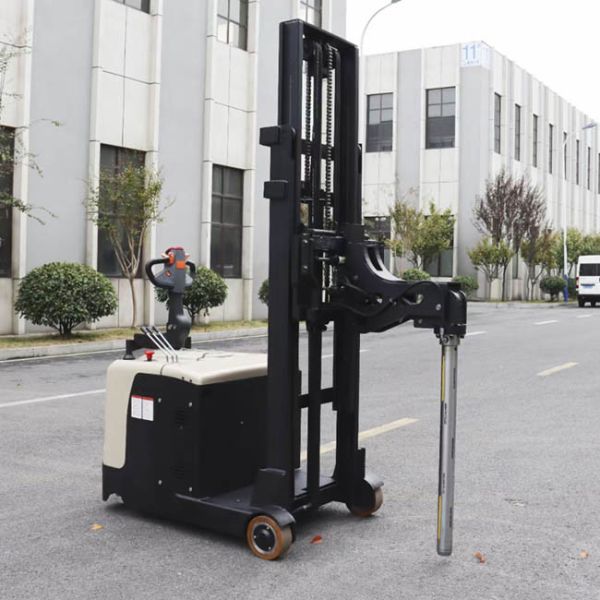

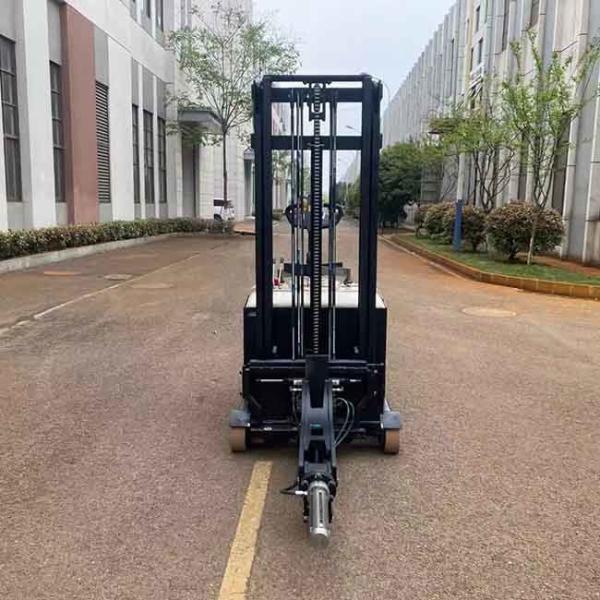

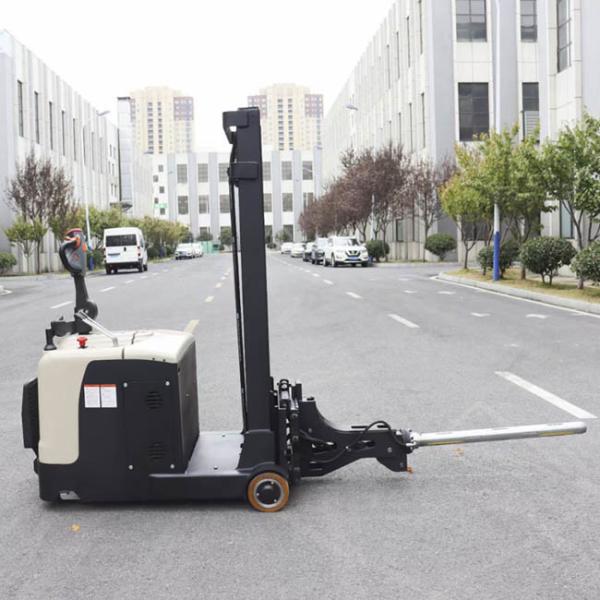

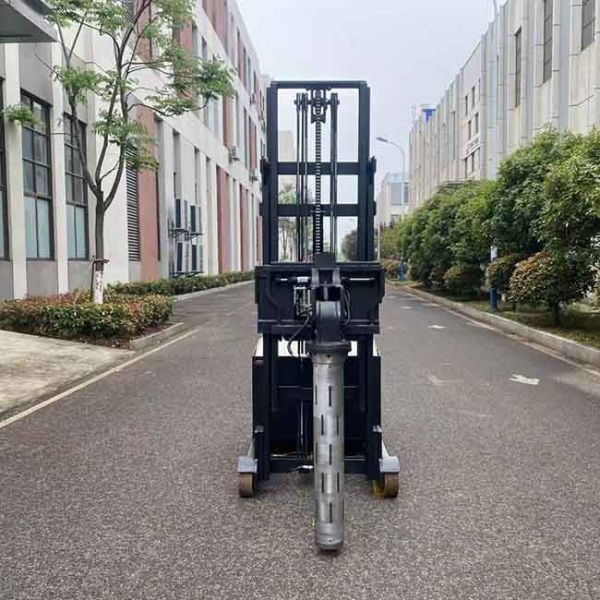

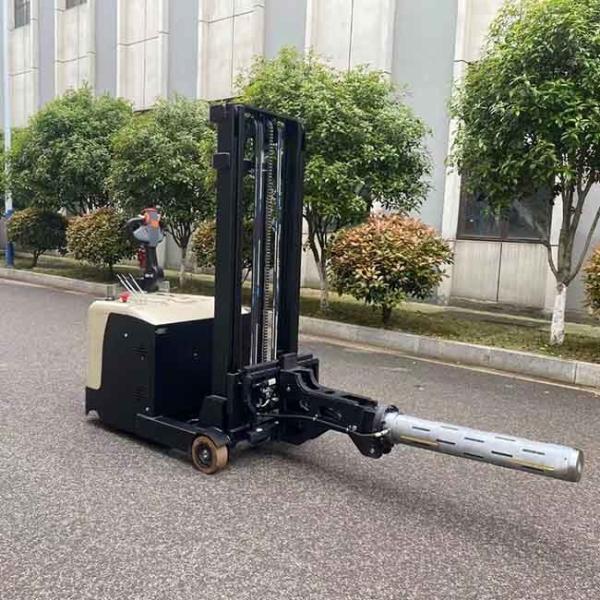

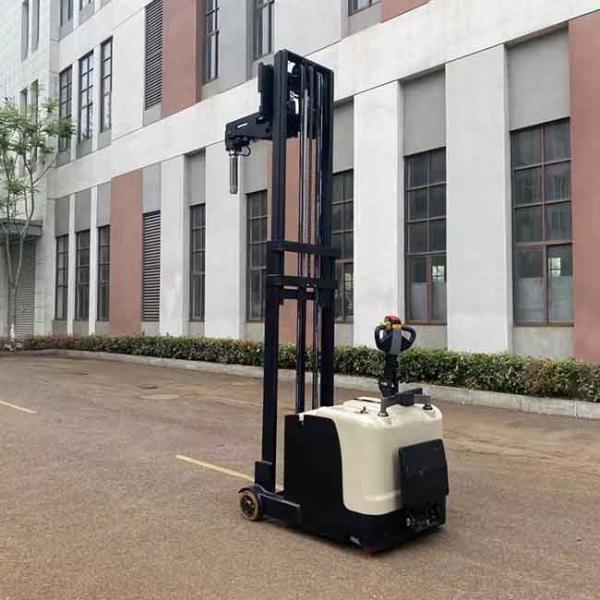

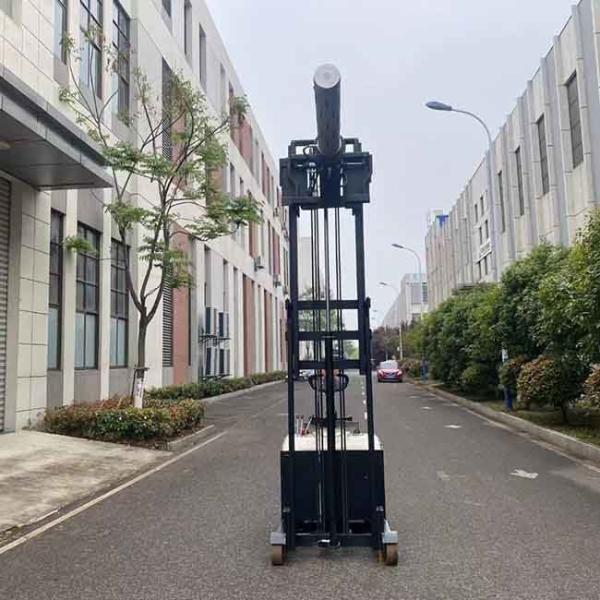

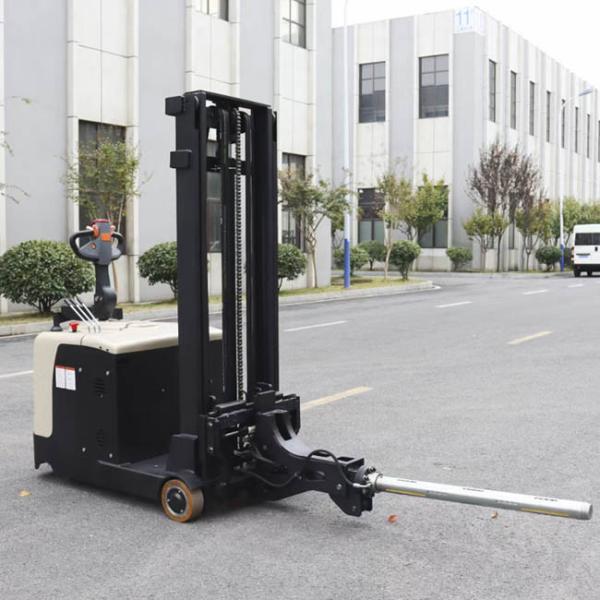

Attachment: air swelling shaft

The rated load capacity of YEAWEY electric counterbalanced stacker is from 1200kg to 2000kg and the maximum lifting height is 4500mm.

The main feature of this series of stacker is the compact structure, which provides you with an excellent operating experience while ensuring a high configuration.

Compact design, fast driving speed, mast forward and backward structure and durable chassis.

Compact structure

The structure of the truck is more compact than the traditional manual and semi-electric products, and is more efficient. It provides customers with a new solution that can replace manual and semi-electric products. More importantly,it can greatly reduce the physical damage to the operators caused by the long-term drag or lifting and lowering operation comparing to the traditional manual products.

Built-in high-energy sealed battery, Long-term use without maintenance, you don't need to add water during the period of life.

Item Model CPDB20-25
1 Power type Electric
2 Drive mode Standing Type
3 Load capacity Q(kg) 2000
4 Load center C(mm) 500
5 Front overhang X(mm) 129
6 Wheel base Y(mm) 1635
7 Self weight with battery kg 1890
8 Tire type Pu solid tire
9 Driver specifications ∅×w(mm) φ230*75
10 Front tire size ∅×w(mm) φ210*85
11 Rear tire size ∅×w(mm) φ150*50
12 Track width, front wheels b10(mm) 898
13 Track width, rear wheels b11(mm) 736
14 Height-Mast Lowered h1(mm) 1845
15 Lift Height h3(mm) 2500
16 The maximum height of the gantry during homework h4(mm) 3470
17 Length of body l2(mm) 2057
18 Overall length L1(mm) 3134
19 Width of body b1(mm) 983
20 Frork dimensions s/e/l(mm) 40/122/1070
21 Fork spread b5(mm) 210-705
22 Min ground clearance m2(mm) 70
23 Channel width,pallet size 1000*1000mm Ast(mm) 3431/3834
24 Min. Turning radius(Pedal retraction/unfolding Wa(mm) 1952/2355
25 Max.walking speed km/h 5/4
26 Max. lifting speed m/s 0.090/0.070
27 Max. lowing speed m/s 0.096/0.123
28 Grade Ability ％ 6/4
29 Drive brake Electromagnetic
30 Drive motor kw 2.5
31 Lift motor kw 2.2
32 Battery type Lead acid
33 Battery capacity V/Ah 24V210Ah
34 Charger V/A 24V/30A
35 DriveControllingType alternating current
36 The noise level in the driver's ear according to EN12053 dB(A) 75

2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft

2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft

2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft

2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft



2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft

2000kg CPDB20-25 2Ton counterbalanced stacker warehouse use air swelling shaft
