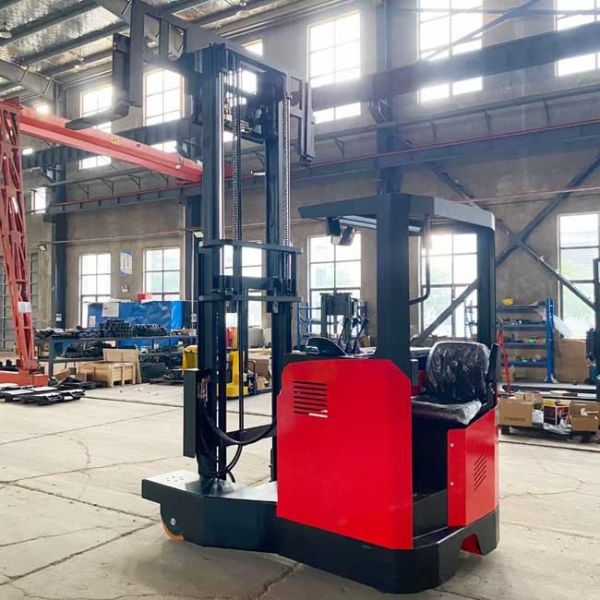

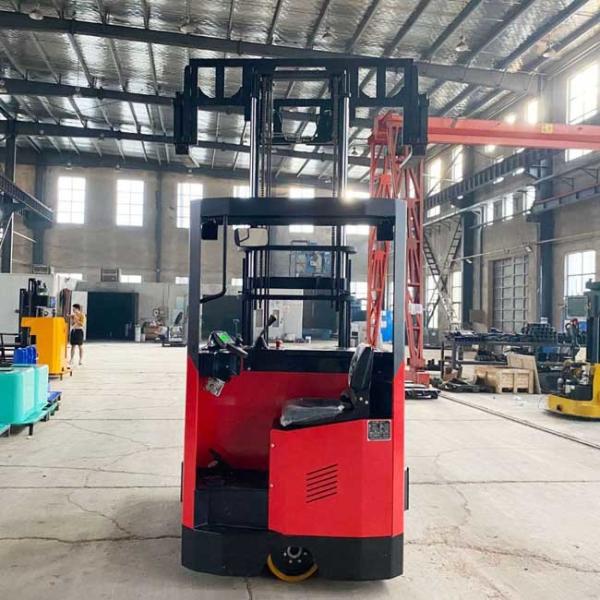

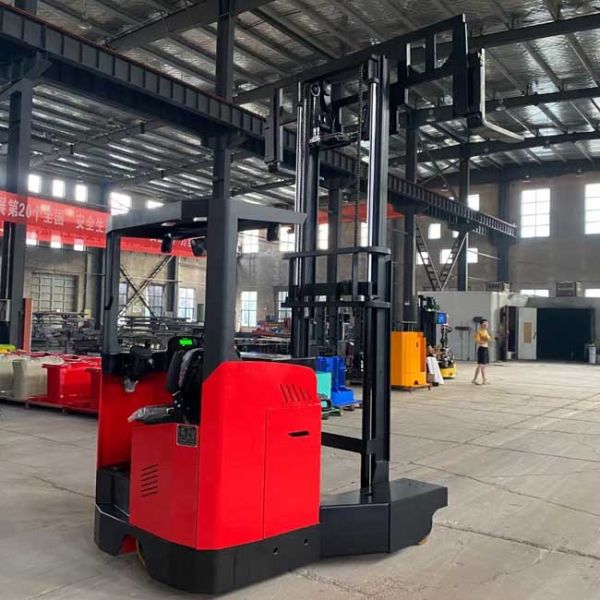

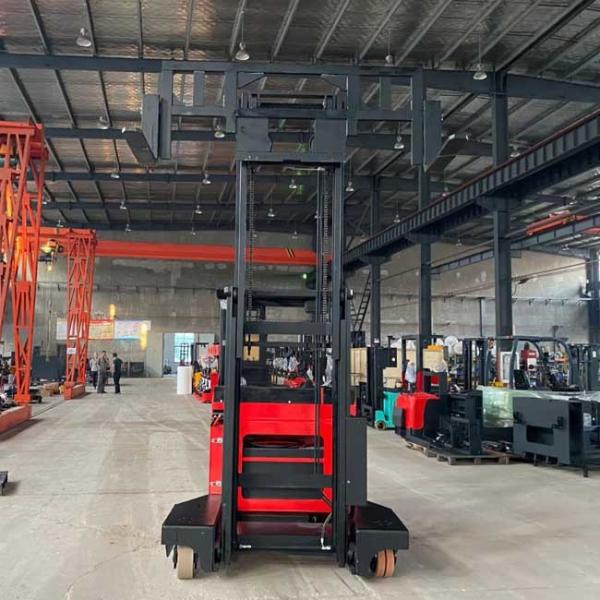

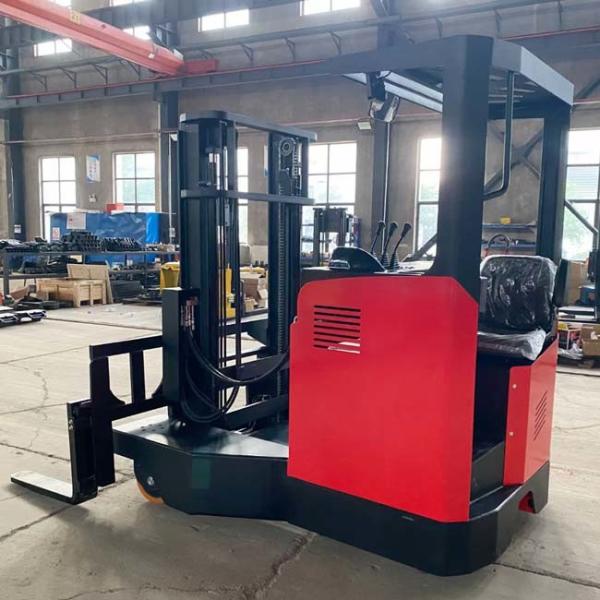

2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m
2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m
2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m
2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m
2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m
2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m
2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m
2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m
Specifications
Brand Name :
YEAWEY
Model Number :
CPDB20-25
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
2.5T Multi-direction stacker
Load capacity :
2500 kgs*600mm
Lift height :
6.5m
Mast type :
Triplex type
Battery :
48V/300Ah
Service weight :
4100 kgs
Description

Main information:

Model: CQD15S/ 20S

Load: 1500-20000KG

Lifting height: 3000-7500mm

Curtis controller

AC drive an lift motor

Four-directional driving, used for narrow aisle stacking operation,saving storage area greatly, switching fast between straight and side lines, simple operation, quickly change direction, highefficiency and few failure rate.

Free maintenance of AC drive system, making the whole vehicle more responsive and accurate.

lmported controller, accurate control, simple setting of electrical control parameters, powerful function and low failure rate.

Stable operation, especially used for long shape material handling.

Real-time display of driving wheel angle makes it easy to fine turn the direction in narrow aisle, very safe, reasonable and accurate identification.

Large capacity special power battery with strong power, safe and reliable, convenient charging, long cycle life and low maintenance cost.

Item Model CQD25S-45
1 Load capacity Q(kg) 2500
2 Load center C(mm) 500
3 Front overhang X(mm) 210
4 Wheel base Y(mm) 1800
5 Self weight with battery kg 4100
6 Tire type Pu solid tire
7 Front tire size ∅×w(mm) φ267*114
8 Rear tire size ∅×w(mm) φ382*142
9 Track width, front wheels b10(mm) 1432
10 Height-Mast lowered h1(mm) 2360
11 Free Lift Height h2(mm) 1500
12 Lift Height h3(mm) 4500
13 The maximum height of the gantry during homework h4(mm) 5480
14 The height of overhead guards h14(mm) 2180
15 The height when fork lowered h13(mm) 45
16 Tilt-Forward/Back α/β(°) 3/5
17 Overall length l1(mm) 2660
18 Length of the body l2(mm) 2280
19 Width of the body b1(mm) 1682
20 Leg height h5(mm) 390
21 Leg inner width b12(mm) 932
22 Leg outer width b11(mm) 1682
23 Fork Dimensions s/e/l(mm) 45/125/1070
24 Fork Spread b5(mm) 260-700
25 Reach distance L(mm) 720
26 Min ground clearance m2(mm) 70
27 Aisle Width,pallet 1000*1200mm Ast(mm) 2860
28 Min. Turning radius Wa(mm) 2120
29 Max travel speed unladen/Load km/h 8/7
30 Max. lifting speed unladen/Load m/s 0.240/0.220
31 Max. lowing speed unladen/Load m/s 0.240/0.260
32 Grade Ability unladen/Load ％ ≤10
33 Drive brake electromagnetic
34 Drive motor kw 6.5
35 Lift motor kw 8.6
36 Battery type Lead acid
37 Battery capacity V/Ah 48V400Ah
38 Charger-intelligent V/Ah 48V/50A
39 Drive Controll Type alternating current
40 The noise level in the driver's ear according to EN12053 dB(A) 75

2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m

2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m



2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m

2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m
