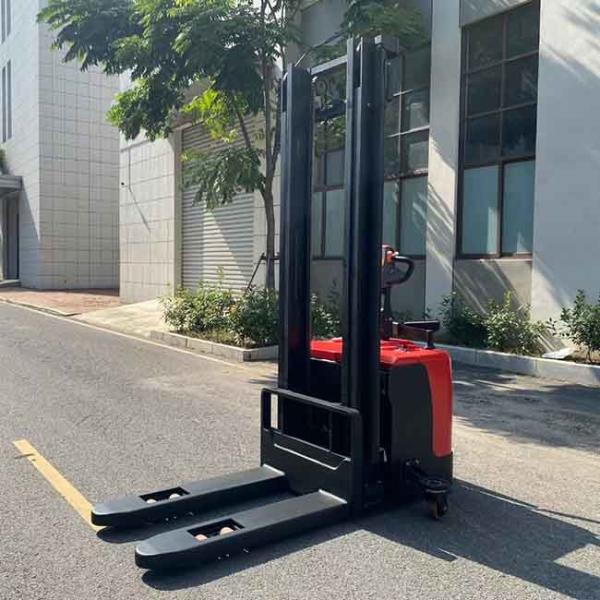

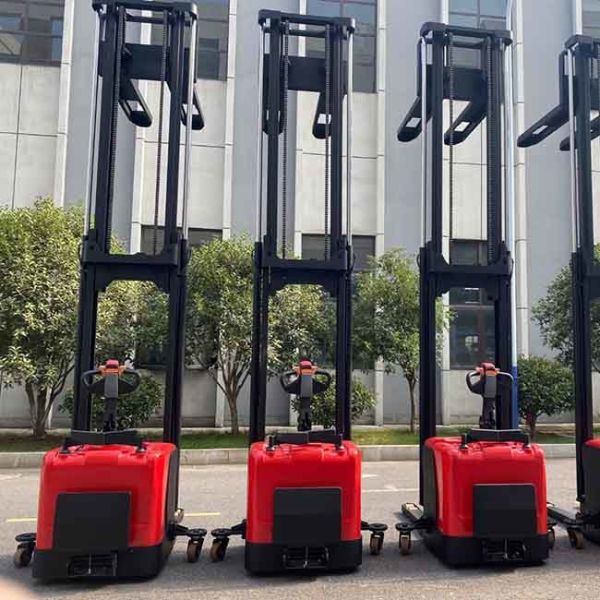

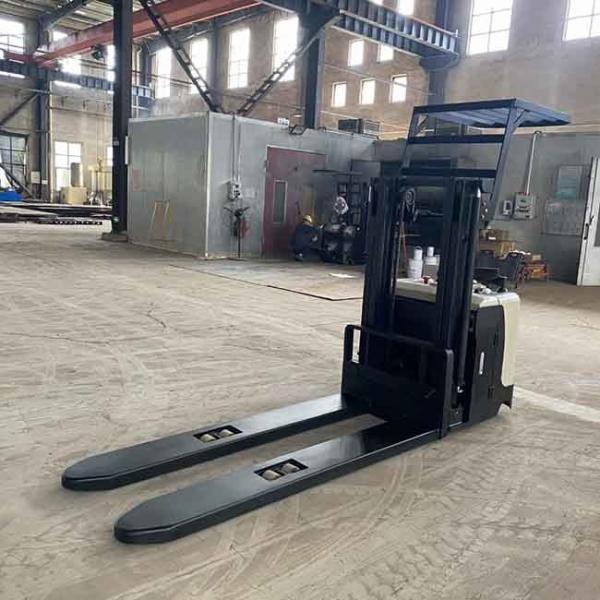

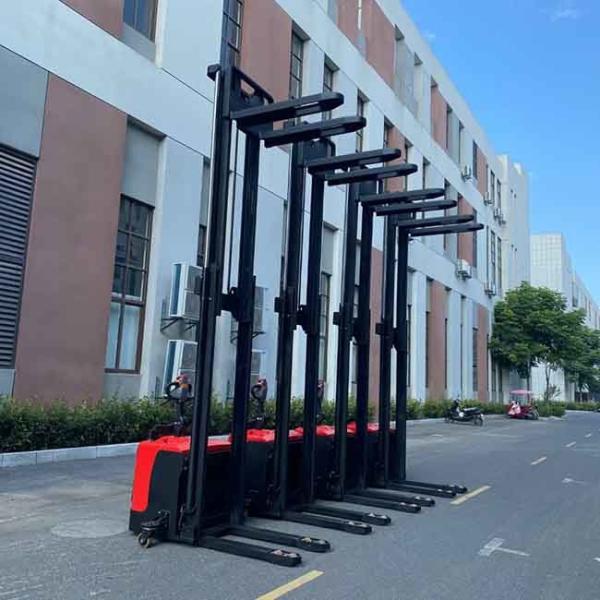

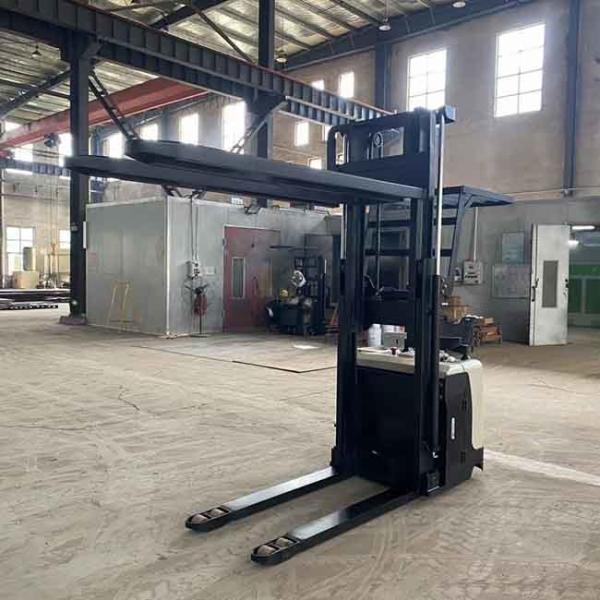

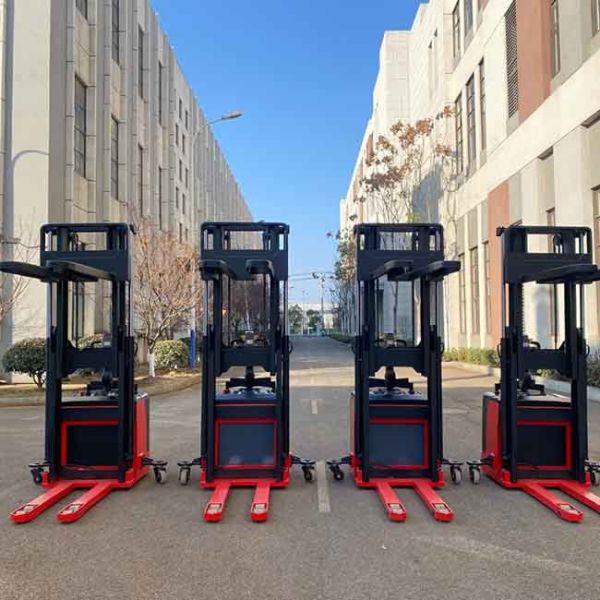

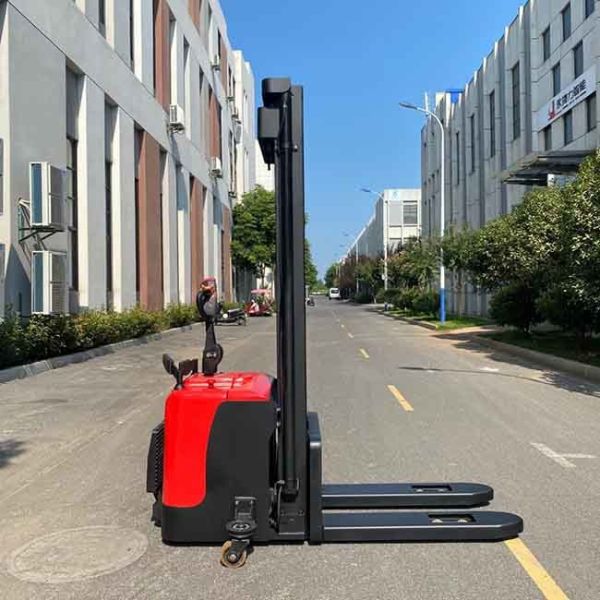

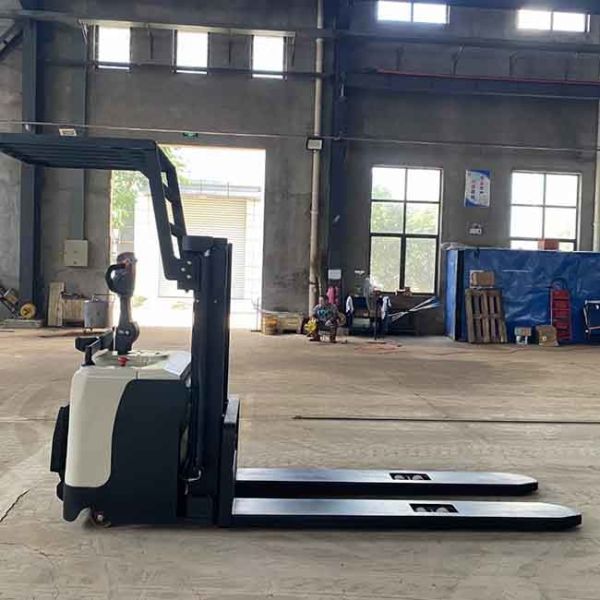

3000kgs Walkie Pallet Stacker Lead Acid Battery Powered Pallet Stacker
3000kgs Walkie Pallet Stacker Lead Acid Battery Powered Pallet Stacker
3000kgs Walkie Pallet Stacker Lead Acid Battery Powered Pallet Stacker
3000kgs Walkie Pallet Stacker Lead Acid Battery Powered Pallet Stacker
3000kgs Walkie Pallet Stacker Lead Acid Battery Powered Pallet Stacker
3000kgs Walkie Pallet Stacker Lead Acid Battery Powered Pallet Stacker
3000kgs Walkie Pallet Stacker Lead Acid Battery Powered Pallet Stacker
3000kgs Walkie Pallet Stacker Lead Acid Battery Powered Pallet Stacker
Specifications
Brand Name :
YEAWEY
Model Number :
CDD30-30
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
3T standing type electric forklift
Load capacity :
300 kgs*600mm
Lift height :
3000mm
Mast type :
2 stage good view
Battery :
24V/213Ah
Service weight :
1690 kgs
Description

2 stage 3.0m mast 3Ton electric stacker warehouse use standing type lead acid battery

Main information:

Load capacity: 3000kg

Chinese AC controller, AC motors
24V/220Ah lead acid battery
Mast type: duplex mast
Lift height: 3000mm
Fork: 1220mm

YEAWEY electric stacker is more adoptable to complex ground and not easy to slip. The fixed balance wheel on both side enhances the stability and pass ability of the truck.

Driving wheel with pressure adjustable structure, is more practical for different application scenarios and vehicle weights.

Driving wheel floating technology, combined with foldable platform floating structure, makes the truck higher effective in shock absorption and more comfortable in operation.

Password lock

The multi-function password lock can manually enter the password or swipe the card to start, which simplifies the authorization operation process and meets the requirements of multi-shift work.

Safety operation

Elector-hydraulic proportional control system, good fretting performance, more stable work and more precise control.

Stable mast

High-precision forward sliding rails and excellent clearance compensation design make the mast more stable during reach application.

Item Model CDD30II-30
1 Power type Fully electric
2 Drive mode Standing Type
3 Load capacity Q(Kg) 3000
4 Load center C(mm) 500
5 Wheel base Y(mm) 1577
6 Self weight with battery kg 1690
7 Tire type Front/Rear Pu solid tire
8 Front tire size ∅×w(mm) Φ85x90
9 Rear tire size ∅×w(mm) Φ254x104
10 Track width, front wheels b2(mm) 530
11 Track width, rear wheels b3(mm) 758
12 Height-Mast Lowered h(mm) 2188
13 Lift Height h1(mm) 3000
14 Maximum height when fork is lifting h2(mm) 3571
15 Handle Height h5(mm) 1430
16 Min. Fork height h3(mm) 95
17 Overall length Pedal Closed/open L(mm) 2235/2655
18 Overall width b1(mm) 1020
19 Fork size s/e/l(mm) 75/230/1150
20 Width over fork b5(mm) 760
21 Min ground clearance m2(mm) 30
22 Min. stacking aisle 1000*1200 pallet(1200 cross fork placement) Ast(mm) 2715
23 Min. stacking aisle 1000*1200 pallet(1200 placed along forks) Ast(mm) 3120
24 Min Turning Radius When Pedal Closed Wa(mm) 1880
25 Max.walking speed km/h 5.5/4
26 Max. lifting speed m/s 0.117/0.08
27 Max. lowing speed m/s 0.082/0.140
28 GradeAbility ％ 6/4
29 Drive brake Electromagnetic
30 Drive motor kw 3
31 Lift motor kw 3
32 Battery type Lead acid battery
33 Battery capacity V/Ah 24/210
34 Charger V/A 24/30
35 DriveControllingType alternating current
36 The noise level in the driver's ear according to EN12053 dB(A) 75
