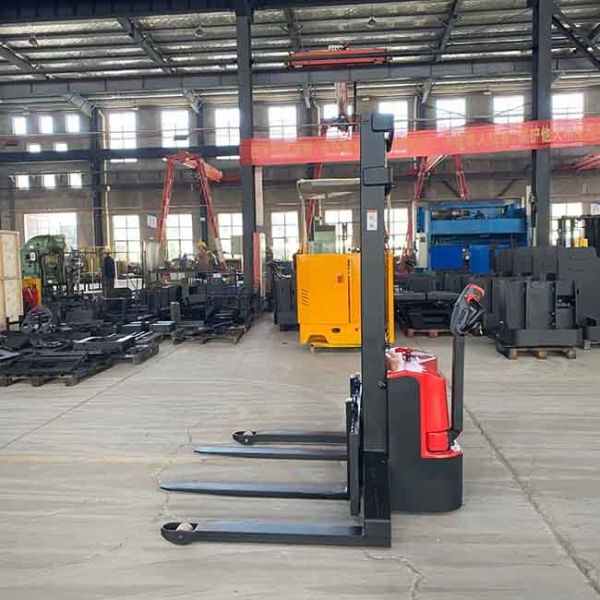

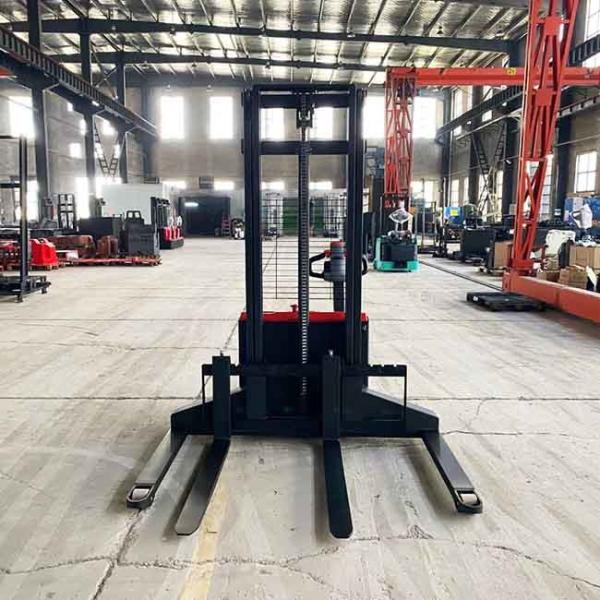

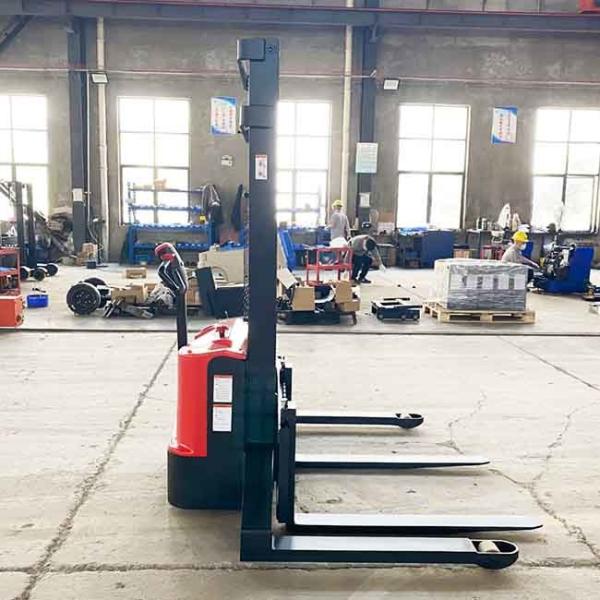

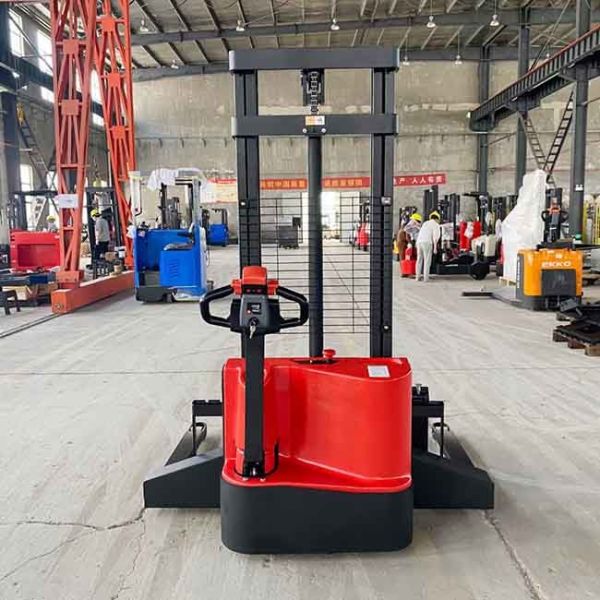

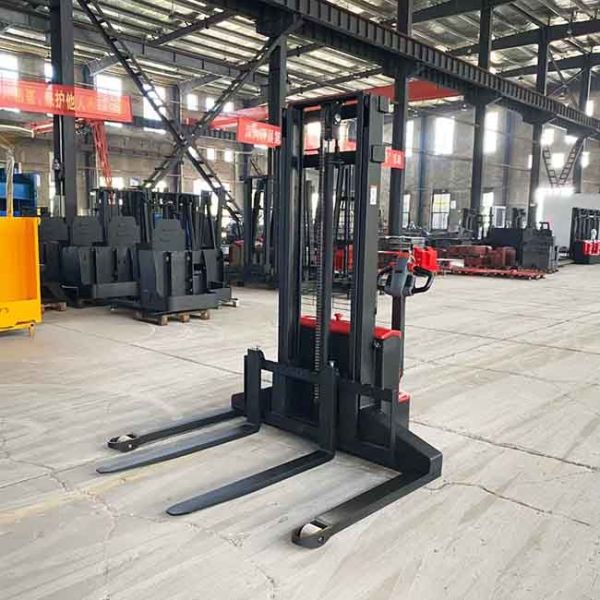

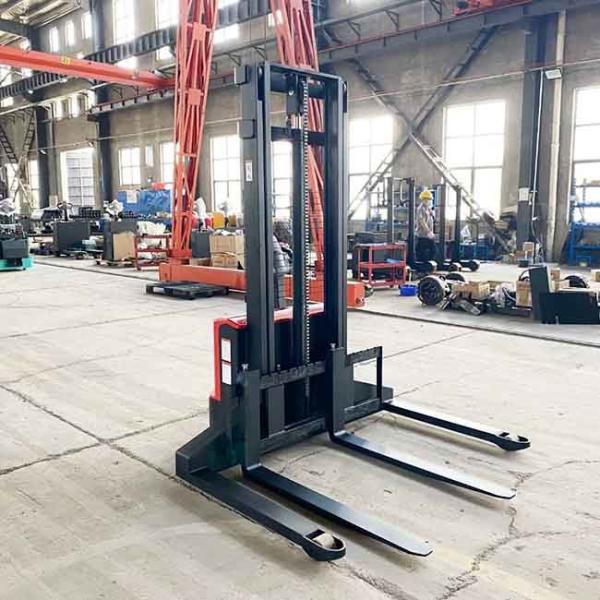

ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack
ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack
ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack
ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack
ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack
ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack
ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack
ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack
Specifications
Brand Name :
YEAWEY
Model Number :
CTDC10-30
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
1-1.5T walkie electric forklift
Load capacity :
1T-1.5T*600mm
Lift height :
3000mm mast
Fork length :
1370mm
Battery :
24V/100Ah
Service weight :
695-730
Description

Duplex mast 3m mast 1-1.5Ton electric walkie straddle stacker warehouse use lead acid battery

Main information:
Chinese AC controller

Straddle type
24V/100Ah lead acid battery forklift
Mast type: 2 stage mast
Lift height: 3000mm
Fork: 1220mm

The structural components are welded automatically, with beautiful and consistent welds; Foldable metal cover, securely fastened, durable, and easy to maintain;
Optional balance wheels can be installed to improve driving stability.

Item Model CTDC10-30 CTDC12-30 CTDC15-30
1 Power type Electric
2 Drive mode Walkie Type
3 Load capacity Q(Kg) 1000 1200 1500
4 Load center C(mm) 500 500 500
5 Wheel base Y(mm) 1225 1225 1225
6 Self weight with battery kg 695 713 730
7 Axle load at full load, drive end/bearing end kg 764/1392 764/1392 764/1392
8 Axle load when unloaded, drive end/bearing end kg 477/179 477/179 477/179
9 Tire type Front/Rear Pu solid tire
10 Front tire size ∅×w(mm) Φ85x90 Φ85x90 Φ85x90
11 Rear tire size ∅×w(mm) Φ210x70 Φ210x70 Φ210x70
12 Track width, front wheels b10(mm) 1400 1400 1400
13 Track width, rear wheels b11(mm) 520 520 520
14 Height-Mast Lowered h1(mm) 1997 1997 1997
15 Lift Height h3(mm) 3000 3000 3000
16 Maximum height when fork is lifting h4(mm) 3617 3617 3617
17 Min.Fork height h13(mm) 35 35 35
18 Overall length l1(mm) 1765 1765 1765
19 Overall width b1(mm) 1530 1530 1530
20 Fork dimensions s/e/l(mm) 35/100/1070 35/100/1070 35/100/1070
21 Forks Spread b5(mm) 200-680 200-680 200-680
22 Min ground clearance m2(mm) 43 43 43
23 Min. stacking aisle 1000*1200 pallet(1200 cross fork placement) Ast(mm) 2400 2400 2400
24 Min. Turning radius Wa(mm) 1430 1430 1430
25 Max.walking speed km/h 4/3.5 4/3.5 4/3.5
26 Max. lifting speed m/s 0.101/0.09 0.101/0.09 0.101/0.09
27 Max. lowing speed m/s 0.111/0.130 0.111/0.130 0.111/0.130
28 Grade Ability ％ 6/3 6/3 6/3
29 Drive brake Electromagnetic
30 Drive motor kw 0.75 0.75 0.75
31 Lift motor kw 2.2 2.2 2.2
32 Battery type Lead acid Lead acid Lead acid
33 Battery capacity V/Ah 2x12/80 2x12/80 2x12/80
34 Charger V/A 24V/10A 24V/10A 24V/10A
35 DriveControllingType DC DC DC
36 The noise level in the driver's ear according to EN12053 dB(A) 75 75 75

ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet JackISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet JackISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet JackISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet JackISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet JackISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack

ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack

ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack

ISO Straddle Pallet Stacker 1000kg-1500kg Electric Stacker Pallet Jack
