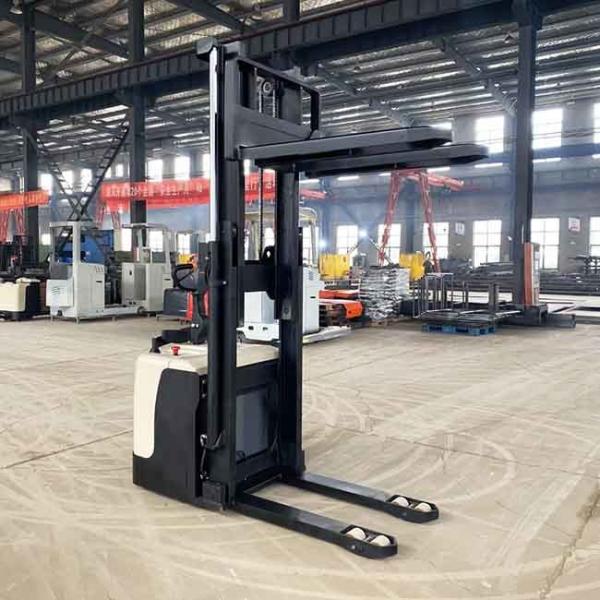

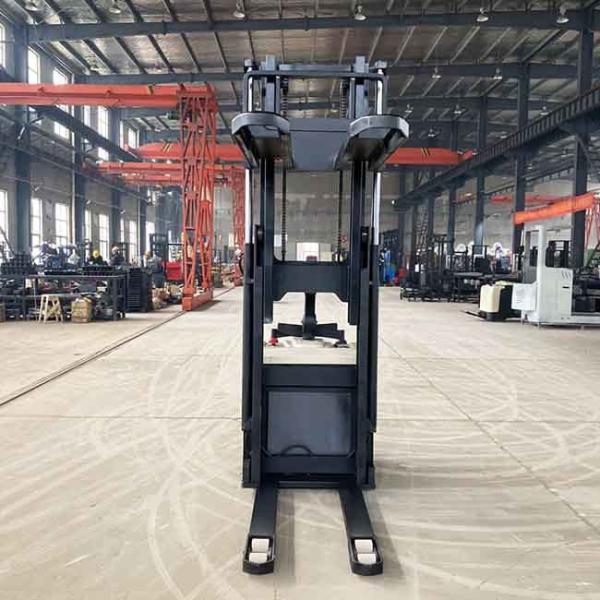

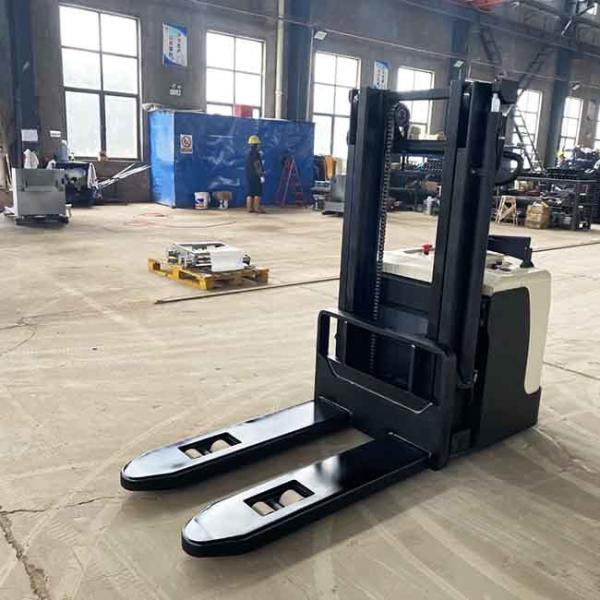

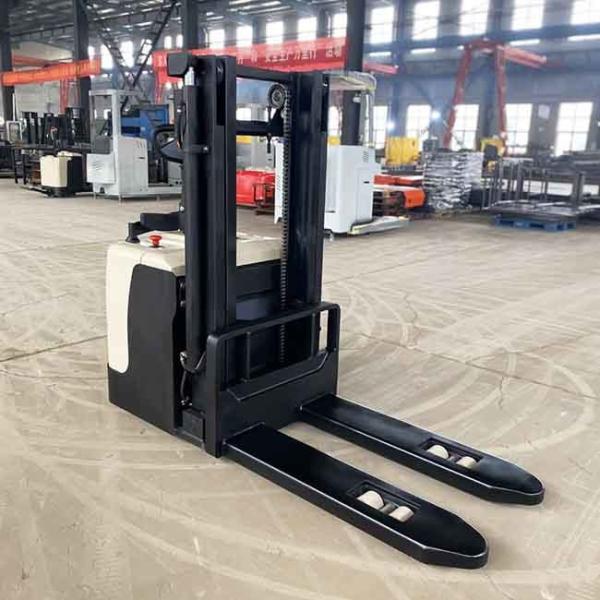

Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval
Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval
Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval
Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval
Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval
Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval
Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval
Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval
Specifications
Brand Name :
YEAWEY
Model Number :
CDD15-30
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
1.5T standing type electric forklift
Load capacity :
1500 kgs*600mm
Lift height :
3000mm mast
Mast type :
Duplex mast
Battery :
24V/205Ah
Service weight :
1115kgs
Description

2 stage 3m mast 1.5Ton electric stacker warehouse use standing type

Main information:
Chinese AC controller, AC motors
2*12V/80Ah lead acid battery forklift
Mast type: 2 stage mast
Lift height: 3000mm
Fork: 1200mm

YEAWEY electric stacker is more adoptable to complex ground and not easy to slip. The fixed balance wheel on both side enhances the stability and pass ability of the truck.

Driving wheel with pressure adjustable structure, is more practical for different application scenarios and vehicle weights.

Driving wheel floating technology, combined with foldable platform floating structure, makes the truck higher effective in shock absorption and more comfortable in operation.

Work in narrow place:
The whole vehicle is concise and agile, suitable for working in narrow spaces.

High quality battery:
Standard maintenance free lead-acid battery, optional (lithium iron phosphate battery, full load ramp up 10% high-power controller);

Item Model CDD15II-30
1 Power type Fully electric
2 Drive mode Standing Type
3 Load capacity Q(Kg) 1500
4 Load center C(mm) 500
5 Wheel base Y(mm) 1430
6 Self weight with battery kg 1115
7 Tire type Front/Rear Pu solid tire
8 Front tire size ∅×w(mm) Φ80x70
9 Rear tire size ∅×w(mm) Φ230x75
10 Track width, front wheels b2(mm) 490
11 Track width, rear wheels b3(mm) 658
12 Height-Mast Lowered h(mm) 2060
13 Lift Height h1(mm) 3000
14 Maximum height when fork is lifting h2(mm) 3541
15 Handle Height h5(mm) 1430
16 Min. Fork height h3(mm) 85
17 Overall length Pedal Closed/open L(mm) 2185/2605
18 Overall width b1(mm) 850
19 Fork size s/e/l(mm) 65/190/1150
20 Width over fork b5(mm) 680
21 Min ground clearance m2(mm) 30
22 Min. stacking aisle 1000*1200 pallet(1200 cross fork placement) Ast(mm) 2615
23 Min. stacking aisle 1000*1200 pallet(1200 placed along forks) Ast(mm) 3016
24 Min Turning Radius When Pedal Closed Wa(mm) 1729/2130
25 Max.walking speed km/h 5.5/5
26 Max. lifting speed m/s 0.1/0.09
27 Max. lowing speed m/s 0.082/0.115
28 GradeAbility ％ 8/6
29 Drive brake Electromagnetic
30 Drive motor kw 1.5
31 Lift motor kw 2.2
32 Battery type Lead acid battery
33 Battery capacity V/Ah 24/210
34 Charger V/A 24/30
35 DriveControllingType alternating current
36 The noise level in the driver's ear according to EN12053 dB(A) 75

Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS ApprovalDuplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS ApprovalDuplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS ApprovalDuplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS ApprovalDuplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval


Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval

Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval

Duplex Mast Electric Stacker Lift 1.5Ton Powered Stacker SGS Approval
