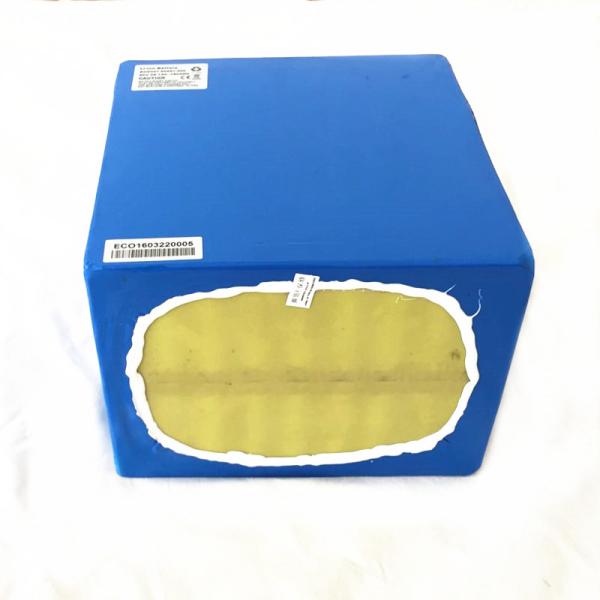

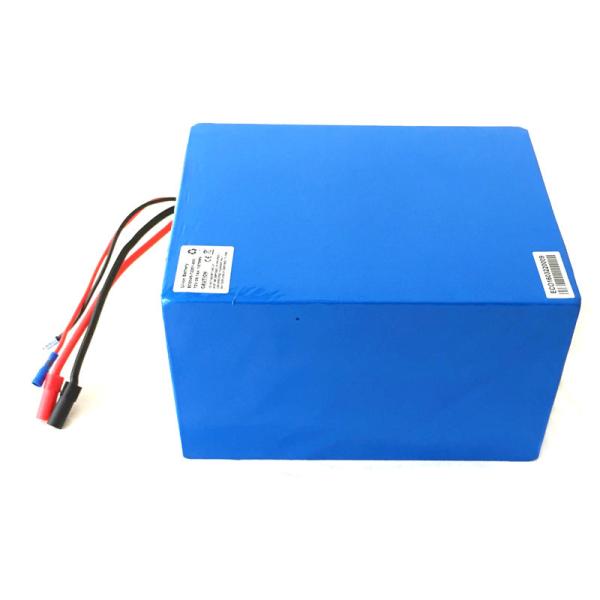

NC-037-1 panasonic cell 72v 26.1ah electric motorcyle lithium battery for 5000w enduro ebike
NC-037-1 panasonic cell 72v 26.1ah electric motorcyle lithium battery for 5000w enduro ebike
NC-037-1 panasonic cell 72v 26.1ah electric motorcyle lithium battery for 5000w enduro ebike
NC-037-1 panasonic cell 72v 26.1ah electric motorcyle lithium battery for 5000w enduro ebike
Specifications
Brand Name :
OEM
Model Number :
NC-037-1
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Paypal , Alibaba Trade assurance
Supply Ability :
2,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
carton box with foam, package size for one battery and one charger is 45x 28 x 28cm
battery material :
panasonic 18650PF
voltage :
72v
Rated capicaty :
26.1Ah
Pack size :
183mm x 134mm x 223mm
pack weight :
9.8kgs
cycle life :
1000 cycles
max current :
150Amp
continous current :
70Amp
Description

NC-037-1 panasonic cell 72v 26.1ah electric motorcyle lithium battery for 5000w enduro ebike

NC-037-1 panasonic cell 72v 26.1ah electric motorcyle lithium battery for 5000w enduro ebike

What is the specification of this battery?

Model NC-035-1 NC-036-1 NC-037-1
Battery Material

Lithium ion 18650

2200mah Samsung cell

Lithium ion 18650

2200mah Samsung cell l

Lithium ion 18650

2900mah cell

Panasonic NCR18650PF
Nominal Voltage 48V 48V 72V
Rated Capicaty 19.8Ah 28.6Ah 26.1Ah
Pack Dimension 185mm x 147mm x 135mm (mm) 183mm x 134mm x 223mm
Internal Impedance ≤100mΩ ≤100mΩ ≤150mΩ
Max Charge Voltage 54.6V 54.6V 84V
Max Charge Current 5A 5A 6A
Min Discharge Voltage 39V 39V 57V
Rated Discharge Current 35A 40A 70A
Max Discharge Current 65A 70A 150A
Charging Mode CC/CV CC/CV CC/CV
Pack Weight About 6kg About 8.5kg 9.3kg
Over Current Protection 65A±3A 30A±3A 150A±3A
Cycle Life 1200cycles 120cycles 1000cycles
Charge Temperature 0-45℃ 0-45℃ 0-45℃
Discharge Temperature -20-55℃ -20-55℃ -20-55℃
Certificates CE CE CE
Motor Max 1500w 1500W 5000W


NC-037-1 panasonic cell 72v 26.1ah electric motorcyle lithium battery for 5000w enduro ebike

What professional test of this battery has taken?

Test Name Details
Temperature & Humidity Test of single cell Imitate the storage of battery (Under temperature (-20℃-150℃) and humidity (20%-98% R.H.) to test the performance
Formation Test of single cell Capacity sort, charge, discharge and cycle life tests on single cell to ensure whole performances of single especially combined battery.
battery pack test Capacity sort, charge, discharge and cycle life tests on battery pack to know the performance.
Transit Test Imitate the real shipment condition to test the whole battery pack’s mechanical performance,as well as any accessories on the battery pack

NC-037-1 panasonic cell 72v 26.1ah electric motorcyle lithium battery for 5000w enduro ebike

l PRODUCT PACKING

  • Material : carton with foam

l Package size : 450mm *280mm *280mm

l Net weight : 9.8kgs

l Gross weight : 10kgs

NC-037-1 panasonic cell 72v 26.1ah electric motorcyle lithium battery for 5000w enduro ebikeNC-037-1 panasonic cell 72v 26.1ah electric motorcyle lithium battery for 5000w enduro ebike
