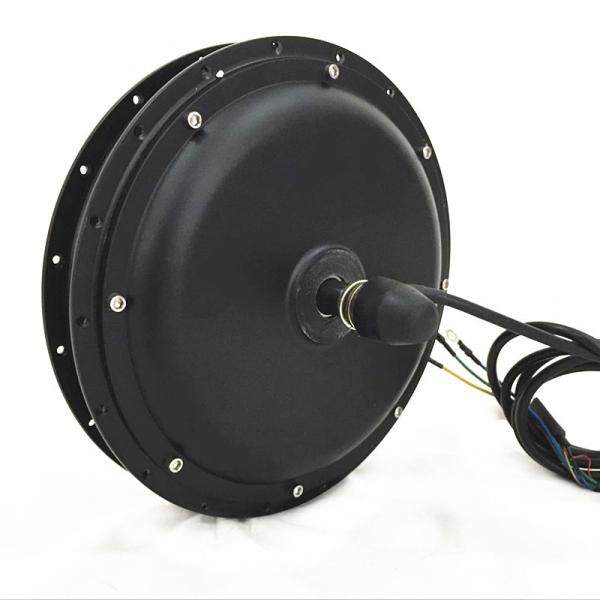

High Speed 1000w 48v Geared Brushless Dc Motor For Electric Bike Conversion Kits
High Speed 1000w 48v Geared Brushless Dc Motor For Electric Bike Conversion Kits
High Speed 1000w 48v Geared Brushless Dc Motor For Electric Bike Conversion Kits
High Speed 1000w 48v Geared Brushless Dc Motor For Electric Bike Conversion Kits
Specifications
Brand Name :
OEM
Model Number :
NC481000C
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Paypal , Alibaba Trade assurance
Supply Ability :
5,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
carton box with foam, package size : two motors in one box, the size is48cm x 28cm x 28cm
motor power :
1000watts
voltage :
48v
pack weight :
6.2kgs
magnet height :
30mm
windings :
11*5T
Casstte Fly :
8s,9s
Description

NC481000C CE brushless gearless dc 48v 1000w high speed 520RPM 16-28inch wheel size electric bike hub motor

High Speed 1000w 48v Geared Brushless Dc Motor For Electric Bike Conversion Kits

Model NC481000C
Motor power 1000w
Axle 10mm* 14mm
Casstte Fly 8s,9s
Voltage 48v
Magnet Height 30mm
Design Brushless gearless dc
Windings 11*5
Waterproof grade IP54
RPM/min 520
Cable size 2mm2
Max torque 40N.M
Max Efficiency >=88%
Open size 142mm
Wheel size 16-28inch
Hall sensor Optional
Hall sensor angle 120 degrees
Integrate speed sensor Optional
Brake Disc brake
Surface color dark black/ sliver white
Temperature sensor Yes
N.W 6.2kgs

Description for 48v 1000w ebike hub motor:

  • Low noise
  • Electricity saving, 89%
  • High torque, 40 N.M
  • High strength
  • High safety coefficient, high efficiency
  • Long service life
  • Not easy to be hot
  • Big power
  • Warranty : 2 years
  • OEM

The drawing for 1000w hub motor :

High Speed 1000w 48v Geared Brushless Dc Motor For Electric Bike Conversion Kits

High Speed 1000w 48v Geared Brushless Dc Motor For Electric Bike Conversion Kits

l PRODUCT PACKING

  • Material : carton with foam
  • package size : two motors in one box, the size is 48cm x 28cm x 28cm
  • gross weight : 13kgs.

High Speed 1000w 48v Geared Brushless Dc Motor For Electric Bike Conversion Kits

High Speed 1000w 48v Geared Brushless Dc Motor For Electric Bike Conversion Kits
