Most Powerful Electric Bike Kit With Battery , Electric Motors For Bicycles Conversion Kits
Most Powerful Electric Bike Kit With Battery , Electric Motors For Bicycles Conversion Kits
Most Powerful Electric Bike Kit With Battery , Electric Motors For Bicycles Conversion Kits
Most Powerful Electric Bike Kit With Battery , Electric Motors For Bicycles Conversion Kits
Most Powerful Electric Bike Kit With Battery , Electric Motors For Bicycles Conversion Kits
Most Powerful Electric Bike Kit With Battery , Electric Motors For Bicycles Conversion Kits
Specifications
Brand Name :
OEM
Model Number :
ENC48500
Certification :
CE
Place of Origin :
CHINA
MOQ :
20
Price :
Negotiable
Payment Terms :
T/T, Paypal , Alibaba Trade assurance
Supply Ability :
2,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
carton box with foam, package size : Package size and Gross weight 16": 40cm x 40cm x 25cm 20": 45cm x 45cm x 25cm 24": 55cm x 55cm x 25cm 26": 60cm x 60cm x 25cm 28" 700c, 29" : 65cm x 65cm x 25cm
motor power :
48v 500w
voltage :
48v
wheel size :
20" 22" 24" 26" 28" 29" 700
pack weight :
10.5 kgs
throttle type :
thumb throttle or twist throttle
controller :
smart 48v 22amp 9 mosfet
speed :
40km/h
warranty :
2years
Description

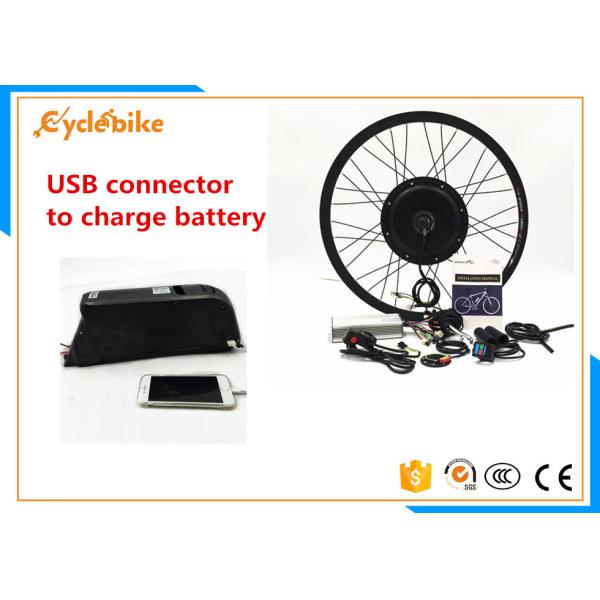

ENC48500 40km/h speed 48v 500w e-bike kit with 48v 10ah downtube lithium battery

Most Powerful Electric Bike Kit With Battery , Electric Motors For Bicycles Conversion Kits

Package content for 48v 500w ebike motor kit spec. details :

Motor : 36v 500w front or rear motor brushless gearless design.

Wheel size : 20" 22" 24" 26" 28" 29" 700c 28" aluminum alloy double wall design for choosing

Controller : 48v 22amp smart controller, temperature over heat protection, over current protection and so on.

Throttle : thumb throttle or twist throttle

Electric brake levers : wuxing brand

PAS : 8 magnet pas

Manual : book manual

Battery : 48v 10ah samsung cell brand lithium battery pack

Charger : 48v 2a charger, EU, USA,UK, AU plugs for choosing.

Spec. 40km/h max speed, 120kgs max loading

Package : carton box with form to stop moving

Color : black or sliver white

Package size :

16": 40cm x 40cm x 25cm
20": 45cm x 45cm x 25cm
24": 55cm x 55cm x 25cm
26": 60cm x 60cm x 25cm
28" 700c, 29" : 65cm x 65cm x 25cm


The 48v 10ah downtube lithium battery spec. details :

Model NC-020
Battery Material

Lithium ion 18650

2600mah cell

Samsung 26F
Nominal Voltage 48V
Rated Capicaty 10Ah
Pack Dimension (mm)
Internal Impedance ≤120mΩ
Max Charge Voltage 54.6V
Max Charge Current 2A
Min Discharge Voltage 39V
Rated Discharge Current 15A
Max Discharge Current 25A
Charging Mode CC/CV
Pack Weight About 3.9kg
Over Current Protection 30A±3A
Cycle Life 1000cycles
Charge Temperature 0-45℃
Discharge Temperature -20-55℃
Certificates CE
Motor Max 500w

Most Powerful Electric Bike Kit With Battery , Electric Motors For Bicycles Conversion Kits

The drawing of the 48v 500w brushless motor drawing photo :

The front motor drop out is 100mm, it can installed with disc brake or V brake .

The rear motor drop out is 135mm, it can installed with disc brake or V brake .

Most Powerful Electric Bike Kit With Battery , Electric Motors For Bicycles Conversion Kits

Most Powerful Electric Bike Kit With Battery , Electric Motors For Bicycles Conversion Kits
