High Speed Electric Motorized Bicycle Kit With Down Tube Battery
High Speed Electric Motorized Bicycle Kit With Down Tube Battery
High Speed Electric Motorized Bicycle Kit With Down Tube Battery
High Speed Electric Motorized Bicycle Kit With Down Tube Battery
High Speed Electric Motorized Bicycle Kit With Down Tube Battery
High Speed Electric Motorized Bicycle Kit With Down Tube Battery
Specifications
Brand Name :
OEM
Model Number :
ENC48500
Certification :
CE
Place of Origin :
CHINA
MOQ :
20
Price :
Negotiable
Payment Terms :
T/T, Paypal , Alibaba Trade assurance
Supply Ability :
2,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
carton box with foam, package size : Package size and Gross weight 16": 40cm x 40cm x 25cm 20": 45cm x 45cm x 25cm 24": 55cm x 55cm x 25cm 26": 60cm x 60cm x 25cm 28" 700c, 29" : 65cm x 65cm x 25cm
motor power :
48v 500w
voltage :
48v
wheel size :
20" 22" 24" 26" 28" 29" 700
pack weight :
10.5 kgs
throttle type :
thumb throttle or twist throttle
controller :
smart 48v 22amp 9 mosfet
speed :
40km/h
warranty :
2years
Description

ENC48500 CE approved 40km/h speed 48v 500w ebike motor wheel kit electric bike

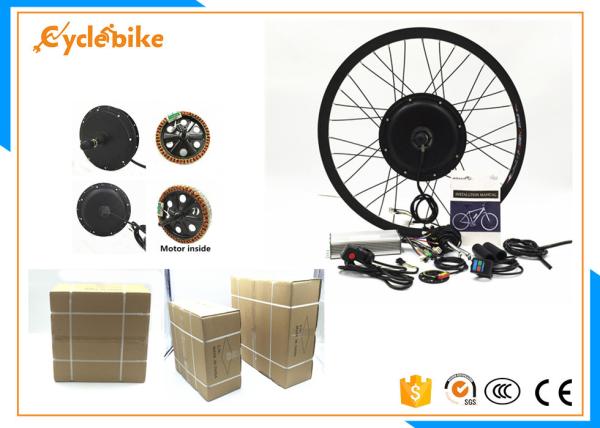

Package content for 48v 500w ebike motor kit spec. details :

Motor : 36v 500w front or rear motor brushless gearless design.

Wheel size : 20" 22" 24" 26" 28" 29" 700c 28" aluminum alloy double wall design for choosing

Controller : 48v 22amp smart controller, temperature over heat protection, over current protection and so on.

Throttle : thumb throttle or twist throttle

Electric brake levers : wuxing brand

PAS : 8 magnet pas

Manual : book manual

Spec. 40km/h max speed, 120kgs max loading

Package : carton box with form to stop moving

Color : black or sliver white

Package size :

16": 40cm x 40cm x 25cm
20": 45cm x 45cm x 25cm
24": 55cm x 55cm x 25cm
26": 60cm x 60cm x 25cm
28" 700c, 29" : 65cm x 65cm x 25cm


High Speed Electric Motorized Bicycle Kit With Down Tube Battery

High Speed Electric Motorized Bicycle Kit With Down Tube Battery

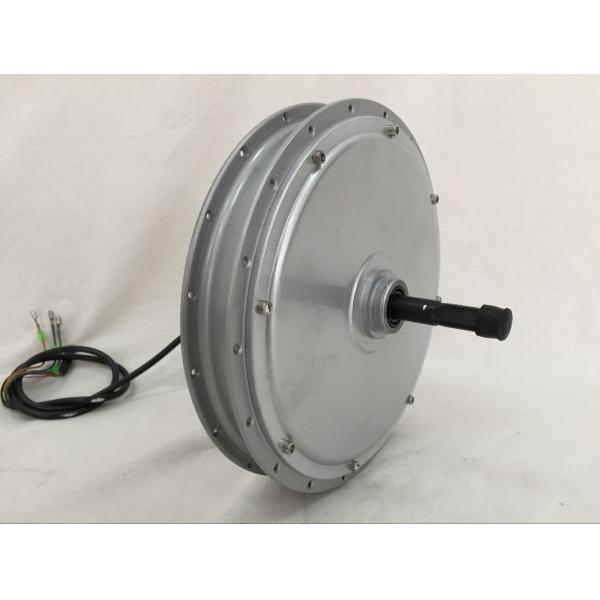

The drawing of the 48v 500w brushless motor drawing photo :

The front motor drop out is 100mm, it can installed with disc brake or V brake .

The rear motor drop out is 135mm, it can installed with disc brake or V brake .

High Speed Electric Motorized Bicycle Kit With Down Tube Battery

High Speed Electric Motorized Bicycle Kit With Down Tube Battery
