3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike
3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike
3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike
3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike
3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike
3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike
3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike
3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike
Specifications
Brand Name :
OEM
Model Number :
NC3000
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Paypal , Alibaba Trade assurance
Supply Ability :
2,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
carton box with foam, package size : two motors in one box, the size is48cm x 28cm x 28cm
motor power :
3000watts
voltage :
48v-96v
max phase current :
200Amp
pack weight :
9.8kgs
magnet height :
45mm
max torque :
190N.M
drop out :
149mm
temperature :
KTY82/122
Description

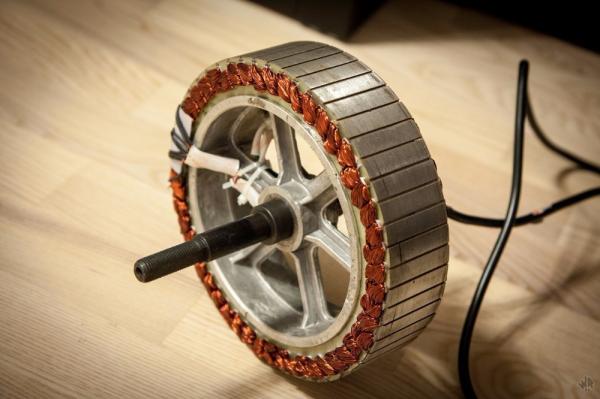

NC3000 7speed 3000w ebike hub motor 45H magnet aluminum stator with temperature sensor

3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike

The 3000w ebike hub motor spec. details :

Model NC3000
Motor power 3000w
Axle 10mm* 16mm
motor diameter 244mm
Voltage 48v-96v
Magnet Height 45mm
stator aluminum alloy
windings 860rpm @72v, 21x3T
waterproof grade IP54
numbers of pole pairs 23
peak phase current 200amp
Max torque > 110N.m
Max Efficiency 89.80%
drop out 149mm
Numbers of Motor phase 3 pcs
Hall sensor 2 sets, one is for spare
hall sensor phasing 120 degrees
cross section of phase wire 10mm2
temperature sensor KTY82/122
color dark black
N.W 9.8kgs

Description for 3000w ebike hub motor:

  • Low noise
  • Electricity saving, 89%
  • High torque, 190N.M
  • High strength
  • High safety coefficient, high efficiency
  • Long service life
  • Not easy to be hot
  • Big power
  • Warranty : 2 years
  • OEM

The drawing for 3000w hub motor :

3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike

l PRODUCT PACKING

  • Material : carton with foam
  • package size : two motors in one box, the size is 48cm x 28cm x 28cm
  • gross weight : 18kgs.

3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike

3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike
