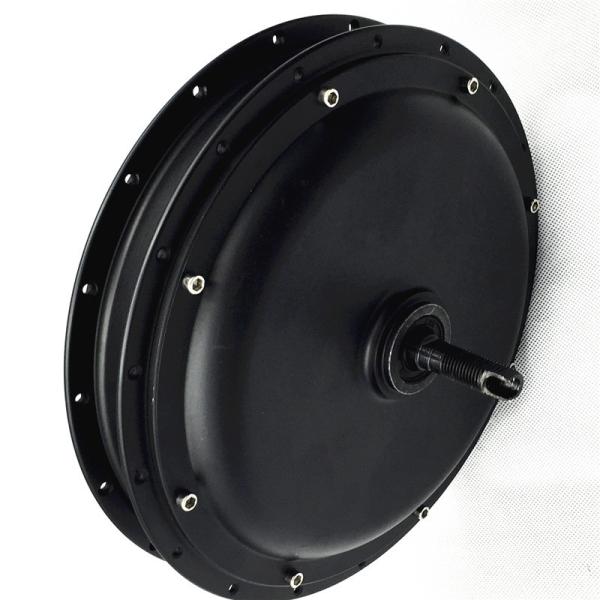

Brushless Gearless Dc 48v 500w Electric Bike Hub For Bicycle , IP54 Waterproof Grade
Brushless Gearless Dc 48v 500w Electric Bike Hub For Bicycle , IP54 Waterproof Grade
Brushless Gearless Dc 48v 500w Electric Bike Hub For Bicycle , IP54 Waterproof Grade
Brushless Gearless Dc 48v 500w Electric Bike Hub For Bicycle , IP54 Waterproof Grade
Brushless Gearless Dc 48v 500w Electric Bike Hub For Bicycle , IP54 Waterproof Grade
Brushless Gearless Dc 48v 500w Electric Bike Hub For Bicycle , IP54 Waterproof Grade
Specifications
Brand Name :
OEM
Model Number :
NC48500
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Paypal , Alibaba Trade assurance
Supply Ability :
5,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
carton box with foam, package size : two motors in one box, the size is48cm x 28cm x 28cm
motor power :
500watts
voltage :
48v
pack weight :
5.6kgs
magnet height :
24mm
windings :
8*7T
drop out :
100mm or 135mm
Description

NC48500 40km/h speed ebike motor 48v 500w brushless gearless dc motor front or rear motor

Model NC48500
Motor power 500w
Axle 10mm* 14mm
Type Front or rear motor to choose
Voltage 48v
Magnet Height 24mm
Design Brushless gearless dc
Windings 8*7
Waterproof grade IP54
RPM/min 470
Cable size 1.5mm2
Max torque 32N.M
Max Efficiency >=86%
Open size 100mm for front motor, 135mm for rear motor
Wheel size 16-28inch
Hall sensor Optional
Hall sensor angle 120 degrees
Integrate speed sensor Optional
Brake Disc brake
Surface color dark black/ sliver white
N.W 5.6kgs

Brushless Gearless Dc 48v 500w Electric Bike Hub For Bicycle , IP54 Waterproof Grade

Description for 48v 500w ebike hub motor:

  • cheaper price
  • brushless gearless design
  • Electricity saving, 88%
  • High torque, 30 N.M
  • Long service life
  • suitable for 20"-29" wheels
  • Warranty : 2 years
  • OEM

The drawing for 500w hub motor :

Brushless Gearless Dc 48v 500w Electric Bike Hub For Bicycle , IP54 Waterproof GradeBrushless Gearless Dc 48v 500w Electric Bike Hub For Bicycle , IP54 Waterproof Grade

l PRODUCT PACKING

  • Material : carton with foam
  • package size : two motors in one box, the size is 48cm x 28cm x 28cm
  • gross weight : 13kgs.

Brushless Gearless Dc 48v 500w Electric Bike Hub For Bicycle , IP54 Waterproof Grade
