Most Powerful Small E Bike Front Hub Motor 36v 500w Long Life Span
Most Powerful Small E Bike Front Hub Motor 36v 500w Long Life Span
Most Powerful Small E Bike Front Hub Motor 36v 500w Long Life Span
Most Powerful Small E Bike Front Hub Motor 36v 500w Long Life Span
Specifications
Brand Name :
OEM
Model Number :
NC36500B
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Paypal , Alibaba Trade assurance
Supply Ability :
5,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
carton box with foam, package size : two motors in one box, the size is 48cm x 28cm x 28cm
motor power :
500watts
voltage :
36v
pack weight :
4kgs
drop out :
135mm
color :
sliver white or black
speed :
350rpm
Description

NC36500 35km/h speed BPM 36v 500w electric bicycle motor brushless geared motor

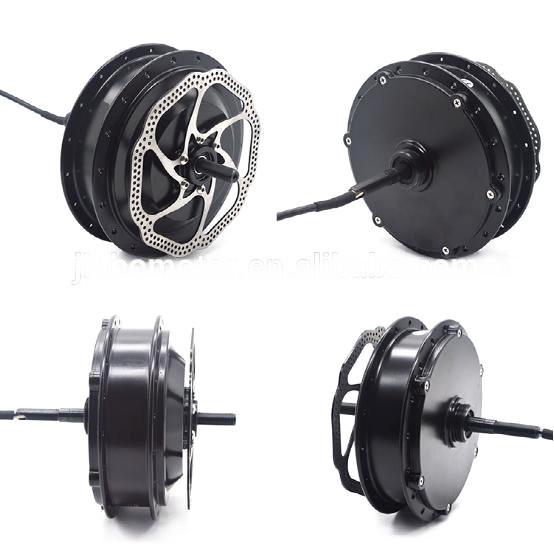

The 36v 500w geared motor drawing photos :

The BPM 36v 500w electirc bike hub geared motor spec. details :

The big torque 50N.M for geared motor 500watts .

Model NC36500B
Motor power 500w
Axle 10mm* 14mm
Type rear motor to choose
Voltage 36v
Design Brushless gearled dc
Waterproof grade IP54
RPM/min 360
Cable size 1.5mm2
Max torque 50N.M
Max Efficiency >=88%
Open size 100mm for front motor, 135mm for rear motor
Wheel size 16-28inch
Hall sensor Optional
Hall sensor angle 120 degrees
Integrate speed sensor Optional
Brake Disc brake
Surface color dark black/ sliver white
N.W 4kgs

Most Powerful Small E Bike Front Hub Motor 36v 500w Long Life Span

Most Powerful Small E Bike Front Hub Motor 36v 500w Long Life Span

Description for 36v 500w BPM geared hub motor:

  • cheaper price
  • brushless gearless design
  • Electricity saving, 88%
  • High torque, 50 N.M
  • Long service life
  • suitable for 20"-29" wheels
  • Warranty : 2 years
  • OEM

l PRODUCT PACKING

  • Material : carton with foam
  • Packing size:About 43*28*28 ,one carton include 2psc
    Packing weight:about 13kg"

Most Powerful Small E Bike Front Hub Motor 36v 500w Long Life Span
