48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
Specifications
Brand Name :
NC
Model Number :
enc3000
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
usd 445 pc
Supply Ability :
500 pc week
Delivery Time :
7-15 working days
Packaging Details :
carton with foam
Motor :
48v 3000w brushless gearless hub motor
Speed :
25-70km/h
controller :
72v60A
throttle :
Twist throttle
PAS :
1:1 Pedal Assistant System
Brake lever :
electric brake levers
display :
TFT LCD
tire :
with or without
lithium　battery :
48v 26ah lithium battery
Description

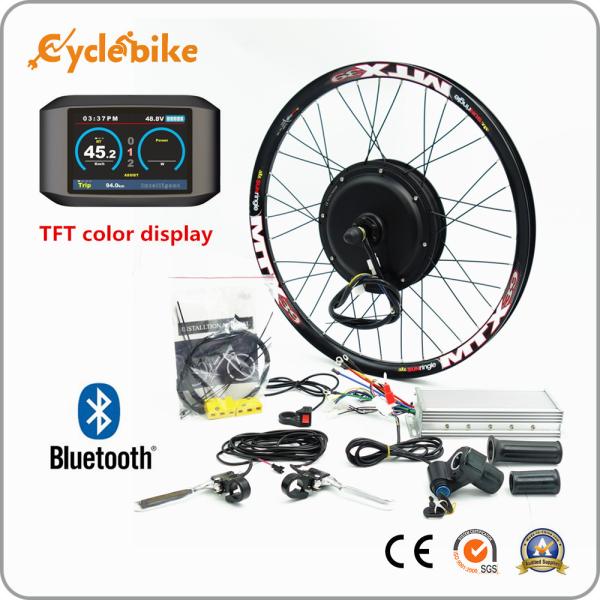

48v /72v 3000W Electric Bike Hub Motor Conversion kit with TFT color display

48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel

Description :

This is 72 v programmable controller ebike kit , this wheel use Sunring sim , Sabvoton controller , regen braking system and so on . 48v 3000w ebike kit for enduro ebike and motorcycle kit .

1 x the 3000w DC motor with double hall sensor (150mm dropout, suitable for bicycle disc brake and single 16tooth freewheel for bicycle chain),

1 x MTX Sun Ringle bicycle rim

1 x 60A Sabovoton controller ( 18 MOZ Tube in it)

1 x Throttle,

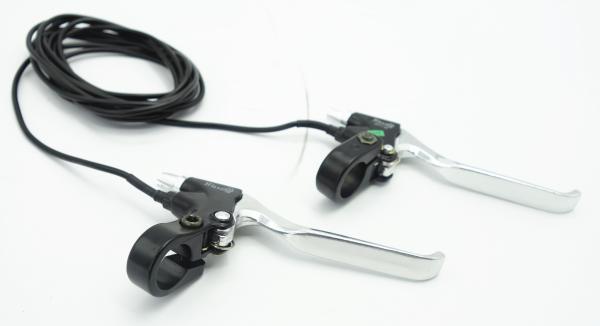

1 x brake lever,

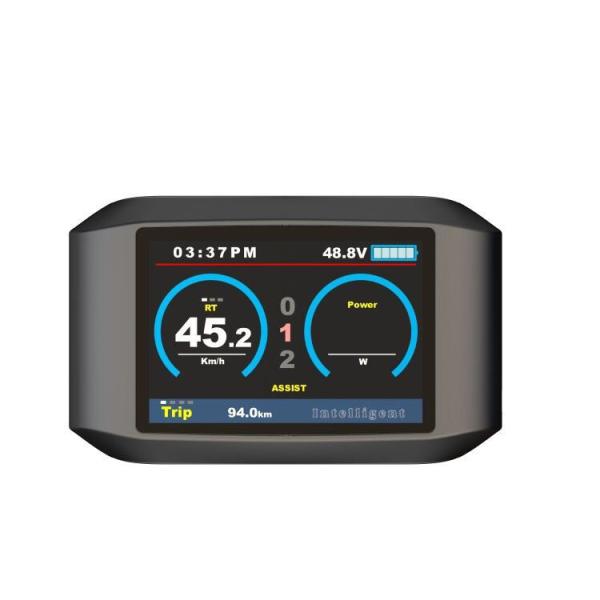

1 x TFT LCD display with 3.2" high contrast color screen

TFT color display

48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel

3000w hub motor picture

48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel

Motor power 3000w
Axle 10mm* 16mm
Type Rear motor only
Voltage 72v
Magnet Height 45mm
Design Brushless gearless
Windings 21*3
Waterproof grade IP54
RPM 860
Number of pole pairs 23
Peak phase current 190A
Cable size 6mm2
Max torque 110N.M
Max Efficiency 85%
Open size 150mm for rear motor only
Wheel size 16-28inch
Hall sensor Yes
Hall sensor angle 120 degrees
Integrate speed sensor Optional
Brake Disc brake
Surface color Dark black
N.W 8.9kgs
Warranty 2 years
Delivery time 7 days for sample ,15-35 days for bulk order depends on quantity

Throttle type : twist throttle with 3 speed , lock and power dispaly

48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel

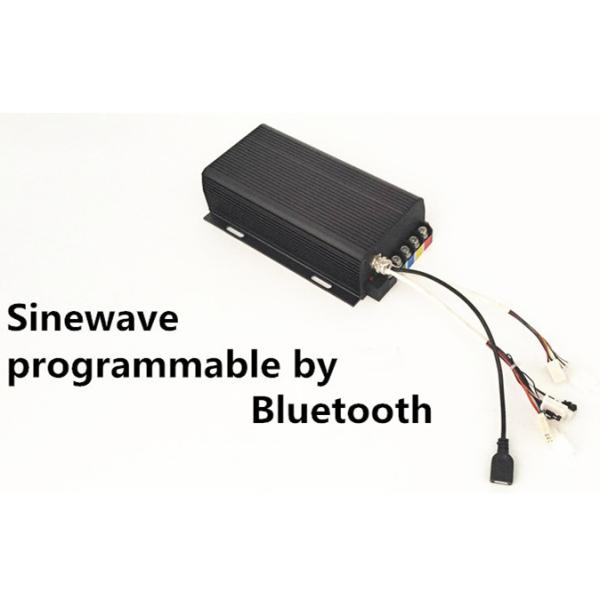

48v-72v 60amp smart controller ,18mosfet with sine wave system, Cables’ Function :
Hall sensor, 3 phase,Throttle,Three speed,Battery Indicator,EBS brake, Regen.Brake,Cruise ,Connector for Cycle Analyst.

48V / 72v 3KW Hub Motor Electric Bike Kit , TFT LCD Disc Brake Rear Wheel
