TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26 28 29
TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26 28 29
TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26 28 29
TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26 28 29
TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26 28 29
TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26 28 29
TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26 28 29
TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26 28 29
TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26 28 29
TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26 28 29
Specifications
Brand Name :
NC
Model Number :
NC723000W
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,, Western Union,Paypal
Supply Ability :
2000sets/month
Delivery Time :
7-15 working days
Packaging Details :
Material : Protection foam and export carton
Voltage :
72v
Power :
3000w
Max speed :
70km/h
Controller :
Programmable Sabvoton controller
Torque :
110N.m
Alex :
10mmx16mm
Display :
TFT display
Cable :
All waterproof
Rim :
Mtx 26" 28" 29" or 18" 19" 21"
Warranty :
2 years
Description

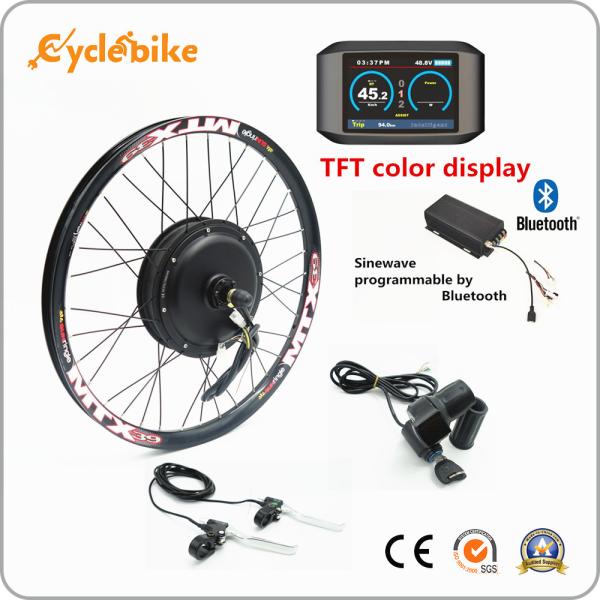

New TFT colour display 72v 3000w electric bike conversion kit:

1.Our kit include the following parts:

1
New TFT LCD colour display with 3.2" high clear color screen
2
48v-72v 3000w rear hub motor brushless gearless design,70km/h high speed
3
MTX33/39 Sun Ringle bicycle rim+motorcycle rim
4
48v-72v 60amp Sabvoton controller ,sine wave,programmable,regenerative braking.
5
Throttle
6
Brake lever

TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26

2.Detailed images and specification:

1.48v-72v 3000w ebike motor with rim

1.1)Motor voltage:48v -72v 3000w

2)Motor Power:3000w

3)Alex:10mmx16mm

4)RPM:860

5)Magnet Height:45mm

6)Wings:21x3

7)Max speed:70km/h

8)Max torque:110N.m

6)Open size:150mm

2)MTX sun ringles rim

24'', 26'', 700c, 29'' for bicycle rim,18",19",21" for motorcycle rim.

TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26

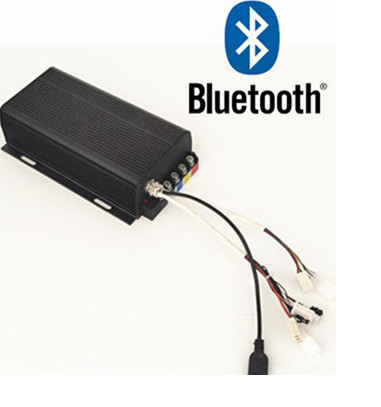

2.48v-72v 60A Sabvoton controller:

48v-72v 60amp smart controller ,18mosfet with sine wave system, Cables’ Function :

Hall sensor, 3 phase,Throttle,Three speed,Battery Indicator,EBS brake, Regen.Brake,Cruise ,Connector for our new TFT display.

New function:1.Bluetooth.

2.And can be programmabled by mobile phone.

Size:14.6x6.2x21.2cm very light,about 2.35kgs.

TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26

3.Throttle for 3000w ebike conversion kit:


Twist throttle with 3 speed , lock and battery voltage dispaly:

TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26

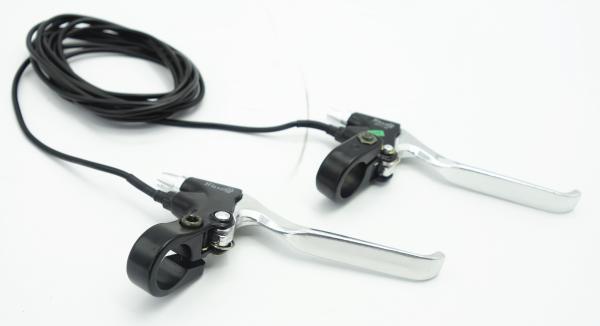

4.Electric brake lever:

The WuXing aluminum brake levers supplied contain micro switches that cut the power to the motor when applied. These levers are compatible with both disk and v-brakes.

TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26

5.New TFT colour display:

3.2" high contrast color screen shows battery power level, time, speed, mileage, gear, input power. Components error checking and report.

TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26

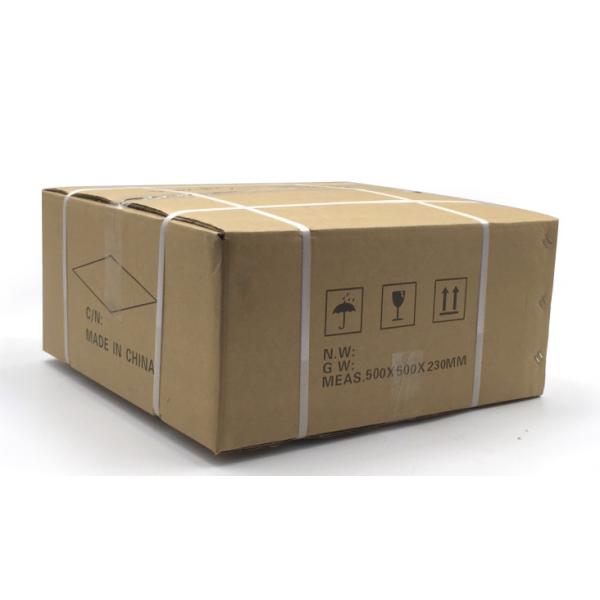

3.Packing for 72v 3000w ebike conversion kit:

TFT Colour Display 72v 3000w Electric Bike Kit Rim Mtx 26
