Specifications
Brand Name :
NC
Model Number :
Nc4000
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
435-485/SET
Payment Terms :
L/C.T/T .PAYPAL
Supply Ability :
2000set /month
Delivery Time :
7 working days
Packaging Details :
carton with foma
Brand name :
QS motor
Item Height :
34
Material Type :
aluminum
Placement on Vehicle :
rear hub motor
Max. speed :
45-90KPH
Efficiency :
>87%
Design :
BLDC PMSM Hub Motor
color :
black
water proof :
IP54
Description

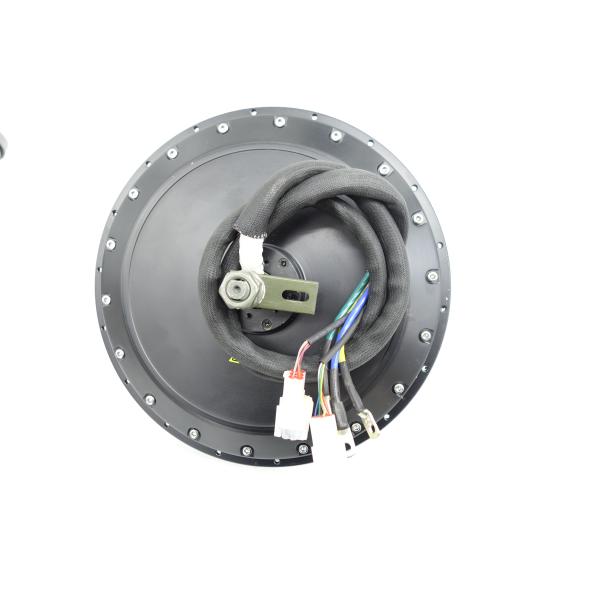

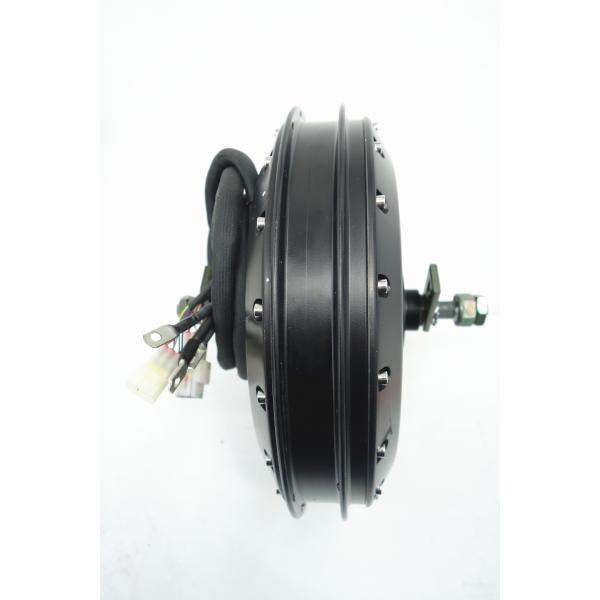

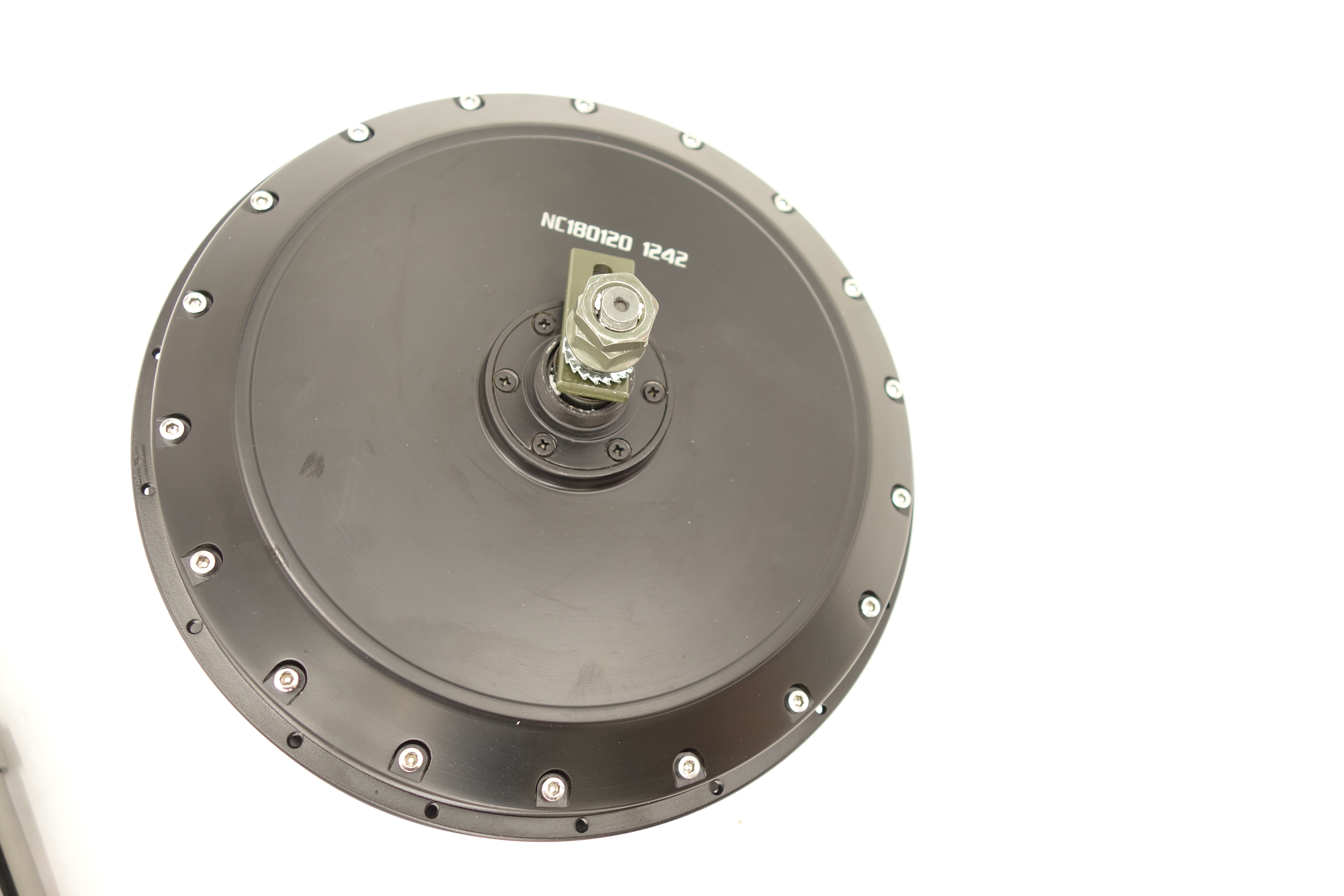

QS Motor 273 Bicycle Hub Motor 4000W V3 100KPH For Electric Bicycle

1. Generally SPEC for 273 Bicycle Hub Motor 4000W V3 hub motor

Motor Type BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand QS Motor,QSMOTOR
Motor Design Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
Matching Rim size 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.
Magnet Height 40mm, 16 pole pairs
Stator Aluminmum Core
Rated Power 4000W
Rated Voltage80KPH as default (24-120KPH, optional) 72V as default (48V-96V, optional)
Speed 80KPH as default (24-120KPH, optional)

Hall Sensor Phasing angle

120 degree

KV 11.46/12.46/13.54/15.69/17.71etc.
Max Torque approx 182N.m
Max Efficiency 86-91%
Working Temperature 70-120℃ , peak 150 ℃
Drop-outs/Rear Fork Width for installation 155mm

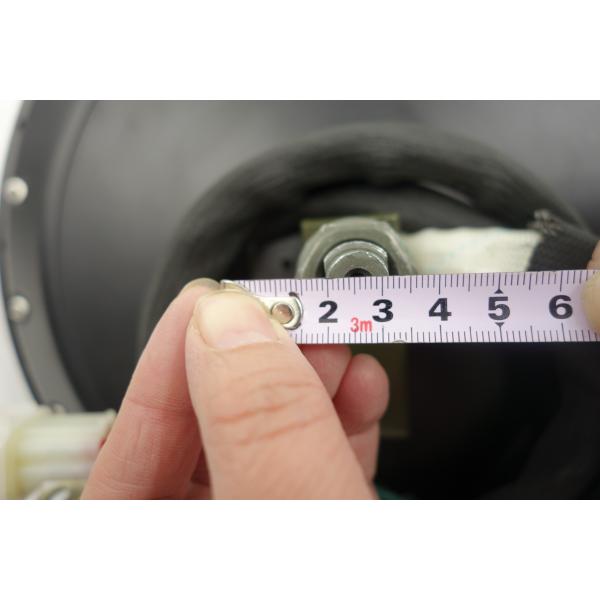

2. Alex Length

Water Proof Aluminum Electric Bike Hub Motor Rear 4000W V3 100KPH

Water Proof Aluminum Electric Bike Hub Motor Rear 4000W V3 100KPH

Water Proof Aluminum Electric Bike Hub Motor Rear 4000W V3 100KPH

Water Proof Aluminum Electric Bike Hub Motor Rear 4000W V3 100KPH

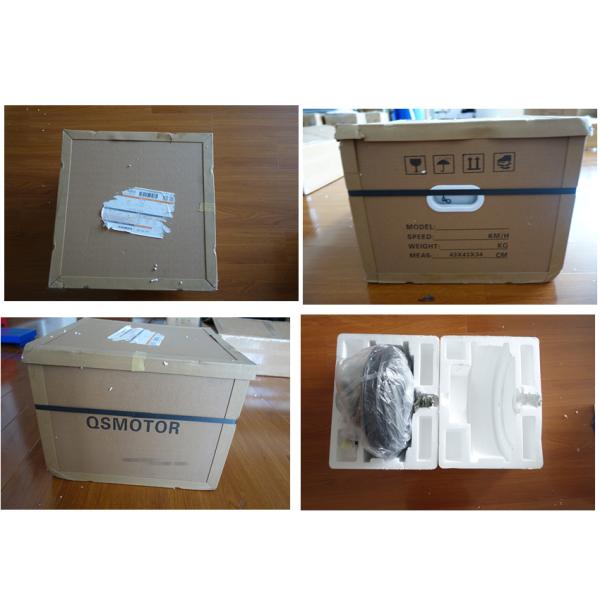

3. Packing

Water Proof Aluminum Electric Bike Hub Motor Rear 4000W V3 100KPH

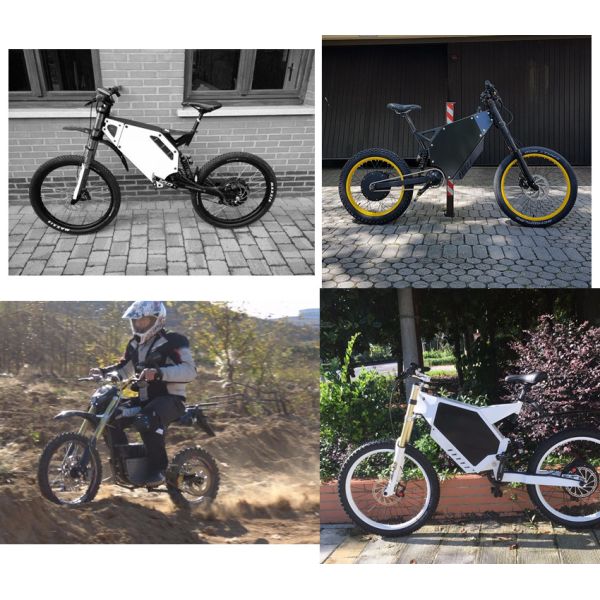

4. Application for the hub motor

Water Proof Aluminum Electric Bike Hub Motor Rear 4000W V3 100KPH
