Specifications
Brand Name :
NC
Model Number :
NCBT
Certification :
CE
Place of Origin :
CHINA
MOQ :
5pcs
Price :
usd 95 pcs
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000pcs week
Packaging Details :
carton with foam
MOTOR :
1000W brushless gearless
Speed :
40--55km/h
brake :
electric brake levers
rim :
24'',26'',700C,29''
color :
black or white
display :

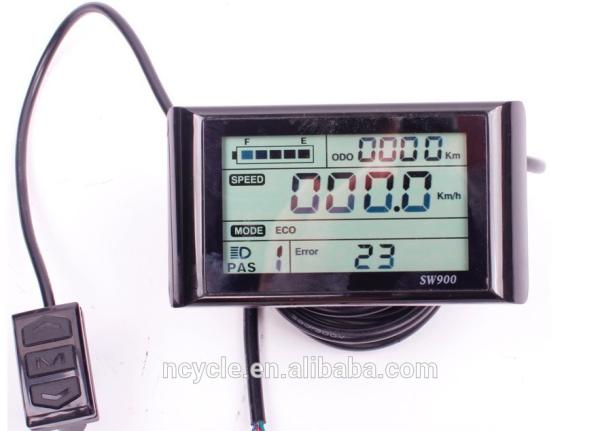

sW900 color display
warranty :
motor 24months
PAS :
1:1 Pedal Assistant System
battery :
48v13ah lithium battery
controller :
built in the motor
Description

26 Inch Mtx Rear Wheel Electric Bike Kit 48v 1000w Cycling Motor , Bicycle Electric Conversion Kit

Description

Teatures of 48v1000w Ebike kit with built-in controller:

1. All waterproof connectors, use longer life

2.Controller is built in the motor, which is more convenient , beauty and smaller space.

3.Aluminum alloy stator motor , light weight

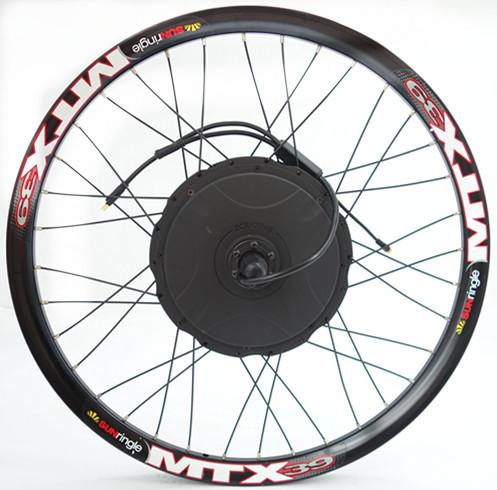

4. MTX33/39 Sun ringle (USA brand )double-wall rim with spokes,

MTX 39 :24''and 26inch

MTX 33: 29inch / 700c

26 Inch Mtx Rear Wheel Electric Bike Kit 48v 1000w Cycling Motor , Bicycle Electric Conversion Kit

48v1000w electric bike kit including :

Package Includes:

· 1* Powerful 100W 48V brushless hub motor

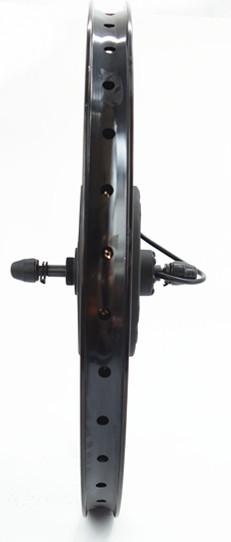

· 1* 26" rear wheel (the whole wheel without tire!)

· 1*Electric controller

· 2*electric brake lever

· 1* thumb throttles or twist throttle

· 1* PAS

· 1* Manual

Kindly Notice:

· optional 1:LCD or LED display

· optional 2:torque arm , water proof cable , 12 magnet pas , Shimano hydraulic disc brakes, freewheel

· Battery not included, if you need , we can provide 13ah , 14 ah , 17ah and 20ah lithium battery

specification :

Product name 48v 1000w motor
Certificate CE for EN15194
Motor power 1000w
Axle 10mm* 14mm
Type Front or rear motor to choose
Voltage 48v
Magnet Height 30mm
Design Brushless gearless dc
Windings 11*5
Waterproof grade IP54
RPM 520
Cable size 2mm2
Max torque 40N.M
Max Efficiency >=88%
Open size 100mm for front motor, 135mm for rear motor
Wheel size 16-28inch
Hall sensor Yes
Hall sensor angle 120 degrees
Integrate speed sensor Optional
Brake Disc brake
Surface color Dark black/ sliver white
Temperature sensor Yes
N.W 6.2kgs
Warranty 2 years

Water proof ebike kit , the controller built in the motor . NC154 style ebike kit

26 Inch Mtx Rear Wheel Electric Bike Kit 48v 1000w Cycling Motor , Bicycle Electric Conversion Kit

26 Inch Mtx Rear Wheel Electric Bike Kit 48v 1000w Cycling Motor , Bicycle Electric Conversion Kit
