Waterproof Electric Bike Kit Motorized Bicycle Rear Wheel With Lcd Display
1.Product description:
Do you want to own a very cool electric power moped, so that you can go for a joy ride around town effortlessly? Do you worry about how much a high performance moped will cost you? We are introducing a Brand waterproof 48V 1000W electric bicycle conversion kit china with LCD display which meets your requirement of converting your bike to an electric powered scooter/moped for a much more reasonable price.



2.Detail show:

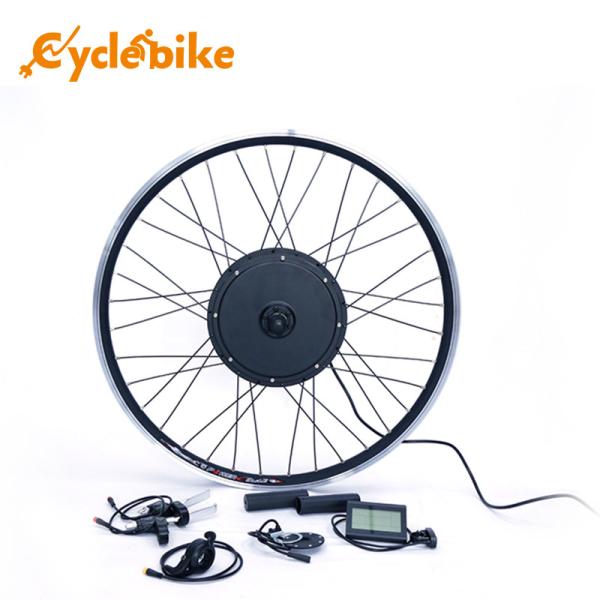

1.48V 1000W Electric Bicycle cheap Bike Conversion motor Kits Parts 1000w E-Cycle Kit including :
1. Motor: 48V 1000W brushless gearless rear motor with waterproof connectors
2. Wheel Size: MTX33/39 Sun ringle double-wall rim with spokes
3. Controller : 48V 26amp smart controller
4. Throttle: Throttle thumb or twist throttle with on/off switch and battery indicator with waterproof connectors
5. Electric Brake Levers with waterproof connectors
6.LCD3 display with waterproof connectors
7. Pas: 1: 1 Assistant pedal with waterproof connectors
8.Disc brake
9. Manual: manual Book, ties
10. Good package with foam


2.Specifications of waterproof 48V 1000W electric bicycle conversion kit china with LCD display:

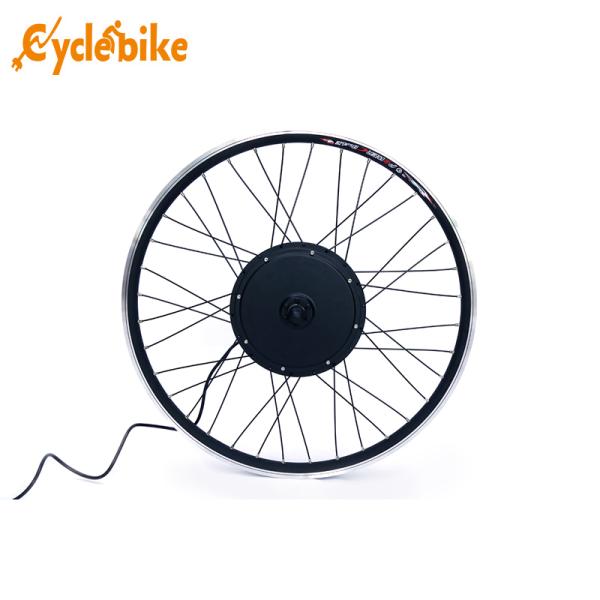

1)48v 1000w electric motor wheel for waterproof 48V 1000W electric bicycle conversion kit china with LCD display:
#1:Power and wheel:48V 1000W front or rear brushless gearless motor with 16" to 28",700c rim wheel
#2:Out wire:2mm2 wire bear 35-40amp current according to the Temperature
#3:Speed:400-500rpm/min.It is about 50kph with 26" bicycle
#4:Loading:150kgs
#5:Torque:30N.M
#6:Efficiency:82%
#7:Magnet:30H new magnet
#8:Hall sensor:Yes
#9:Temperature sensor:we will do it for you want.

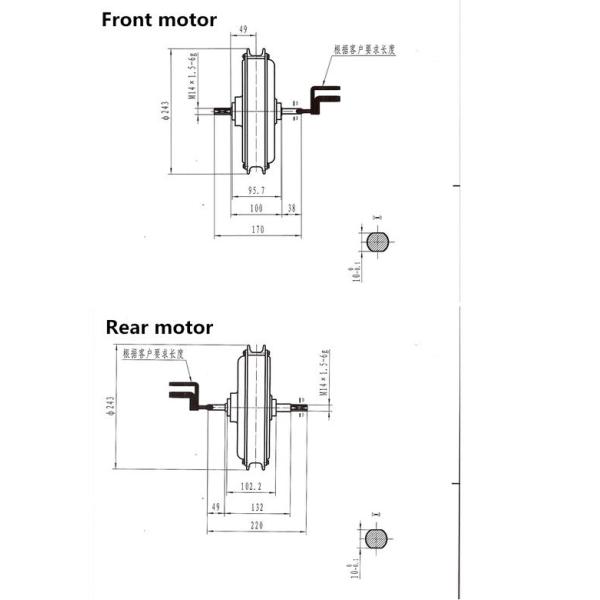

Drawing of the 48v 1000w front and rear motor:

2)Smart Controller for waterproof 48V 1000W electric bicycle conversion kit china with LCD display:

3)Throttle forwaterproof 48V 1000W electric bicycle conversion kit china with LCD display:

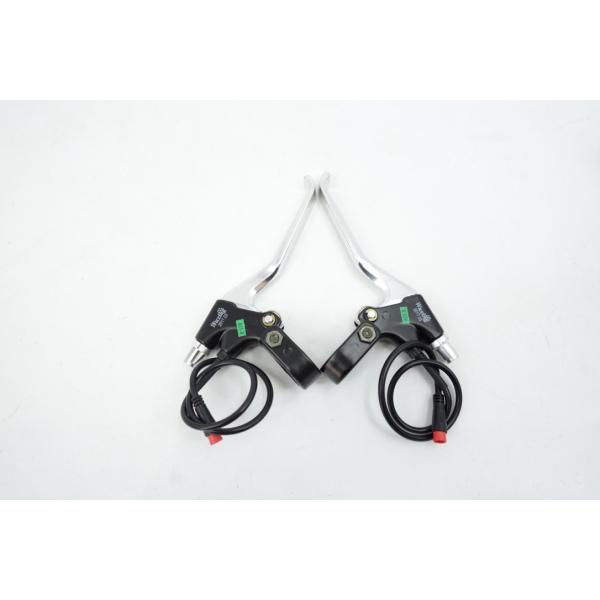

4)Brake lever for waterproof 48V 1000W electric bicycle conversion kit china with LCD display :


5)LCD display 3 for waterproof 48V 1000W electric bicycle conversion kit china with LCD display :

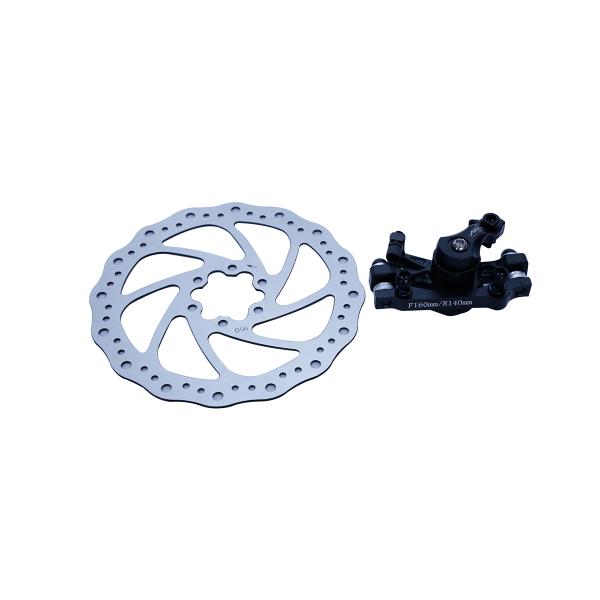

6)Disc brake for waterproof 48V 1000W electric bicycle conversion kit china with LCD display:

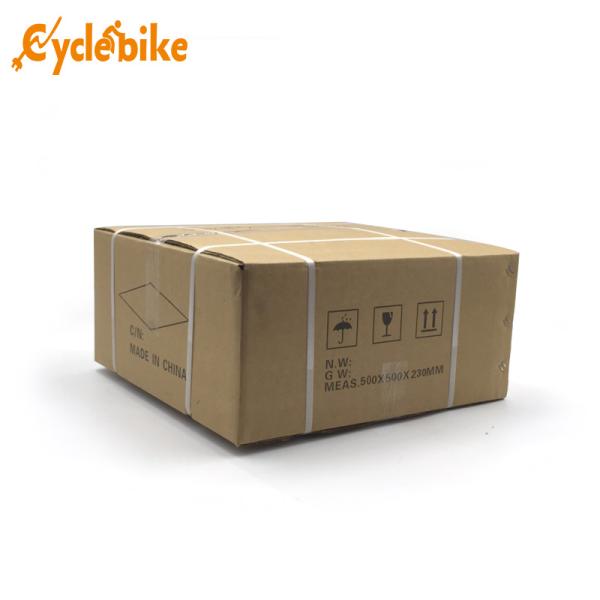

3.Packing:
