Specifications
Brand Name :
GPRO
Model Number :
GP206DCT
Certification :
CE, ISO
Place of Origin :
China, Wuxi
MOQ :
1 sets
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
400 sets
Delivery Time :
30 days
Packaging Details :
ply wooden case, plastic
Cooling System :
Water cooled
Fuel Tank :
8 hours running
Speed Govern :
Electronic
Speed :
1500rpm
Conditions Of Use :
Land Use
Description

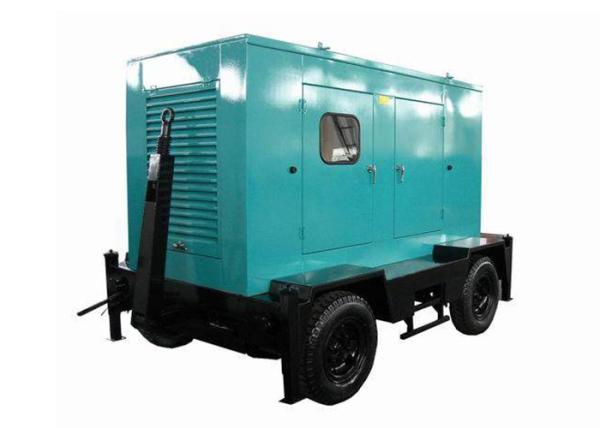

150KW 188KVA Trailer Type Cummins Diesel Generators With Movable Wheels

Technical specification
Genset Model GP206DCT
Prime Power 150KW/188KVA
Standby Power 165KW/206KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 271A
Genset Structure SILENT
Dimension 3400×1280×1785mm
Net Weight 2400KG
Noise level 75dB at 7 meters
Fuel Tank Capacity 240L
Engine Model 6CTA8.3-G2
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 114mm × 135mm
Displacement 8.3L
12-hour Power(kw) 163KW/1500
Fuel Consumption L/H 39.7L/H
Compression Ratio 17.3:1
Governor type ELECTIC
Alternator Model STAMFORD /UCI274H
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Smartgen 6110 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator

150KW 188KVA Trailer Type Cummins Diesel Generators With Movable Wheels

There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.

ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card

Optional supply scope:
1.ATS

2.SynchronizationSystem

3.External daily fuel tank

4.Silent Canopy

5.Trailer

6.Auto Fuel Pump

7.Fuel and Water Separator

8.Lub Oil Heater

9.Coolant Heater

10.Fuel Drain Pump

Advantages:

. We are a powerful and unity sales team:

. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.

Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours

If have any questions, please contact us. Your inquiry would be appreciated.
