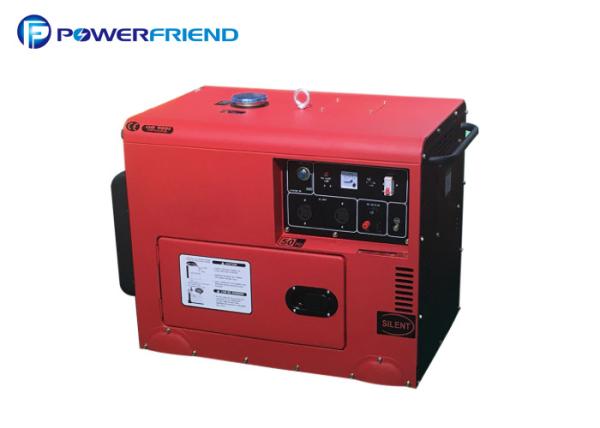

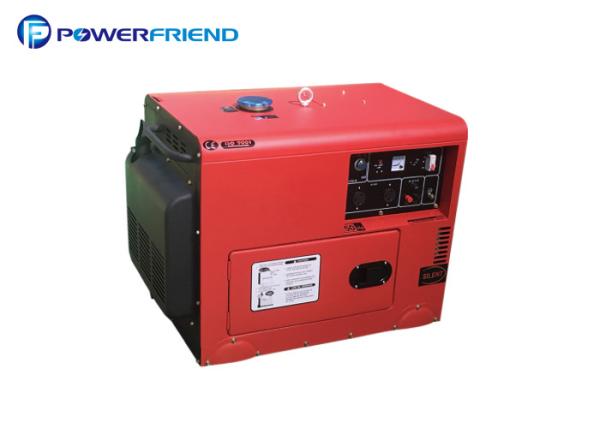

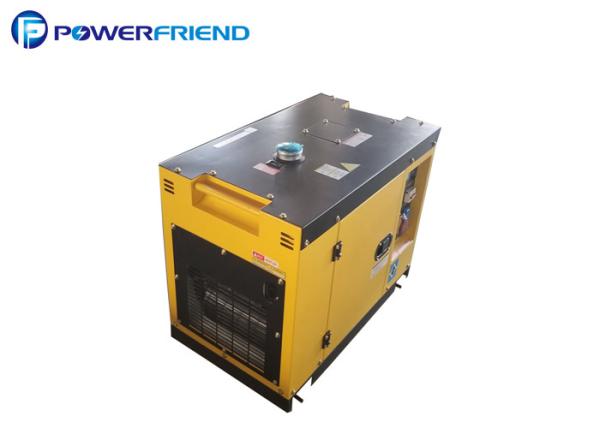

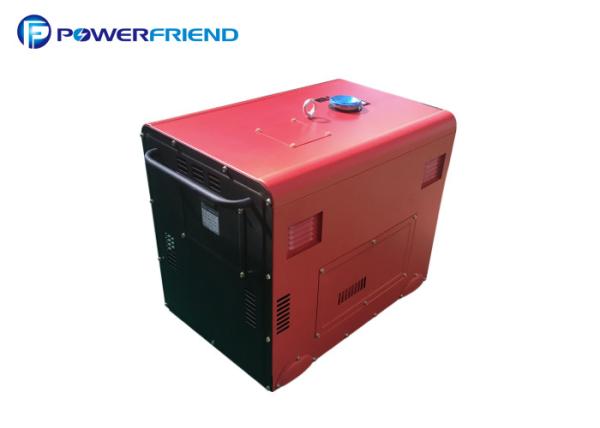

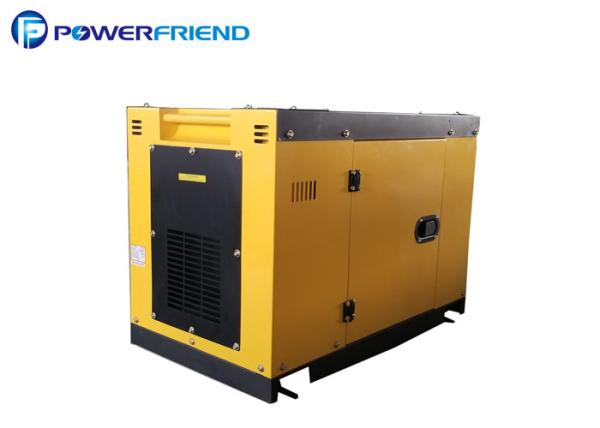

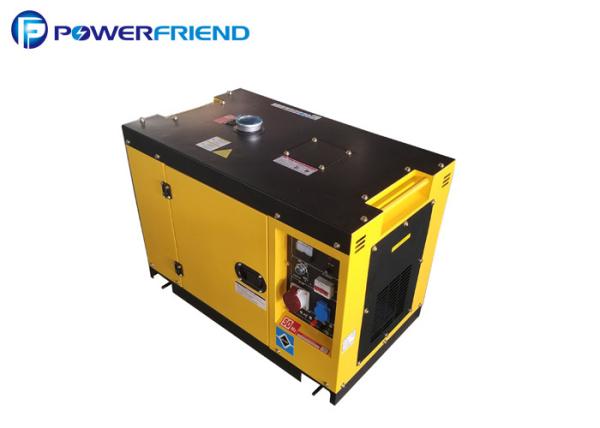

Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
Specifications
Brand Name :
GPRO
Model Number :
PD-6500
Certification :
ISO9001/ISO14001/CE
Place of Origin :
China (Mainland)
MOQ :
1 set
Price :
USD 750~1200$
Supply Ability :
1000 sets per month
Delivery Time :
10~30days
Packaging Details :
Packed in paper box
Power factor :
1
Phase number :
Single phase
Bore * stroke :
86X72
Displacement ml :
418
Lubrication system :
pressure splashed
Fuel tank capacity :
15L
Continuous Running time :
8H
Fuel consumption rate(g/kw.h) :
3000rpm 276,3600rpm 285
Description
Genset Model No. PD6500X (Open type) PD6500E (Open type) PD6500T (Normal Silent type) PD6500RS (Top open Silent type) PD6500ES (Super Silent type) PD6500KS (Super Silent type)
Rated frequency (Hz) 50/60 50/60 50/60 50/60 50/60 50/60
Rated voltage (v) 230 120/240 230 120/240 230 120/240 230 120/240 230 120/240 230 120/240
Rated output power(kW) 4.5 5 4.5 5 4.5 5 4.5 5 4.5 5 4.5 5
Rated rotation speed(rpm) 3000/3600 3000/3600 3000/3600 3000/3600 3000/3600 3000/3600
DC Output 12v 8.3A 12v 8.3A 12v 8.3A 12v 8.3A 12v 8.3A 12v 8.3A
Power factor 1 1 1 1 1 1
Phase number Single phase Single phase Single phase Single phase Single phase Single phase
Noise level dB@7m 85 85 75 75 68 68
Overall dimension (L*W*H)MM 780x500x650 780x500x650 950x560x750 950x560x750 950x560x750 950x560x750
Engine Engine type 186F 186FAE 186FAE 186FAE 186FAE 186FAE
Structure type Single cylinder , in lined 4 stroke, air cooled direct injection Single cylinder , in lined 4 stroke, air cooled direct injection Single cylinder , in lined 4 stroke, air cooled direct injection Single cylinder , in lined 4 stroke, air cooled direct injection Single cylinder , in lined 4 stroke, air cooled direct injection Single cylinder , in lined 4 stroke, air cooled direct injection
Bore * stroke mm 86X72 86X72 86X72 86X72 86X72 86X72
Displacement ml 418 418 418 418 418 418
Compression ratio 19:01 19:01 19:01 19:01 19:01 19:01
Rated output(kw/rpm) 5.9/3000 6.5/3600 5.9/3000 6.5/3600 5.9/3000 6.5/3600 5.9/3000 6.5/3600 5.9/3000 6.5/3600 5.9/3000 6.5/3600
Lubrication system pressure splashed pressure splashed pressure splashed pressure splashed pressure splashed pressure splashed
Lue oil brand Above CD SAE 10W 30 15W 40 Above CD SAE 10W 30 15W 40 Above CD SAE 10W 30 15W 40 Above CD SAE 10W 30 15W 40 Above CD SAE 10W 30 15W 40 Above CD SAE 10W 30 15W 40
Staring system Recoil start 12V Electric starter 12V Electric starter 12V Electric starter 12V Electric starter 12V Electric starter
Starting motor capacity N/M 12V 0.8KW 12V 0.8KW 12V 0.8KW 12V 0.8KW 12V 0.8KW
Charging generator capacity N/M 12V 3A 12V 3A 12V 3A 12V 3A 12V 3A
Battery capacity N/M 12V 36AH 12V 36AH 12V 36AH 12V 36AH 12V 36AH
Fuel consumption rate(g/kw.h) 3000rpm 276,3600rpm 285 3000rpm 276,3600rpm 285 3000rpm 276,3600rpm 285 3000rpm 276,3600rpm 285 3000rpm 276,3600rpm 285 3000rpm 276,3600rpm 285
Fuel type Diesel 0# or 10# 35# Diesel 0# or 10# 35# Diesel 0# or 10# 35# Diesel 0# or 10# 35# Diesel 0# or 10# 35# Diesel 0# or 10# 35#
Fuel tank capacity (L) 15 15 15 15 15 15
Continuous Running time(H) 8 8 8 8 8 8

Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset

Electric Start Prime 5kw Small Silent Diesel Generator , Portable Diesel Genset
