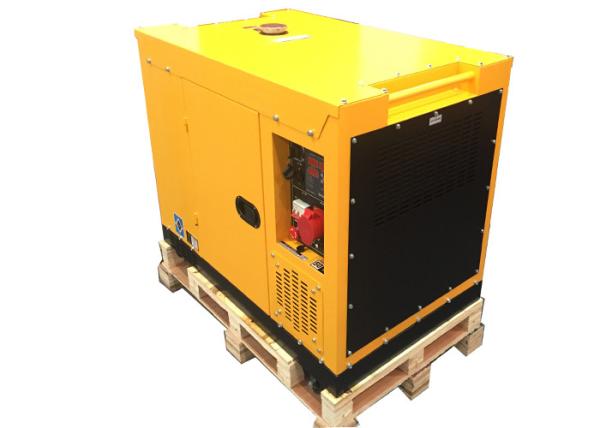

11kw Small Portable Generators with 2V92 electric start smartgen controller
11kw Small Portable Generators with 2V92 electric start smartgen controller
11kw Small Portable Generators with 2V92 electric start smartgen controller
11kw Small Portable Generators with 2V92 electric start smartgen controller
Specifications
Brand Name :
GPRO
Model Number :
PD12T
Certification :
ISO9001/ISO14001/CE
Place of Origin :
WUXI CITY CHINA
MOQ :
20 SET
Price :
Negotiation
Supply Ability :
1000 sets / Month
Delivery Time :
20 days
Packaging Details :
Poly wooden case or carton box
Power(Prime/Standby) :
10KW/11KVA
Frequency :
50/60HZ
Current :
35A
Voltage :
220/230/240v
Engine :
2V92 , 2 cylinder diesel engine
Alternator :
100% copper
Controller :
Electric start
Sound Level/db :
70dB
Warranty :
1 year or 1000 hours
Phase :
3 phase or 1 phase
Engine Speed :
3000rpm/3600rpm
Description

11kw small portable generators with 2V92 electric start smartgen controller


Specification of 10kva Generator:

Model NO. PD12T
Generator
set		 Rated frequency(Hz) 50/60
Rated voltage(V) 220V 230V 240V
Rated current(A) 45A / 50A
Rated output power(kW) 10KW / 11KW
Max output power (kW) 11KW / 12KW
Rated rotation speed(rpm) 3000/3600
DC output 12V 8.3A
Power factor(cosφ) 1
Phase number 1 phase
Noise level[dB(A)@7m] 79
Overall dimension(L*W*H)[mm] 1150x770x920mm
Net weight(kg) 310
Engine Engine type 2V92
Structure type 2 cylinder, V-Twin,4-stroke,
air cooled, direct injection
Displacement[ml(cu. in)] 997
Engine speed(rpm) 3000/3600
Compression ratio 19:1
Rated output power[kW/rpm] 14.4/3000 , 15.3/3600
Lubrication system Pressure splashed
Lube oil brand Above CD SAE 10W-30,15W-40
Starting system 12 V Electric starter
Starting motor capacity 12V 0.8KW
Charging generator capacity 12V 3A
Battery capacity 12V 45AH
Fuel consumption 100% loading 3000rpm: 3.5 , 3600rpm: 4.0
Fuel type Diesel 0#(summer)or-10#(winter),-35#(cold)
Quantity for 20ft container 30 PCS

Description:

1 100% copper alternator
2 2 cylinder 4 stroke , diesel engine
3 Phase single or 3 phase
4 Dimension 1120x750x800mm Net Weight 260KGS
5 Quantity for 20 foot container 26 sets

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway

2. Home use , industrial use, island use.

3. Telecom, Mobile tower, etc

4.As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow

Competitive Advantage:

1. With 2 fan , have good air input and output design.

2. Power is stable.

3. 100% cooper

4. Produce engines / canopy and assemble by ourselves.

5. Small size , suitable small place.

6. With 2V86, 2 cylinder air cooled diesel engine
