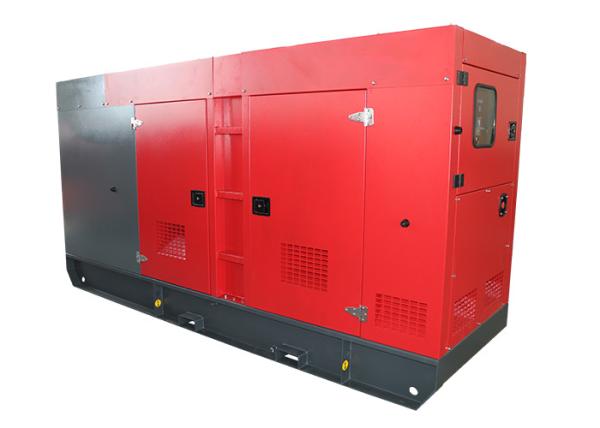

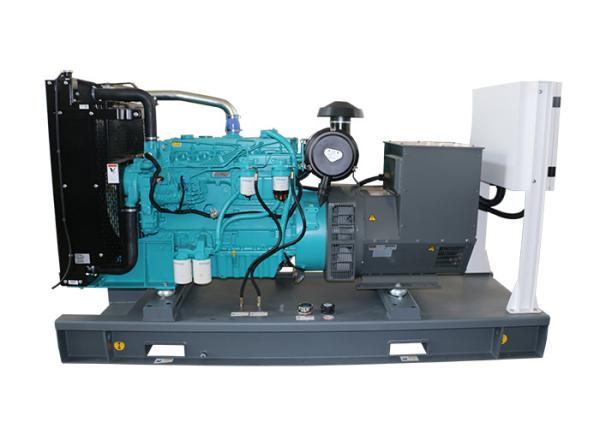

Perkins Diesel Generator 120KW / 150KVA 50hz 3 Phases Long Life
Perkins Diesel Generator 120KW / 150KVA 50hz 3 Phases Long Life
Perkins Diesel Generator 120KW / 150KVA 50hz 3 Phases Long Life
Perkins Diesel Generator 120KW / 150KVA 50hz 3 Phases Long Life
Perkins Diesel Generator 120KW / 150KVA 50hz 3 Phases Long Life
Perkins Diesel Generator 120KW / 150KVA 50hz 3 Phases Long Life
Perkins Diesel Generator 120KW / 150KVA 50hz 3 Phases Long Life
Perkins Diesel Generator 120KW / 150KVA 50hz 3 Phases Long Life
Specifications
Brand Name :
GPRO
Model Number :
GP165PS
Certification :
ISO, CE, SASO
Place of Origin :
WUXI，JIANGSU， CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
300 sets
Delivery Time :
25days
Packaging Details :
Plywood
Engine model :
1106A-70TAG2
Net weight :
2100kg
Warranty :
12 Months/1000 Hours
Power factor :
0.8
Fuel tank capacity :
270L
Fuel type :
Diesel 0#(Summer)or 10#(Winter) 35#(Cold)
Prime Power :
120KW/150KVA
Standby Power :
132KW/165KVA
Rated Voltage :
230/400V
Frequency :
50HZ
Description

Perkins Diesel Generator 120KW / 150KVA 50hz 3 Phases Long Life

Technical specification
Genset Model GP165PS
Prime Power 120KW/150KVA
Standby Power 132KW/165KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 216.5A
Genset Structure SILENT
Dimension 3300×1200×1500mm
Net Weight 2100KG
Noise level 75dB at 7 meters
Fuel Tank Capacity 270L
Engine Model 1106A-70TAG2
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 100mm × 127mm
Displacement 6L
12-hour Power(kw) 137KW/1500
Fuel Consumption L/H 33.4L/H
Compression Ratio 17:01
Governor type ELECTIC
Alternator Model STAMFORD /UCI274F
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Deepsea 7320 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator

Perkins Diesel Generator 120KW / 150KVA 50hz 3 Phases Long Life

There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.

ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

Standard Supply Scope:


Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card

Optional supply scope:


1.ATS

2. SynchronizationSystem

3. External daily fuel tank

4. Silent Canopy

5. Trailer

6. Auto Fuel Pump

7. Fuel and Water Separator

8. Lub Oil Heater

9. Coolant Heater

10. Fuel Drain Pump

Advantages:

. We are a powerful and unity sales team:

. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.

If have any questions, please contact us. Your inquiry would be appreciated.
