10KW / 11KVA Small Portable Generators , Diesel Power Generator With Chinese Engine
10KW / 11KVA Small Portable Generators , Diesel Power Generator With Chinese Engine
10KW / 11KVA Small Portable Generators , Diesel Power Generator With Chinese Engine
10KW / 11KVA Small Portable Generators , Diesel Power Generator With Chinese Engine
10KW / 11KVA Small Portable Generators , Diesel Power Generator With Chinese Engine
10KW / 11KVA Small Portable Generators , Diesel Power Generator With Chinese Engine
Specifications
Brand Name :
GPRO
Model Number :
PD15st
Certification :
ISO9001/ISO14001/CE
Place of Origin :
WUXI CITY CHINA
MOQ :
5 SET
Price :
Negotiation
Supply Ability :
1000 sets / Month
Delivery Time :
20 days
Packaging Details :
Poly wooden case or carton box
Power(Prime/Standby) :
10KW/11KVA
Frequency :
50/60HZ
Current :
35A
Voltage :
220/230/240v
Diesel Engine :
292 , 2 cylinder in line , 4 stroke , air cooled
Alternator :
100% copper
Controller :
Electric start
Sound Level/db :
72dB
Warranty :
1 year or 1000 hours
Phase :
3 phase or 1 phase
Engine Speed :
3000rpm/3600rpm
Description

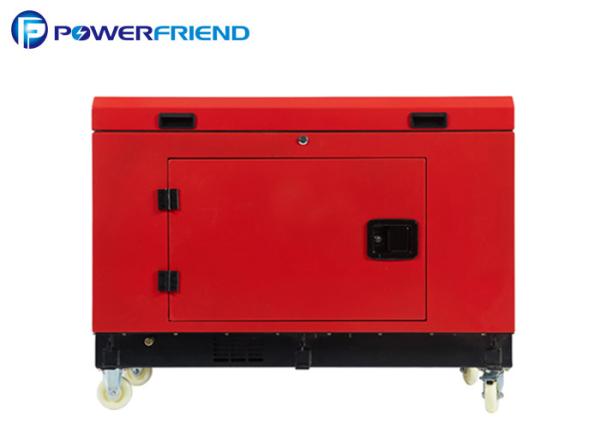

Silent type portable 10KW/11KVA diesel generator with chinese engine
Specification of 10kw Generator:

Model NO. PD15st
Generator
set		 Rated frequency(Hz) 50/60
Rated voltage(V) 220V 230V 240V
Rated current(A) 50A
Rated output power(kW) 10KW - 11KW
Max output power (kW) 11KW - 12KW
Rated rotation speed(rpm) 3000/3600
DC output 12V 8.3A
Power factor(cosφ) 1.0
Phase number 1 phase
Noise level[dB(A)@7m] 72
Overall dimension(L*W*H)[mm] 1150x770x920mm
Net weight(kg) 310
Engine Engine type 292
Structure type 2 cylinder, in line ,4-stroke,
air cooled, direct injection
Displacement[ml(cu. in)] 997
Engine speed(rpm) 3000/3600
Compression ratio 19:1
Rated output power[kW/rpm] 14.4/3000 , 15.3/3600
Lubrication system Pressure splashed
Lube oil brand Above CD SAE 10W-30,15W-40
Starting system 12 V Electric starter
Starting motor capacity 12V 0.8KW
Charging generator capacity 12V 3A
Battery capacity 12V 45AH
Fuel consumption 100% loading 3000rpm: 3.5 , 3600rpm: 4.0
Fuel type Diesel 0#(summer)or-10#(winter),-35#(cold)
Quantity for 20ft container 26 PCS



Description:

1 100% copper alternator
2 2 cylinder in line , 4 stroke , diesel power
3 Phase single or 3 phase
4 Dimension 1120x750x800mm Net Weight 260KGS
5 Quantity for 20 foot container 26 sets


Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use , industrial use, island use.
3. Telecom, Mobile tower, etc
4.As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow

Competitive Advantage:

1. With 2 fan , have good air input and output design.
2. Power is stable.
3. 100% cooper
4. Produce engines / canopy and assemble by ourselves.
5. Small size , suitable small place.
6. With 2V86, 2 cylinder air cooled diesel engine

10KW / 11KVA Small Portable Generators , Diesel Power Generator With Chinese Engine

Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.

10KW / 11KVA Small Portable Generators , Diesel Power Generator With Chinese Engine

Packaging & Shipping

Packaging & Shipping

10KW / 11KVA Small Portable Generators , Diesel Power Generator With Chinese Engine

FAQ

Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).

Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.

Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.

Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.

Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.

Q6: Can you use our logo?

A6: Yes. For mass orders, we can use customer's logo instead of ours.
