Specifications
Brand Name :
GPRO
Model Number :
GP17FWS
Certification :
ISO,CE Certification
Place of Origin :
Jiangsu of China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
300 Set / Month
Delivery Time :
15 - 20 working day
Packaging Details :
Plywood or Plastic packing
Prime Power :
12KW 15KVA
Max Power :
13KW 17KVA
Engine :
FAWDE
Rated Gen-set output :
230/400V 50Hz
Alternator :
Stamford type, brushless, 100% copper
Controller :
Deepsea, Smartgen, Harsen for optional
Frequency :
50 HZ
Cooling system :
Water cooled
Genset type :
Open type, Silent type, Container type, Trailer type for optional
ATS :
Optional
Description

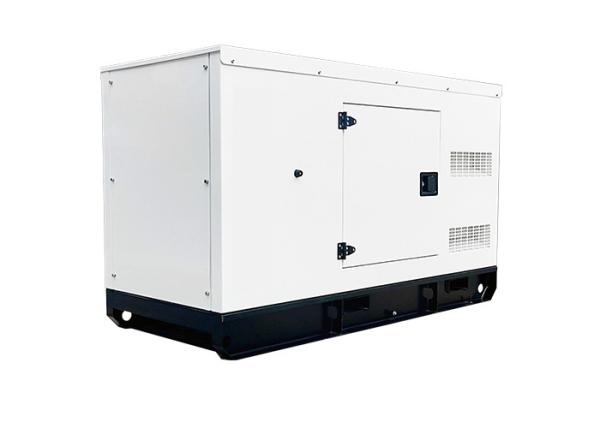

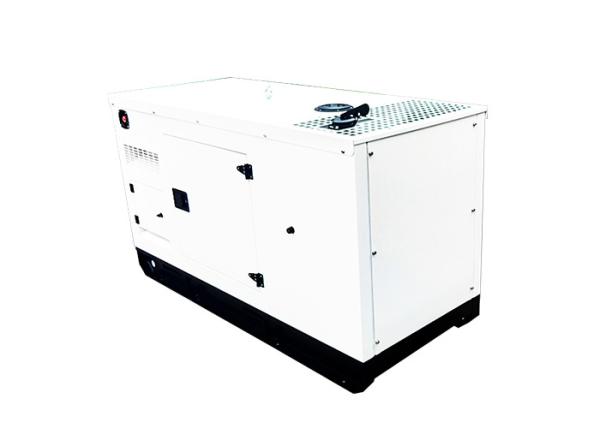

50HZ 12kw power Fawde diesel generator water cooled 15kva silent genset

Specification of GPRO Genset
Genset Genset Model GP17FWS
Prime at 50HZ, 40℃ ambient 12KW 15KVA
Standby at 50HZ, 40℃ ambient 13KW 17KVA
Rated Gen-set output 230/400V 50Hz
Dimension (L×W×H)mm Open: 1450*650*1050,
Silent: 2000*940*1100
Weight Open: 480kg, Silent: 800kg
Fuel consumption 100% prime load 3.3L/h
Rated currency 23A
Circuit Breaker Delixi/CHINT or Customized
Base fuel tank At least for 8-hour contunuous running
Controller Deepsea/ ComAp/ Smartgen
Noise Level/dBA @7m(Silent type only) 65
Engine Engine Brand FAWDE
Engine Model 4DW81-23D
Governor/Class Machanical or Electronic
Cylinder NO. & Build 4 in Line
Cooling mode Water Cooling
Bore and stroke 85×100 mm
Compression ratio 17:01
Displacement 2.27
Engine Prime Power at 1500rpm 17KWm
Engine Standby Power at 1500rpm 19KWm
Alternator Alternator Brand Stamford type, brushless, 100% copper
Insulation class H
Protection class IP23


Heavy duty world class brand industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards



ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional.

Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours

Competitive Advantage:

1. Full power range.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.
FAQ
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).

Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose.
Please contact us for more details.

Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.

Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.

Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.

Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
If have any questions, please contact us. Your inquiry would be appreciated.
