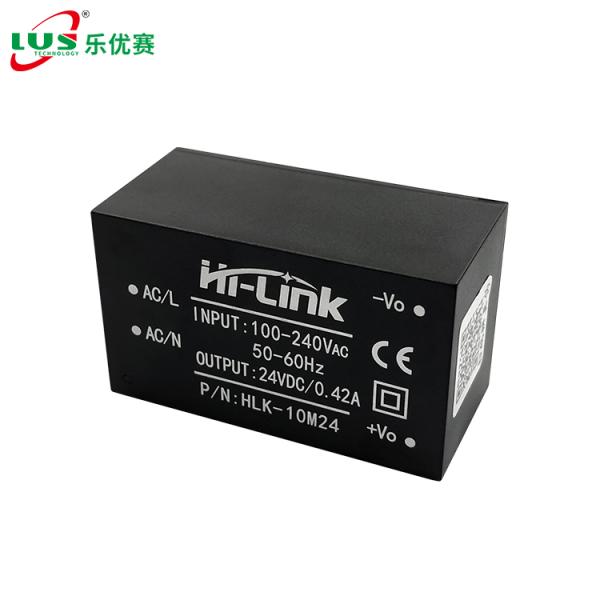

Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24
Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24
Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24
Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24
Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24
Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24
Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24
Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24
Specifications
Brand Name :
Hilink or OEM
Model Number :
HLK10m24
Place of Origin :
China
MOQ :
5 pcs
Price :
Bargain
Payment Terms :
T/T
Supply Ability :
50k/months
Delivery Time :
2-5 days
Packaging Details :
PP+Carton
No-load loss :
<0.1W
Output Current :
0.42A, 416mA
Input Voltage :
90~265Vac
Frequency :
50-60Hz
Name :
AC DC power supply
Description

10w 24v power module ac to dc 220v to 24 v Step down module HLK10M24 24v acdc power supplyshenzhen hi-link electronic

KEY:

inverters &amp; converters

power supply 220v to 5v 3000ma 5v 15w module

dc power supply open frame

voltage converter 110v to 220v small

invatar 24 volt

5v ups mini

12v 1a to 5v 1a dc buck convertor

car charger circuit board

ac dc converter module 10w

rgbw led strip 24v

inverter circuit board

trafo 220v 24v

power converter

abb contactors switching

universal regulated power supply

10w ac to dc convertor 12v

Name:

power line communication ACDC modem hlk10m24 10W power module ac dc hilink AC DC

10W power module ac to dc 220v to 24 v Step down module HLK10M24 24v acdc power supply hilink

Description:

10W Ultra-Compact Power Module
10M03/10M05/10M09/10M12/10M24

The 10W ultra-small series power supply module is a small volume, high efficiency power module designed
for customers by Hi-Link. It has the advantage of global input voltage range, low temperature rise, low power
consumption, high efficiency, high reliability, high security isolation etc.,and has been widely used in smart home,
automation control, communication equipment, instruments and other industries.

HIlink hlk10m24 Technical:

Items Technical Parameters Units Notes
No-load rated output voltage 24±0.1 Vdc 　
Full-load tated output voltage 24±0.2 Vdc 　
Short time maximum output current ≥480 mA 　
Long time maximum output current ≥420 mA 　
Voltage regulation ±2 % 　
Load regulation ±0.5 % 　
Output ripple and noise (mVp-p) ≤70 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test mV 　
Switching on/off overshoot amplitude (Rated input voltage, output plus 10% load)≤5 %Vo 　
Output over-current protection 110-150% of maximum output load A 　
Output short circuit protection Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit 　 No-damage to the whole device

10W mini power supply drawing:

Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24

Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24

Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24

Hilink 10W AC To DC 220V To 24V Step Down Module HLK10M24

Hot ACDC power module:

Model No. Size (mm) Weight (g) Output Power (w) Output Voltage (v) Output Current (mA) Efficiency %(TYP)
HLK-2M03 30*16*19 18g 2W 3.3 600 69
HLK-2M05 5 400
HLK-2M09 9 230
HLK-2M12 12 170
HLK-2M24 24 84
HLK-PM01 34*20*15 20g 3W 5 600 72
HLK-PM03 3.3 1000
HLK-PM09 9 330
HLK-PM12 12 250
HLK-PM24 24 125
HLK-PM01L 32*18*12 10g 3W 5 600 72
HLK-PM03L 3.3 1000
HLK-PM09L 9 330
HLK-PM12L 12 250
HLK-PM24L 24 125
HLK-5M03 38*23*18 26g 5W 3.3 1500 72
HLK-5M05 5 1000
HLK-5M09 9 560
HLK-5M12 12 450
HLK-5M24 24 208
HLK-10M03 47*28*22 40g 10W 3.3 3000 72
HLK-10M05 5 2000
HLK-10M09 9 1100 78
HLK-10M12 12 830
HLK-10M24 24 416
HLK-10M03L 44.5*25*19 23g 10W 3.3 3000 72
HLK-10M05L 5 2000
HLK-10M09L 9 1100 78
HLK-10M12L 12 830
HLK-10M24L 24 416
HLK-12M12 50.8*25.4*15 80g 12W 12 1000 86
HLK-20M05 57*33*22.5 80g 20W 5 4000 80
HLK-20M09 9 2200
HLK-20M12 12 1666
HLK-20M15 15 1300
HLK-20M24 24 833 84
HLK-30M05 56*32*22.5 80g 30W 5 6000 89
HLK-30M09 9 3300 90
HLK-30M12 12 2500
HLK-30M15 15 2000
HLK-30M24 24 1250
HLK-40M05 56*32*22.5 80g 40W 5 8000 89
HLK-40M09 9 4400 90
HLK-40M12 12 3300
HLK-40M15 15 2600
HLK-40M24 24 1600

Hilink DC DC power :

Model No. Output Power (W) Size (mm) Input Voltage Output Voltage
(Vdc)		 Ouput Current (mA) Output voltage form Isolation voltage
HLK-1D0505 1 11.5*6.0*10.0 4.5~5.5Vdc +5 200 Single unregulated 1500Vdc
HLK-1D0505A +5 200
HLK-1D1205 10.8~13.2Vdc +5 200
HLK-1D1212 +12 84
HLK-1D1215 +15 67
HLK-1D2405 21.6~26.4Vdc +5 200
HLK-5D1205 5 25.4*25.4*11 9~18Vdc +5 1000 Single voltage regulator
HLK-5D1212 +12 420
HLK-5D1215 +15 330
HLK-5D1224 +24 210
HLK-5D2405 18~36Vdc +5 1000
HLK-5D2412 +12 420
HLK-10D2405 10 25.4*25.4*11 9~36Vdc +5 2000
HLK-10D2412 +12 830
HLK-10D2424 +24 420
HLK-10D4805 18~75Vdc +5 2000
HLK-10D1205B 10 50.8*25.4*11 9~18Vdc +5 2000
HLK-10D1212B +12 830
HLK-10D2405B 18~36Vdc +5 2000
HLK-10D2412B +12 830
HLK-10D2424B +24 420
HLK-10D4805B 36~72Vdc +5 2000
HLK-20D2405 20 25.4*25.4*11 9~36Vdc +5 4000
HLK-20D2412 +12 1666
HLK-20D2405C 20 50.8*25.4*11 9~36Vdc +5 4000
HLK-20D2412C +12 1666
HLK-30D2405C 30 50.8*25.4*11 9~36Vdc +5 6000
HLK-30D2412C +12 2500
HLK-30D2424C +24 1250
HLK-40D2405 40 50.8*50.8*12.7 18~36Vdc +5 8000
