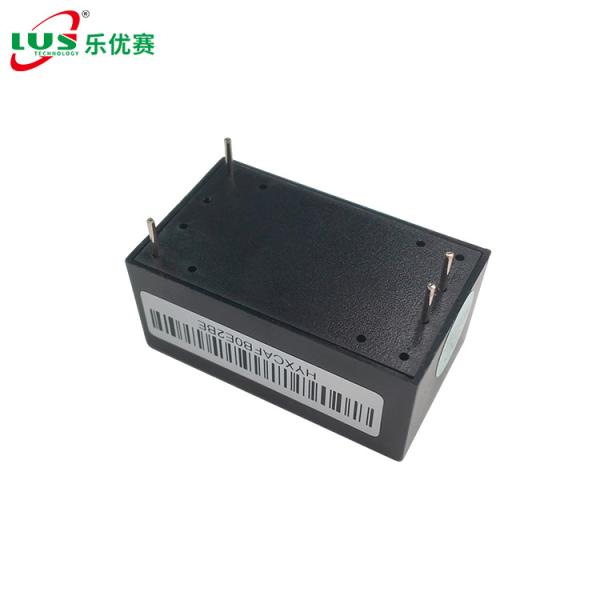

3.3V 5V 9V 12V 24V Mini AC DC Hilink Power Supply 3W
3.3V 5V 9V 12V 24V Mini AC DC Hilink Power Supply 3W
3.3V 5V 9V 12V 24V Mini AC DC Hilink Power Supply 3W
3.3V 5V 9V 12V 24V Mini AC DC Hilink Power Supply 3W
3.3V 5V 9V 12V 24V Mini AC DC Hilink Power Supply 3W
3.3V 5V 9V 12V 24V Mini AC DC Hilink Power Supply 3W
3.3V 5V 9V 12V 24V Mini AC DC Hilink Power Supply 3W
3.3V 5V 9V 12V 24V Mini AC DC Hilink Power Supply 3W
Specifications
Brand Name :
Hilink or OEM
Model Number :
HLKpm03
Place of Origin :
China
MOQ :
5 pcs
Price :
Bargain
Payment Terms :
T/T
Supply Ability :
50k/month
Delivery Time :
3-7 days
Packaging Details :
PP+Carton
Name :
PM01 power module
Voltage :
5V
Current :
600mA
Weight :
Around 20g
Shipping :
Express, Air, Sea, truck etc
OEM :
Welcome
Description
Description

PM01 / PM03 / PM09 / PM12 / PM24 Hi Link 3.3V 5V 9V 12V 24V mini AC/DC Power Modules hilink power supply 3W acdc

3W ultra-small series of power module is a small volume, high efficiency module power supply . With the global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, high security isolation and so on. Has been widely used in smart home,automation,communications equipment, instrumentation and other industries.

Name: PM01 / PM03 / PM09 / PM12 / PM24 Hi Link 3.3V 5V 9V 12V 24V mini AC/DC Power Modules hilink power supply 3W acdc

Key:

ac dc 12v module

hilink pm01

dual output 5v 12v dc power supply

switching power supply module

ac dc 5v module

hi link ac dc 5v 3w

step down power transformer

ac to dc converter

12 v power supply

220v to 5v ac dc converter module

acdc 24v module

power supply 5v

230v 5v dc power supply

Features

1. Ultra-thin, ultra-small, the industry's smallest volume;

2. Global universal input voltage (90 ~ 245Vac);
3. Low-power, green, no-load loss <0.1W;
4. Low ripple, low noise;
5. Good output short circuit and overcurrent protection and self recovery;
6. High efficiency, high power density;
7. Input and output isolation voltage 3000Vac;
8. 100% full load aging and testing;
9. High reliability, long life design, continuous working time is greater than 100,000 hours;
10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards;
12. Economic solutions, cost-effective
13. No external circuit to work
14. 1 year quality guarantee period.
Product model:
Model NO. Size (mm) Weight (g) Output Power (w) Output Voltage (v) Output Current (mA) Efficiency %(TYP)
HLK-PM01 34*20*15 20g 3W 5 600 72
HLK-PM03 3.3 1000
HLK-PM09 9 330
HLK-PM12 12 250
HLK-PM24 24 125

acdc isolated power module hlkpm03 technical:

Items Technical Parameters Units Notes
No-load rated output voltage 3.3±0.1 Vdc 　
Full-load tated output voltage 3.3±0.2 Vdc 　
Short time maximum output current ≥1100 mA 　
Long time maximum output current 1000 mA 　
Voltage regulation ±0.2 % 　
Load regulation ±0.5 % 　
Input low voltage efficiency Vin=115Vac, Output full load≥72 % 　
Input high voltage efficiency Vin=230Vac, Output full load≥72 % 　
Output ripple and noise (mVp-p) ≤100 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test mV 　
Switching on/off overshoot amplitude (Rated input voltage, output plus 10% load)≤5 %Vo 　
Output over-current protection Output maximum load 110-150% A 　
Output short circuit protection Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit 　 No-damage to the whole device

3.3V 5V 9V 12V 24V Mini AC DC Hilink Power Supply 3W

3.3V 5V 9V 12V 24V Mini AC DC Hilink Power Supply 3W

3.3V 5V 9V 12V 24V Mini AC DC Hilink Power Supply 3W
