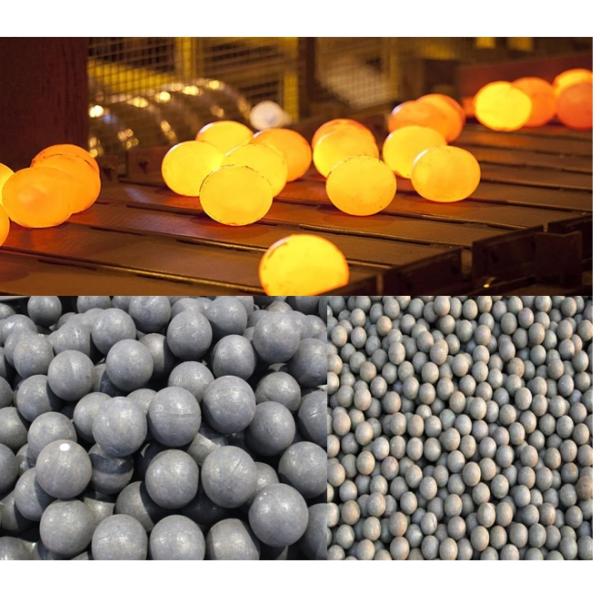

Wear Resistance Forged Steel Balls For Ball Mills High And Uniform Hardness
Wear Resistance Forged Steel Balls For Ball Mills High And Uniform Hardness
Wear Resistance Forged Steel Balls For Ball Mills High And Uniform Hardness
Wear Resistance Forged Steel Balls For Ball Mills High And Uniform Hardness
Specifications
Brand Name :
HYZONT
Model Number :
ZWQ
Certification :
CCC
Place of Origin :
China
MOQ :
1 ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
15 Days after Payment
Packaging Details :
iron basket
Description

Forged Steel Balls for Ball Mills

Wear Resistance Forged Steel Balls For Ball Mills High And Uniform Hardness
Products Introduction
PRODUCT FEATURES
  • high and uniform hardness
  • greater wear resistance and fatigue endurance
  • smooth surface and low circle loss rate
  • low breakage rate
CHEMICAL COMPOSITION
Grade C Si Mn P ≤ S ≤ Cr Ni ≤ Cu ≤
ZWQ-2 0.72-0.86 0.15-0.37 0.70-0.80 0.035 0.035 0.20-0.65 0.25 0.25
ZWQ-3 0.58-0.66 1.30-1.90 0.40-0.80 0.035 0.035 0.70-0.90 0.25 0.25
ZWQ-4 0.70-0.90 1.20-1.40 0.50-0.80 0.035 0.035 0.70-1.00 0.25 0.25
ZWQ-3-2 0.70-0.80 1.30-1.40 0.70-0.80 0.035 0.035 0.70-0.90 0.25 0.25
TECHNICAL SPECIFICATION
Inch Size

(mm)

 Theoretical Weight(Kg) Actual Size Range(mm) 材质 Surface Hardness Core Hardness Volume Hardness
(HRC+/-0.5HRC (HRC+/-0.5HRC (HRC+/-0.5HRC
1” Φ25 0.075+/-0.01 Φ24.5~27.5 ZWQ-2 63-66 62-64 63-66
1 1/4” Φ30 0.14+/-0.02 Φ29.7~32.7 ZWQ-2 63-66 62-64 63-66
1 1/2” Φ40 0.31+/-0.04 Φ39.6~43.6 ZWQ-2 63-66 62-64 63-66
2” Φ50 0.59+/-0.05 Φ50~54 ZWQ-2 62-65 61-63.5 62-65
2 1/2” Φ60 1.0+/-0.05 Φ60.4~64.4 ZWQ-2 62-65 59-64 61-64
3” Φ80(75) 1.9+/-0.1 Φ76~81 ZWQ-2 61-63 59-62 60-63
3 1/2” Φ90MM 3.1+/-0.15 Φ88~93.5 ZWQ-3 60-62 58-61 59-62
