Premium Industrial Vibration Sensor High Temperature Accelerometer 150°C 100 MV/G
Premium Industrial Vibration Sensor High Temperature Accelerometer 150°C 100 MV/G
Specifications
Brand Name :
Wilcoxon
Model Number :
Model 797-6
Certification :
CE
Place of Origin :
USA
MOQ :
1 set
Price :
negotiated sale
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 set/year
Delivery Time :
10-60days
Packaging Details :
Standard
Wilcoxon model :
Model 797-6
Sensitivity :
100 mV/g
Sensitivity tolerance :
±10 %
Frequency response ± 3 dB, Hz :
1 Hz - 11,000 Hz
Resonance frequency :
30 kHz
Bias output voltage :
Bias output voltage
Temperature sensor output sensitivity :
-50°C to +150°C
Mounting :
1/4-28 UNF tapped hole
Output connector :
MIL-C-5015, 2-pin
Compliance :
CE •[CSA/ATEX/IECEx]
Description

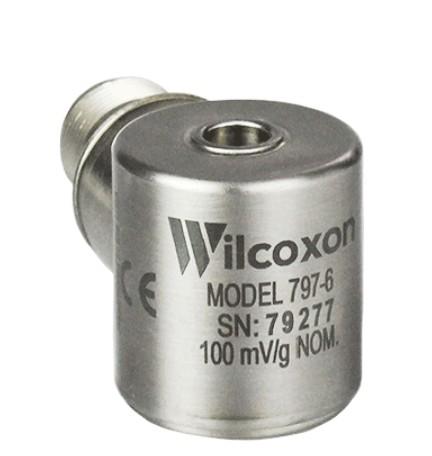

Premium high temperature accelerometer, 150°C, 100 mV/g

Model 797-6
Premium Industrial Vibration Sensor High Temperature Accelerometer 150°C 100 MV/G

High temperature accelerometer, operation to 150°C/302°F, 100 mV/g sensitivity, ±10% sensitivity tolerance, low profile with side exit 2-pin MIL-C-5015-style connector, case isolated

High temperature accelerometer features

  • High temperature operation up to 150°C
  • Corrosion resistant
  • Hermetic seal
  • ESD, overload, and reverse wiring protection

Included accessories

  • 1/4-28 captive screw

Specifications

PARAMETER VALUE
Sensor output Dynamic vibration (IEPE)
Sensitivity 100 mV/g
Sensitivity tolerance ±10 %
Frequency response, ±3 dB 1 Hz - 11,000 Hz
Mounting thread 1/4-28 captive socket head screw
Connector style MIL-C-5015, 2-pin
Connector orientation Side exit
Full-scale range 50 g peak
Resonance frequency 20 kHz
Temperature range -50°C to +150°C
Weight 145 grams
Hazardous area approvals Non-approved
