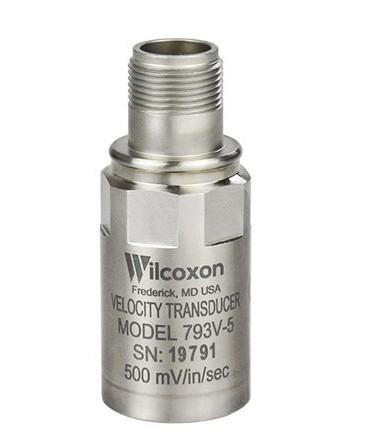

High Performance High Sensitivity Vibration Velocity Sensor 500 MV/In/Sec
High Performance High Sensitivity Vibration Velocity Sensor 500 MV/In/Sec
Specifications
Brand Name :
Wilcoxon
Model Number :
Model 793V-5
Certification :
CE
Place of Origin :
USA
MOQ :
1 set
Price :
negotiated sale
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 set/year
Delivery Time :
10-60days
Packaging Details :
Standard
Wilcoxon model :
Model 793V-5
Sensitivity :
500 mV/in/sec
Sensitivity tolerance :
±10 %
Frequency response ± 3 dB, Hz :
5 Hz - 7,000 Hz
Resonance frequency :
26 kHz
Temper to +150°Cature sensor output sensitivity :
-50°C to +120°C
Mounting :
1/4-28 tapped hole
Output connector :
MIL-C-5015, 2-pin
Compliance :
CE •[CSA/ATEX/IECEx]
Description

High performance, high sensitivity velocity sensor, 500 mV/in/sec

High Performance High Sensitivity Vibration Velocity Sensor 500 MV/In/Sec

High performance, high sensitivity, velocity sensor, 500 mV/in/sec sensitivity, low noise, wide frequency response, top exit MIL-C-5015-style connector

Velocity sensor features

  • High sensitivity - 500 mV/ips
  • Eliminates high frequency distortion
  • ESD, overload, and reverse wiring protection
  • Corrosion resistant stainless steel case

Included accessories

  • SF6 mounting stud

Specifications

PARAMETER VALUE
Sensor output Dynamic vibration (IEPE)
Sensitivity 500 mV/in/sec
Sensitivity tolerance ±10 %
Frequency response, ±3 dB 5 Hz - 7,000 Hz
Mounting thread 1/4-28 tapped hole
Connector style MIL-C-5015, 2-pin
Connector orientation Top exit
Full-scale range 10 in/sec peak
Resonance frequency 15 kHz
Temperature range -50°C to +120°C
Weight 145 grams
Hazardous area approvals Non-approved
