API 670 Compliant Industrial Accelerometer Sensor For Cement Manufacturing Machines
API 670 Compliant Industrial Accelerometer Sensor For Cement Manufacturing Machines
Specifications
Brand Name :
Wilcoxon
Model Number :
787A
Certification :
CE
Place of Origin :
USA
MOQ :
1 set
Price :
negotiated sale
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 set/year
Delivery Time :
10-60days
Packaging Details :
Standard
Wilcoxon model :
787A
Sensitivity :
100 mV/g
Sensitivity tolerance :
±5%
Frequency response ± 3 dB, Hz :
Dynamic vibration (IEPE)
Resonance frequency :
0.5 Hz - 10,000 Hz
Max temperature :
-55°C to +120°C
Bias output voltage :
Bias output voltage
Grounding :
case isolated
Mounting :
1/4-28 tapped hole
Output connector :
MIL-C-5015, 2-pin
Compliance :
CE •[CSA/ATEX/IECEx]
Description

Vibration monitoring for cement manufacturing machines Industrial accelerometer sensor, 100 mV/g, low profile

Industrial accelerometer sensor features

  • API 670 compliant
  • Suitable for a wide range of industrial applications
  • Rugged design, hermetically sealed
  • ESD, overload, and reverse wiring protection

Included accessories

  • 1/4-28 captive hex head screw

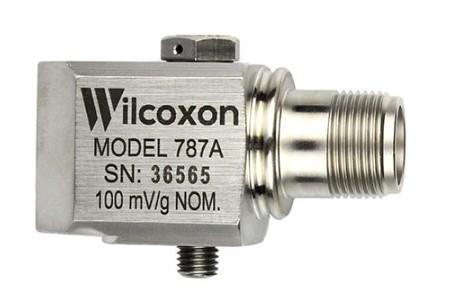

Industrial accelerometer sensor, 100 mV/g, low profile

Model 787A
API 670 Compliant Industrial Accelerometer Sensor For Cement Manufacturing Machines

Industrial accelerometer sensor, 100 mV/g sensitivity, ±5% sensitivity tolerance, low profile with side exit MIL-C-5015-style connector, 1/4-28 thread captive mounting screw, API 670 compliant

  • Specifications
PARAMETER VALUE
Sensor output Dynamic vibration (IEPE)
Sensitivity 100 mV/g
Sensitivity tolerance ±5 %
Frequency response, ±3 dB 0.5 Hz - 10,000 Hz
Mounting thread 1/4-28 captive screw
Connector style MIL-C-5015, 2-pin
Connector orientation Side exit
Full-scale range 80 g peak
Resonance frequency 22 kHz
Temperature range -55°C to +120°C
Weight 145 grams
Hazardous area approvals Non-approved; approved models available
