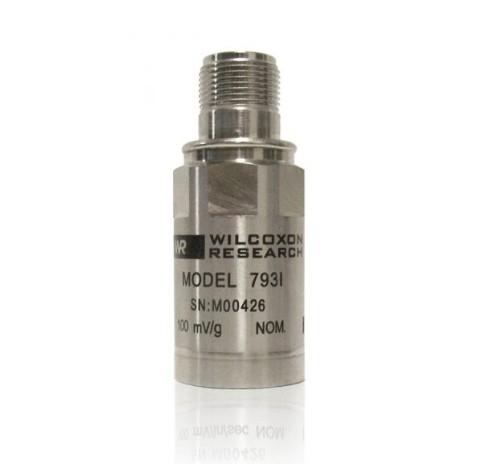

2pin MIL-C-5015 Connector General Purpose Sensors 100MV/G General Purpose Accelerometer
2pin MIL-C-5015 Connector General Purpose Sensors 100MV/G General Purpose Accelerometer
Specifications
Brand Name :
Wilcoxon
Model Number :
793I
Certification :
CE
Place of Origin :
USA
MOQ :
1 set
Price :
negotiated sale
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 set/year
Delivery Time :
10-60days
Packaging Details :
Standard
Wilcoxon model :
793I
Sensitivity :
100 mV/g
Sensitivity tolerance :
±5%
Frequency response ± 3 dB, Hz :
Dynamic vibration (IEPE)
Resonance frequency :
1 Hz - 10,000 Hz
Max temperature :
120°C
Bias output voltage :
Bias output voltage
Electrical noise 100 Hz :
5 µg/√Hz
Temperature sensor output sensitivity :
10 mV/°C
Grounding :
case isolated
Mounting :
1/4-28 tapped hole
Output connector :
MIL-C-5015, 2-pin
Compliance :
CE •[CSA/ATEX/IECEx]
Description

2-pin MIL-C-5015 connector; General-purpose sensors, 100 mV/g;High performance general purpose accelerometer, 100 mV/g

High performance, general purpose, IEPE accelerometer, reduced ignition spark interference, 100 mV/g sensitivity, ±5% sensitivity tolerance, low noise, wide frequency response, top exit MIL-C-5015-style connector
2pin MIL-C-5015 Connector General Purpose Sensors 100MV/G General Purpose Accelerometer

Industrial accelerometer sensor features

  • Corrosion resistant stainless steel case
  • Hermetic seal
  • Reduced ignition spark interference
  • No overload protection

Specifications

PARAMETER VALUE
Sensor output Dynamic vibration (IEPE)
Sensitivity 100 mV/g
Sensitivity tolerance ±5 %
Frequency response, ±3dB 1 Hz - 10,000 Hz
Mounting thread 1/4-28 tapped hole
Connector style MIL-C-5015, 2-pin
Connector orientation Top exit
Full-scale range 50 g peak
Temperature range -50°C to +120°C
Weight 110 grams
Hazardous area approvals Non-approved
