High Performance Industrial Vibration Sensor General Purpose Accelerometer Non Rusting
High Performance Industrial Vibration Sensor General Purpose Accelerometer Non Rusting
Specifications
Brand Name :
Wilcoxon
Model Number :
Model 797
Certification :
CE
Place of Origin :
USA
MOQ :
1 set
Price :
negotiated sale
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 set/year
Delivery Time :
10-60days
Packaging Details :
Standard
Wilcoxon model :
Model 797
Sensitivity :
100 mV/g
Sensitivity tolerance :
±5%
Frequency response ± 3 dB, Hz :
Dynamic vibration (IEPE)
Resonance frequency :
1 Hz - 12,000 Hz
Max temperature :
120°C
Bias output voltage :
Bias output voltage
Temperature sensor output sensitivity :
10 mV/°C
Grounding :
case isolated
Mounting :
1/4-28 tapped hole
Output connector :
MIL-C-5015, 2-pin
Compliance :
CE •[CSA/ATEX/IECEx]
Description

High performance general purpose accelerometer, 100 mV/g; IEPE accelerometer,±5% sensitivity tolerance

High performance general purpose accelerometer, 100 mV/g

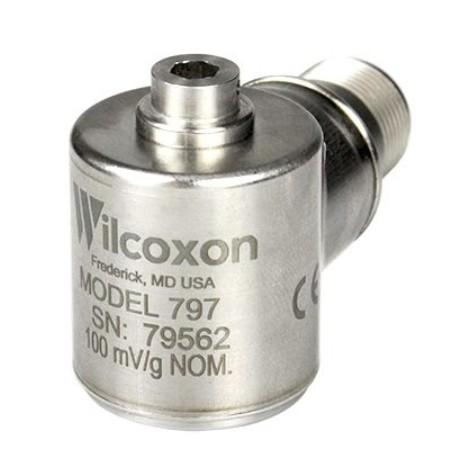

High Performance Industrial Vibration Sensor General Purpose Accelerometer Non Rusting

Model 797

High-performance, general purpose, IEPE accelerometer, 100 mV/g sensitivity, ±5% sensitivity tolerance, wide frequency response, low profile with side exit 2-pin MIL-C-5015-style connector

IEPE accelerometer features

  • Industrial ruggedness
  • Hermetic seal
  • Hazardous area certified and radiation-resistant versions available

Included accessories

  • 1/4-28 captive screw

  • Specifications

    PARAMETER VALUE
    Sensor output Dynamic vibration (IEPE)
    Sensitivity 100 mV/g
    Sensitivity tolerance ±5 %
    Frequency response, ±3dB 1 Hz - 12,000 Hz
    Mounting Thread 1/4-28 captive socket head screw
    Connector style MIL-C-5015, 2-pin
    Connector orientation Side exit
    Full-scale range 80 g peak
    Resonance frequency 26 kHz
    Temperature range -50°C to +120°C
    Weight 138 grams
    Hazardous area approvals Non-approved; approved models available
