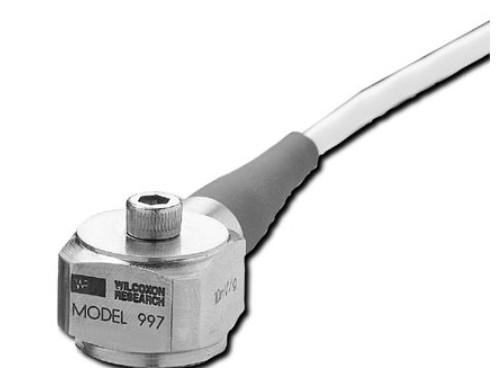

Anti Corrosion High Frequency Accelerometer With Integral Cable 10mV/G
Anti Corrosion High Frequency Accelerometer With Integral Cable 10mV/G
Specifications
Brand Name :
Wilcoxon
Model Number :
Model 997
Certification :
CE
Place of Origin :
USA
MOQ :
1 set
Price :
negotiated sale
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 set/year
Delivery Time :
10-60days
Packaging Details :
Standard
Wilcoxon model :
Model 997
Sensitivity :
10 mV/g
Sensitivity tolerance :
±10 %
Frequency response ± 3 dB, Hz :
0.5 Hz - 29,000 Hz
Resonance frequency :
45 kHz
Bias output voltage :
Bias output voltage
Temperature sensor output sensitivity :
10 mV/°C
Grounding :
case isolated
Mounting :
1/4-28 tapped hole
Output connector :
MIL-C-5015, 2-pin
Compliance :
CE •[CSA/ATEX/IECEx]
Description

High frequency accelerometer with integral cable, 10 mV/g,used on machinery with gear mesh or small bearings

Anti Corrosion High Frequency Accelerometer With Integral Cable 10mV/G

High frequency accelerometer, 10 mV/g sensitivity, ±10% sensitivity tolerance, 500 g range, low profile with side exit integral cable, ring type with 8-32 thread captive mounting screw

High frequency accelerometers are used on machinery with gear mesh or small bearings, such as high-speed machine tool spindles and compressors. At high frequencies, there is little vibration in terms of displacement and velocity, however tremendous amounts of acceleration amplitudes may be present. It is not uncommon for vibration amplitudes on a very high speed gearbox to exceed 80 g peak prior to failure. High frequency accelerometers with low voltage sensitivity will prevent sensor overload from these high amplitudes. The 10 mV/g sensitivity is commonly used due to its high amplitude range which can prevent sensor overload. Whereas a 100 mV/g accelerometer may overload at 50g peak, a 10 mV/g sensor will measure to 500g peak.

High frequency accelerometer features

  • Reverse wiring protection
  • Corrosion resistant
  • Hermetically sealed
  • Ground isolated
  • ESD protection

  • Specifications

    PARAMETER VALUE
    Sensitivity 10 mV/g
    Sensitivity tolerance ±10 %
    Frequency response, ±3dB 0.5 Hz - 29,000 Hz
    Mounting thread 8-32 tapped hole
    Connector style Integral cable
    Connector orientation Side exit
    Full-scale range 600 g peak
    Resonance frequency 45 kHz
    Temperature range -50°C to +120°C
    Weight 35 grams
    Hazardous area approvals Non-approved
