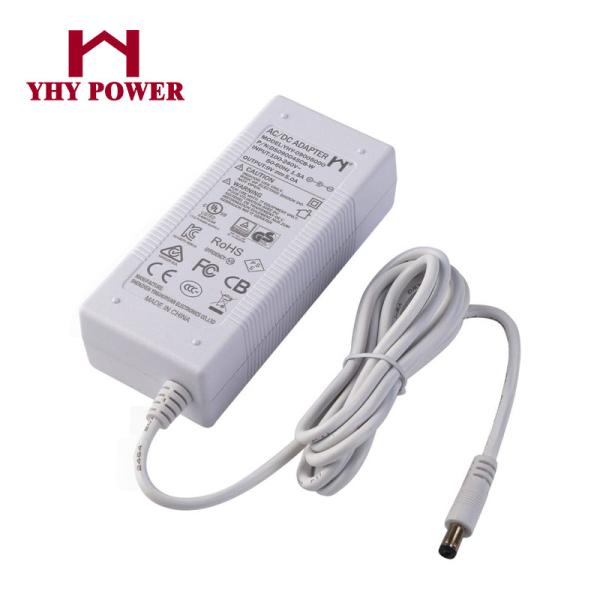

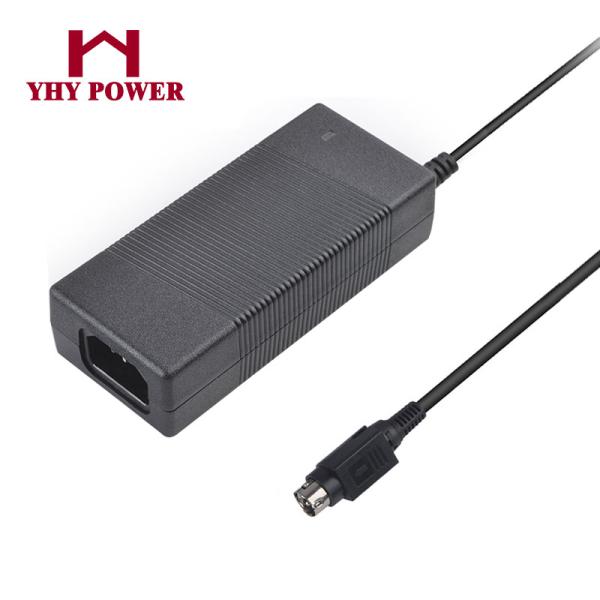

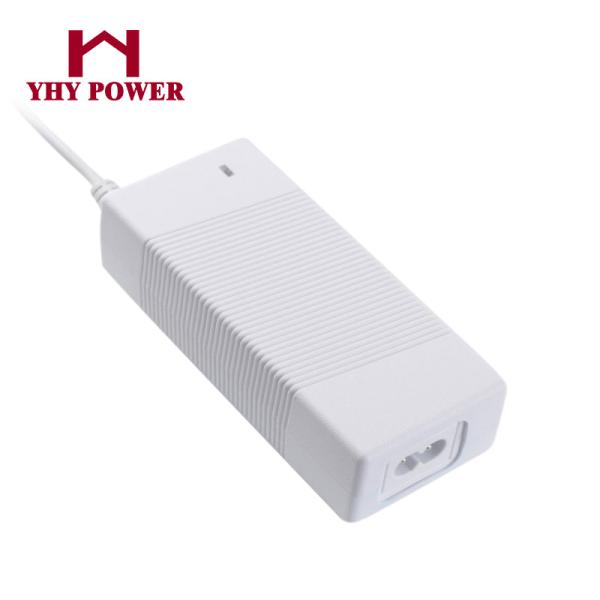

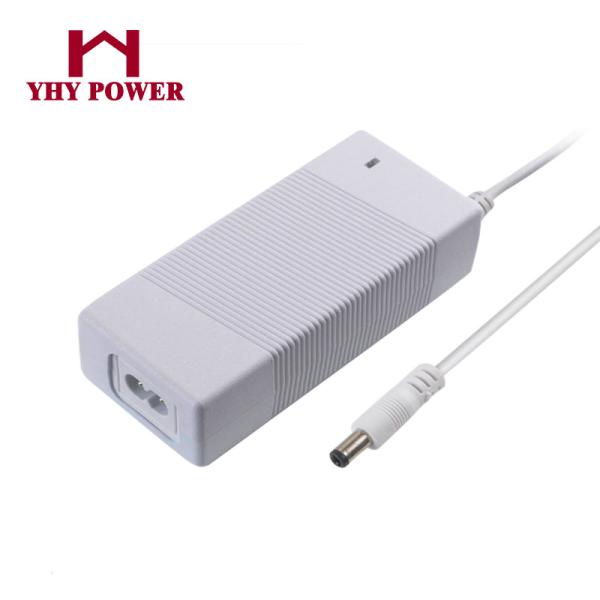

12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
YHY
Model Number :
YHY-126YYYYY
Supply Ability :
450,000 PCS/month
Packaging Details :
Brown box+ carton
MOQ :
100
Price :
Negotiable
Certification :
UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
12-14 workdays after receipt of your oder
Output Type :
DC
Connection :
Desktop
product name :
12.6v li-ion charger
Input voltage :
100V-240V
Output voltage :
12.6V
Output current :
1-10A
AC inlet :
C6 C8 C14 (optional)
DC connector :
Male OD5.5mm*ID2.1mm*L10mm
DC cabel length :
1200mm
Warranty :
3years
Certificate :
CE ROHS UL GS KC FCC SAA
EMC&LVD :
YES
Port :
shenzhen
Description

12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion charger

Product Description

INPUT CHARACTERISTICS:

Rated Voltage:100~240Vac,Rated Frequency: 50/60Hz.

Variation Range:90-264Vac,Variation Frequency:47-63Hz

No-load power consumption

0.21W Max.At115Vac/230Vac input.

OUTPUT CHARACTERISTICS:

Voltage:12.6vdc Rated. Load: 1~4A Output power:12.6~60Watt

Efficiency:≥88%

Desktop type Series Max. Power Output Current
YHY-DS012S

12W

 0.1~1A
YHY-DS036S 36W 0.1~3A
YHY-DS072S 60W 0.1~6A
YHY-DS100S 100W 0.1~8.3A
YHY-DS120S 120W 0.1~10A
YHY-DS150S 150W 0.1~12.5A

PROTECTION FUNCTION:

Short circuit Protection

Over current Protection

Over Voltage Protection

SAFETY AND EMI REQUIREMENT:

HI-POT TEST

HI-POT---A IEC 320 3pin primary to secondary ( FG ) 1700Vac 5mA 1min

HI-POT---B IEC 320 2pin primary to secondary 3000Vac 5mA 1min

EMI STANDARD

FCC part 15 : Class B for radiated and conducted emissions

EN55022:2010 , Class B for radiated and conducted emissions

Safety Certification Standards

Trademark

Standard
UL/CUL

UL 60950
FCC

47CFR FCC Part15
CE

EMC&LVD
GS

EN60950
PSE EN60950
SAA

AS/NZS 60950.1:2011 IncA1
C-Tick EN60950
KC/KCC EN60950
OTHERS ROHS / DOE VI / Class2

12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c

DC plug

Below standard dc tip size for your reference,customized dc jack also can be acceptable,pls send detail drawing to: may at yhypower.com

12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c

12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c

AC power cord

PLS CHOOSE THE POWER CORD WHICH SUIT FOR YOUR TARGET MARKET,PLS CONTACT US IF NEED HELP.

12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c

Company Information

Welcom to Shenzhen YingHuiYuan electronics co.,ltd

1.Manufacturers of power supply,specialized in ac/dc power adapter

2.Located in ShenZhen,mainland China,300-600 employees.

3.OEM/ODM acceptable.

4.35% export to Western Europe,35% to North America and 25% to domestic market.

12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c

12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c

Packaging & Shipping

1.Express Freight for small quantity via DHL UPS or TNT
2.Ship via air
3.Ship via sea
ITEMS QTY(EA) Lead Time(workdays
samples <10 3
mass orders 500~1K 6~8
1K~5K 10~12
5K~10K 18~20
10K~30K 22~25
REMARK:data of lead time for reference,pls contact sales if need details.

12.6 volt ac/dc power supply 12.6v5a chargers 12.4v 12.5v 12.6v 1.5a 1a 2a 2 amp 2.5a 3a 4a ac dc adapter 12.6v li-ion c
