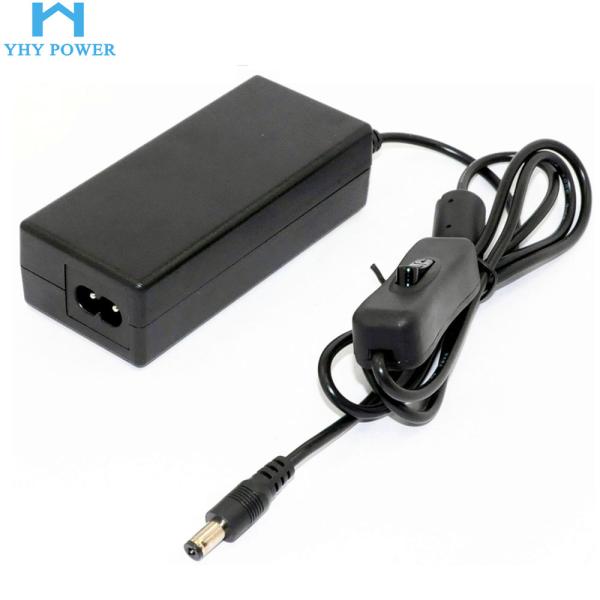

Desktop Power Charger 12.6V 2A 2000ma charger li-ion Battery charger with KC safety
Desktop Power Charger 12.6V 2A 2000ma charger li-ion Battery charger with KC safety
Desktop Power Charger 12.6V 2A 2000ma charger li-ion Battery charger with KC safety
Desktop Power Charger 12.6V 2A 2000ma charger li-ion Battery charger with KC safety
Desktop Power Charger 12.6V 2A 2000ma charger li-ion Battery charger with KC safety
Desktop Power Charger 12.6V 2A 2000ma charger li-ion Battery charger with KC safety
Specifications
Brand Name :
YHY
Model Number :
YHY-12602000
Place of Origin :
Guangdong, China (Mainland)
Supply Ability :
450,000 PCS/month
Packaging Details :
Brown box+ carton
MOQ :
100
Price :
Negotiable
Certification :
UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
12-14 workdays after receipt of your oder
Use :
Standard Battery
Input voltage :
100V-240V
Output voltage :
12.6V
Output current :
2A
Output power :
25W
DC cable :
1.2m
Usage :
Charging
Port :
shenzhen
Description

12v 3a / 12.6v 2a 3a universal laptop lifepo4 li-ion power supply battery charger with kc

Detailed Images
NO.ItemsSpecification
Input CharacteristicsInput voltage100-240V~, 50/60Hz
Max. Input current2.5A
Output CharacteristicsMax. Output VoltageAs below list
Max. Output CurrentAs below list
Battery Capacity1000mAh Min
Efficiency80% Min
Power IndicationLED=Red: In charging
LED=Green: Fully charged
Charging Supervision and Protection MechanismOver Voltage ProtectionYES
Output Reverse ProtectionYES
CC CVYES
EnvrionmentOperation Temperature32-140F
Operation Humidity20-85%
Storage Temperature40-80F
Storage Humidity10-95%
MechanicalDimension---
AC InletC6 / C8 / C14 / Two Cord
Weight300G
Output Cable1.2m 2464 20AWG
Connector5.5x2.1mm (Customizable )
Charge Instruction
1. Make sure your AC supply source is 100-240V and your battery pack match with the battery requirement.
2. Connect the charger to the AC outlet. LED=Green: it means power on and no battery connected.
3. Connect DC output to battery pack terminals. LED turn into red. It means in charging.
4. When LED turns Green, the battery pack is fully charged. You can charge next battery pack or switch off the power.
Notice
1. Make sure your battery voltage match with your charger.
2. Always place the charger in well-ventilated, dry environment and indoor use only.
3. Never charge other type batteries except Li-ION/Polymer.
4. Subject to change without prior notice, please contact us for the latest information.
5. Indoor used only, never expose the charger to water such as rain and splash.
6. Make sure good ventilation is provided when charger operation. Never place the charger near radiator, heat register or similar heat source when in charging.


VoltageINPUTOUTPUT
CurrentPower
12.6V-15V Series100-240VAC500mA7W
1.0A13W
1.5A20W
2.0A30W
2.5A35W
3.0A45W
4.0A60W
5.0A70W
6.0A90W
7.0A100W
