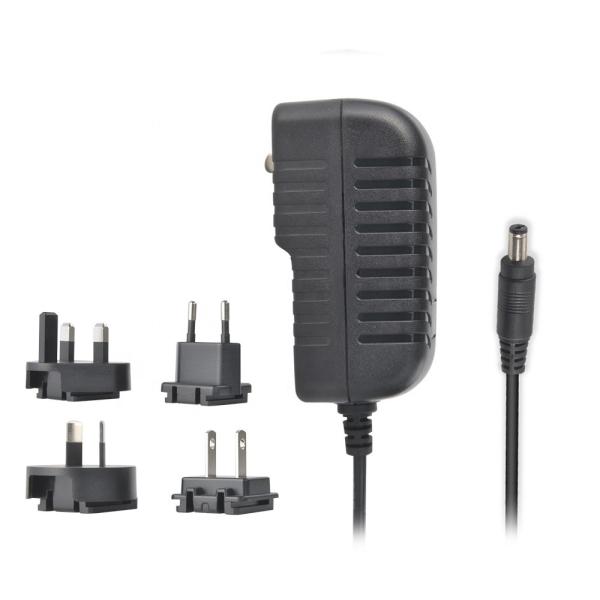

Euro Ac Dc Wall Mount Ac Dc Power Adapters With 3 Years Warranty
Euro Ac Dc Wall Mount Ac Dc Power Adapters With 3 Years Warranty
Euro Ac Dc Wall Mount Ac Dc Power Adapters With 3 Years Warranty
Euro Ac Dc Wall Mount Ac Dc Power Adapters With 3 Years Warranty
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
YHY
Model Number :
YHY-12001000
Certification :
UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65
Supply Ability :
450,000 PCS/month
Packaging Details :
Brown box+ carton
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
12-14 workdays after receipt of your oder
product name :
cctv power supply
output :
12v 1a 12w
plug type :
AU EU US UK
Color :
Black
warranty :
3 years
DC tip :
OD5.5*ID2.5*L10mm(center positive)
EMC :
YES
Port :
shenzhen
Description

AC DC Power Adapters Battery Euro Wall Mount Adaptor 1000ma Receptacle Wall 12v/1a Cctv Supply 12V 1A

Details
Specifications
Input Voltage Range VAC 100-240Vac 50/60Hz
Input Current(Max) A 0.5A(100VAC Input)
Power Factor - Meets EN61000-3-2
Temperature Coefficient ℃ ±0.05%/℃
Voltage Accuracy % ±2%
Total Regulation - ±5%
Ripple & Noise mV 120mV
Short Circuit Protection % Continuous - hiccup mode
Over Voltage Protection ℃ 110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load - 88% min
Operation Temperature - 0 to +60℃, derating linearly to 50% load above 40℃
Storage Temperature - -10 to +85℃
Humidity (non condensing) - 10-90% RH
Cooling - Convection
Withstand Voltage - Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)
Vibration (non condensing) - 23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock - < 196.1 m/s2 (20G)
Safety Agency Certifications - UL60950-1, EN609501-1, IEC60950-1, CE Mark
DOE Regulation - VI
Off-Load Power Consumption mW <210mV
Conducted & Radiated EMI - EN55023-B, FCC Class B
Immunity - EN55024
Weight G ≈110g
Size(WxLxH) mm 68x40x48mm
Cable Length and Thickness mm 1200mm
AC Input Connector - AU EU UK US KR JP AC Plug (Accept more request)
Output Connector mm 5.5x2.1mm (Accept more request)
MTBF 100%, 25℃ Hours 50,000 hours
Warranty Years 2 years

Output Ratings
Model Output Output Max. Power Max. DOE VI
(V) (A) (W)
YHY-05002500 5 2.5 12.5 √
YHY-06001500 6 1.5 9 √
YHY-09001300 9 1.3 12 √
YHY-10001200 10 1.2 12 √
YHY-12001000 12 1 12 √
YHY-15000800 15 0.8 12 √
YHY-18000600 18 0.6 12 √
YHY-19000600 19 0.6 12 √
YHY-20000600 20 0.6 12 √
YHY-24000500 24 0.5 12 √
YHY-30000400 30 0.4 12 √
