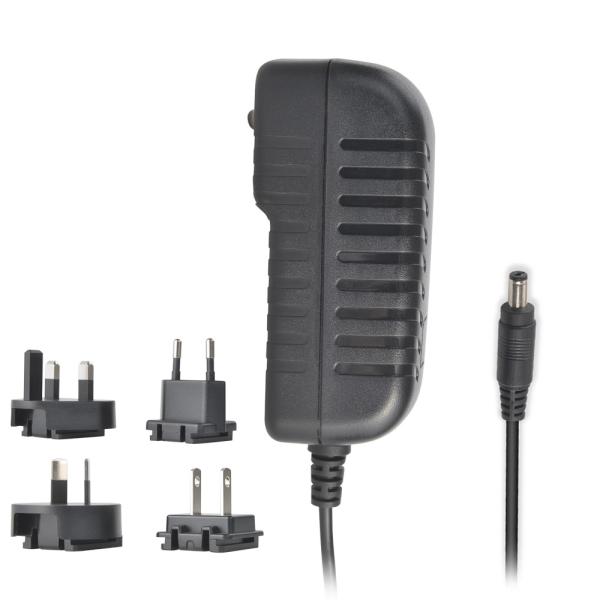

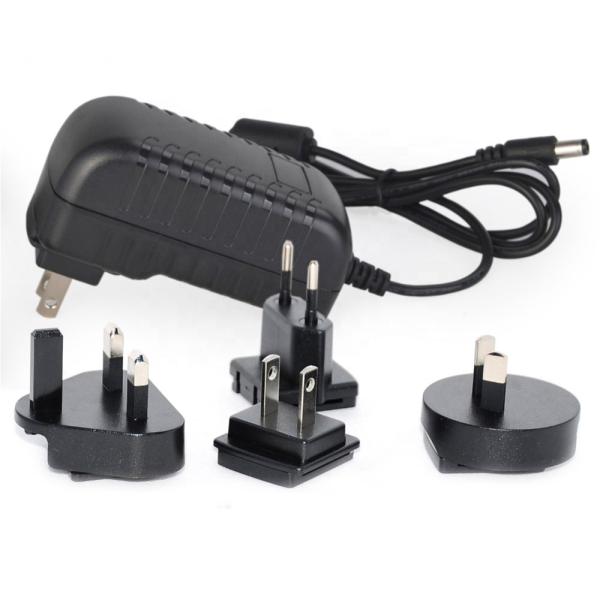

2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products
2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products
2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products
2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products
2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products
2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products
2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products
2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
YHY
Model Number :
YHY-12002500
Certification :
UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65
Supply Ability :
450,000 PCS/month
Packaging Details :
Brown box+ carton
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
12-14 workdays after receipt of your oder
Output Type :
DC
Connection :
Plug In
product name :
interchangeable 12v-2.5a adapter
Output :
12v 2.5a 30w
Input :
AC 100-240v 50-60hz
EMC :
YES
Efficiency :
88%
DC connector :
2.1*5.5mm(optional)
DC wire :
2464 22AWG 1.2M(4Feet)
AC inlet :
C6 C8 C14 (optional)
Usage :
Electronic Products
Port :
ShenZhen
Description

pse saa ac adapter 12v 2.5a 2500ma power supply transformer interchangeable 12v-2.5a adapter

Details
Specifications:

Input Voltage Range 100-240Vac 50/60Hz
Inrush Current 110VAC, 25℃
Input Current(Max) 1.5A Max. (100VAC Input)
Power Factor Meets EN61000-3-2
Safety Agency Certifications UL62368,UL60950-1, EN609501-1, IEC60950-1, CE Mark
Off-Load Power Consumption <210mV
Conducted & Radiated EMI EN55023-B, FCC Class B
Cable Length and Thickness 1200mm
Output Connector 5.5x2.1mm (Accept more request)
MTBF 100%, 25℃ 50,000 hours
Warranty 2 years
POWER MODEL INPUT OUTPUT AC
Voltage Current Plug-in Desktop
30W Series YHY-05004000 100-240VAC 5V 4.0A AU
EU
UK
US
KR
JP
Interchangeable		 C6
C8
C14
Two Cord
YHY-06004000 6V 4.0A
YHY-09003000 9V 3.0A
YHY-12002500 12V 2.5A
YHY-15002000 15V 2.0A
YHY-18001700 18V 1.7A
YHY-24001250 24V 1.25A
YHY-30001000 30V 1.0A

2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products

POWER MODEL INPUT OUTPUT AC
Voltage Current Plug-in
5W Series YHY-05001000 100-240VAC 5V 1.0A AU
EU
UK
US
KR
JP
Interchangeable
YHY-06001000 6V 1.0A
YHY-09000600 9V 0.6A
YHY-12000500 12V 0.5A
YHY-15000400 15V 0.4A
YHY-24000250 24V 0.25A
12W Series YHY-05002500 100-240VAC 5V 2.5A AU
EU
UK
US
KR
JP
Interchangeable
YHY-06002000 6V 2.0A
YHY-09001300 9V 1.3A
YHY-12001000 12V 1.0A
YHY-24000500 24V 0.5A
YHY-30000400 30V 0.4A
24W Series YHY-05003500 100-240VAC 5V 3.5A AU
EU
UK
US
KR
JP
Interchangeable
YHY-06003000 6V 3.0A
YHY-09002600 9V 2.6A
YHY-12002000 12V 2.0A
YHY-15001600 15V 1.6A
YHY-18001300 18V 1.3A
YHY-24001000 24V 1.0A
YHY-30000800 30V 0.8A
36W Series YHY-05004000 100-240VAC 5V 4.0A AU
EU
UK
US
KR
JP
Interchangeable
YHY-06004000 6V 4.0A
YHY-09004000 9V 4.0A
YHY-12003000 12V 3.0A
YHY-15002400 15V 2.4A
YHY-18002000 18V 2.0A
YHY-24001500 24V 1.5A
YHY-30001200 30V 1.2A
48W Series YHY-05005000 100-240VAC 5V 5.0A AU
EU
UK
US
KR
JP
Interchangeable
YHY-06005000 6V 5.0A
YHY-09004000 9V 4.0A
YHY-12004000 12V 4.0A
YHY-15003200 15V 3.2A
YHY-18002600 18V 2.6A
YHY-24002000 24V 2.0A
YHY-30001600 30V 1.6A
60W Series YHY-05006000 100-240VAC 5V 6.0A AU
EU
UK
US
KR
JP
Interchangeable
YHY-06006000 6V 6.0A
YHY-09005000 9V 5.0A
YHY-12005000 12V 5.0A
YHY-15004000 15V 4.0A
YHY-18003300 18V 3.3A
YHY-24002500 24V 2.5A
YHY-30002000 30V 2.0A

Company Information

2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products

Shenzhen Yinghui Yuan Electronics Co.,Ltd is a leading manufacturer of power supplies in China

-Since 2007

-Real Service From Real PeopleTM

-Global certifications,ISO 9001 Quality management

-More Than 2000 clients from all over the world

Our products are widely used by led lighting,3D Printer,Laptop,loudspeaker box,digital products,house-hold appliances,security products,etc

2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products2500ma 12v Power Supply Adapter Plug In Connection For Electronic Products

Our Services
  • Your inquiry related to our products or prices will be replied in 24hrs.
  • Well-trained and experienced staffs to answer all your enquires in fluent English
  • OEM&ODM, any your custo mized lightings we can help you to design and put into product.
  • Distributoership are offered for your unique design and some our current models
  • Protection of your sales area, ideas of design and all your private information
