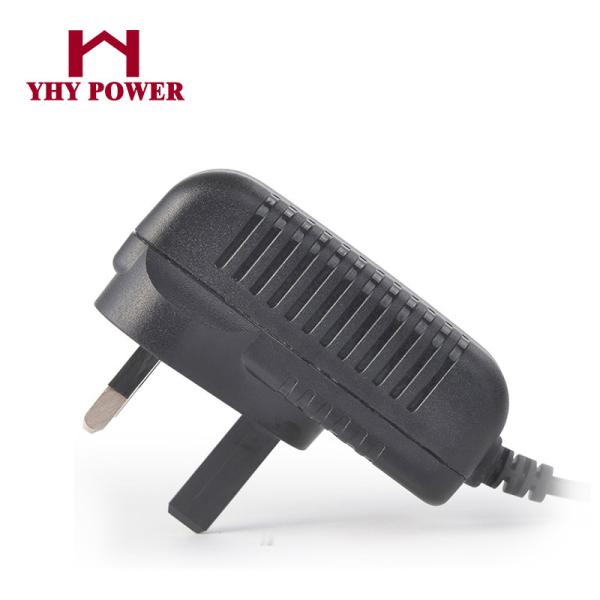

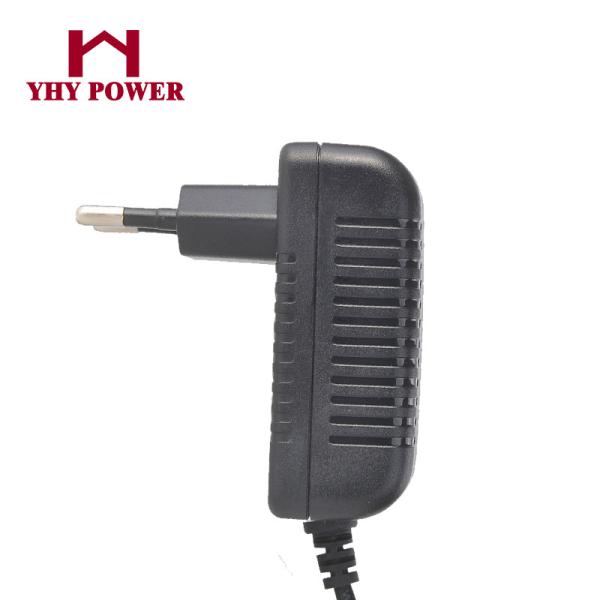

Product Description for ul cul vi approval li ion dc battery charger 7.2v 7.4v 1a 1.2a 1200ma 1.5a 1500ma for rc helicopter drones and robotics
NO. | Items | Specification |
Input Characteristics | Input voltage | 100-240V~, 50/60Hz |
Min. Input current | 0.5A | |
Output Characteristics | Max. Output Voltage | As below list |
Max. Output Current | As below list | |
Battery Capacity | 1000mAh Min | |
Efficiency | 80% Min | |
Power Indication | LED=Green: Fully charged | |
LED=Red: In charging | ||
Charging Supervision and Protection Mechanism | Over Voltage Protection | YES |
Output Reverse Protection | YES | |
CC CV | YES | |
Envrionment | Operation Temperature | 32-140F |
Operation Humidity | 20-85% | |
Storage Temperature | 40-80F | |
Storage Humidity | 10-95% | |
Mechanical | Dimension | --- |
AC Plug | EU US UK AU KR JP CN | |
Weight | 110G | |
Output Cable | 1.2m 2464 24AWG | |
Connector | 5.5x2.1mm (Customizable ) | |
Charge Instruction | ||
1. Make sure your AC supply source is 100-240V and your battery pack match with the battery requirement. | ||
2. Connect the charger to the AC outlet. LED=Green: it means power on and no battery connected. | ||
3. Connect DC output to battery pack terminals. LED turn into red. It means in charging. | ||
4. When LED turns Green, the battery pack is fully charged. You can charge next battery pack or switch off the power. | ||
Notice | ||
1. Make sure your battery voltage match with your charger. | ||
2. Always place the charger in well-ventilated, dry environment and indoor use only. | ||
3. Never charge other type batteries except Li-ION/Polymer. | ||
4. Subject to change without prior notice, please contact us for the latest information. | ||
5. Indoor used only, never expose the charger to water such as rain and splash. | ||
6. Make sure good ventilation is provided when charger operation. Never place the charger near radiator, heat register or similar heat source when in charging. |
Key Market Segments & Applications:
We have DC 5-36V AND, 0.1A-10A, 3W-120W adapters.Lead Trend IC,YHY uses world famous brand IC from leadtrend who is an industry leader,Applied to LED, LCD, guitar, Voice robot, POS machine, printer, toy car, Smart home, loudspeaker, Battery, massager, wireless microphone, LED Showcase, toy plane, massager, laptop etc.
Shenzhen Yinghui Yuan Electronics Co.,Ltd is a leading manufacturer of power supplies in China
-Since 2007
-Real Service From Real PeopleTM
-Global certifications,ISO 9001 Quality management
-More Than 2000 clients from all over the world
Our products are widely used by led lighting,3D Printer,Laptop,loudspeaker box,digital products,house-hold appliances,security products,etc
Qty (pcs) | Delivery Time (working days) |
less than 100 | 5-7 |
100-800 | 7-10 |
800-3K | 10-12 |
3K-10K | 15-18 |
10K-20k | 20-22 |
*Data is a reference for buyer, Specification situation will be given to you after asking us. | |
Remark | |
1.Samples (less than 10pcs) can be provied, lead time with 3days. | |
2.Please carefully check all the details before you take a order. |
1.Q: Do you offer samples for testing?
A: Yes,we offer samples for testing with cost paid by buyer.Besides we welcome our customers to take sample as we believe seeing is believing.
2.Q: What's your MOQ?
A:we have no moq if stocked and 2000pcs if OEM order.
3.Q:Do you have warranty?
A :Yes,we have warranty of 3 year period.
4.Q:Do you have certificates for your products?
A:Yes,we have UL/CUL,FCC,RoHS,CE,KC,SAA,TUV GS,PSE,KCC,NOM Certifications.
5. Can you design the new housing based on our design?
A: We can design. one week make up sample. 30days sample test 45days start to MP?
6. What's the main product of you factory?
A: We are the supplier for 0-500W global power adapter, including wall plug adapter,usb adapter/charger,desktop adapter, metal case switching power supply,led power supply, waterproof power supply,led driver,open frame power supply and ect.
7. Do you have some new product coming?
A: We will design more and more new product with differenct high quality.
8.Q: What's your payment item?
A: Our standard payment is T/T in advance, Credit Card , E-Checking, Paypal and Western Union.
