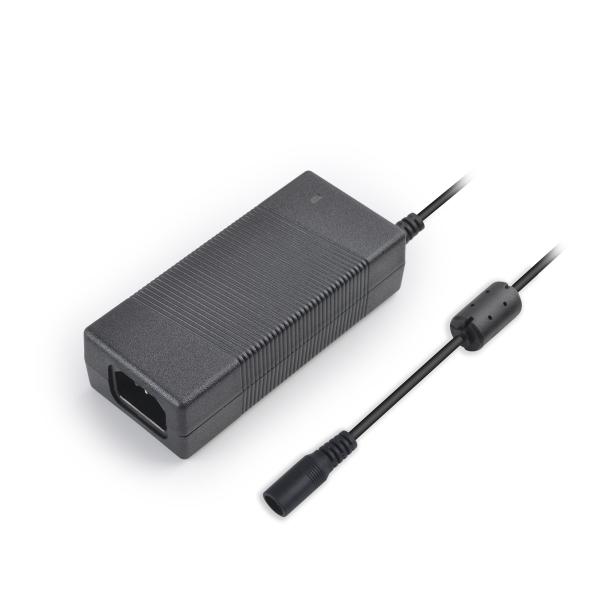

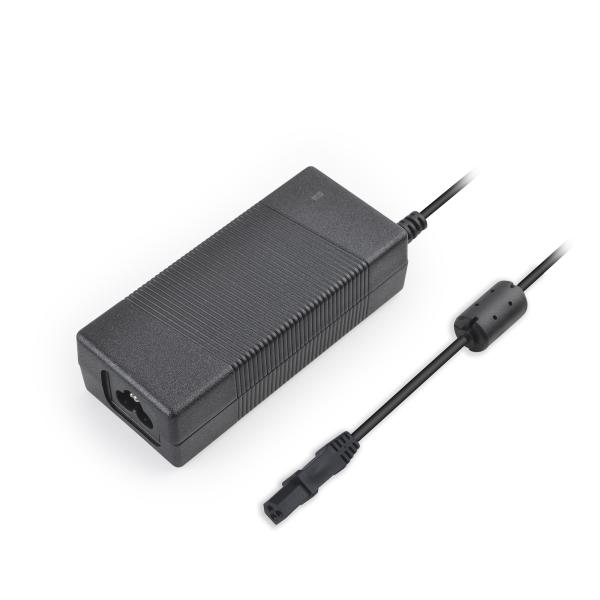

UL Approval Level Vi Power Supply Durable For Wireless Microphone
UL Approval Level Vi Power Supply Durable For Wireless Microphone
UL Approval Level Vi Power Supply Durable For Wireless Microphone
UL Approval Level Vi Power Supply Durable For Wireless Microphone
UL Approval Level Vi Power Supply Durable For Wireless Microphone
UL Approval Level Vi Power Supply Durable For Wireless Microphone
Specifications
Brand Name :
YHY
Model Number :
YHY-12003000
Certification :
UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65
Place of Origin :
Guangdong
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
450,000 PCS/month
Delivery Time :
12-14 workdays after receipt of your oder
Packaging Details :
Brown box+ carton
Power :
36w
Output Voltage :
12v 3a
Housing :
plastic
Application :
LED/AUDIO ETC
Warranty :
3 years
MTBF :
200000 HOURS
Color :
Black
ac inlet :
c14
Description

UL Level VI Hot selling ac dc Universal Power Adapter Power Supply 30v 24vdc 18 v 16v 12v 3a transformer 12v 3000ma

Specifications
Input Voltage Range VAC 100-240Vac 50/60Hz
Inrush Current at 110VAC, 25℃ A 30A
Input Current(Max) A 1.5A(100VAC Input)
Power Factor - Meets EN61000-3-2
Temperature Coefficient ℃ ±0.05%/℃
Voltage Accuracy % ±2%
Adjustment Range - None
Min. Load A None
Total Regulation - ±5%
Ripple & Noise mV 120mV
Short Circuit Protection % Continuous - hiccup mode
Over Voltage Protection ℃ 110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load - 88% min
Operation Temperature - 0 to +60℃, derating linearly to 50% load above 40℃
Storage Temperature - -10 to +85℃
Humidity (non condensing) - 10-90% RH
Cooling - Convection
Withstand Voltage - Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)
Vibration (non condensing) - 23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock - < 196.1 m/s2 (20G)
Safety Agency Certifications - UL60950-1, EN609501-1, IEC60950-1, CE Mark
DOE Regulation - VI
Off-Load Power Consumption mW <210mV
Conducted & Radiated EMI - EN55023-B, FCC Class B
Immunity - EN55024
Weight G 280g
Size(WxLxH) mm 115x50x30mm
Cable Length and Thickness mm 1200mm
AC Input Connector - IEC 320-C8
Output Connector mm 5.5x2.1mm (Accept more request)
MTBF 100%, 25℃ Hours 200,000 hours
Warranty Years 3years

UL Approval Level Vi Power Supply Durable For Wireless MicrophoneUL Approval Level Vi Power Supply Durable For Wireless MicrophoneUL Approval Level Vi Power Supply Durable For Wireless MicrophoneUL Approval Level Vi Power Supply Durable For Wireless MicrophoneUL Approval Level Vi Power Supply Durable For Wireless MicrophoneUL Approval Level Vi Power Supply Durable For Wireless Microphone

Packaging & Shipping

UL Approval Level Vi Power Supply Durable For Wireless Microphone

Shipment:
  • The delivery time is strarting from we confirm the payment.
  • In case of delay the delivery,so hope you charge it as soon as possible .
  • Exact lead time is based on your amounts and fact. so you'd better show me your exact qty,not uncertain
  • Some delivery time as follow:

  • Qty

    (pcs)

    Delivery Time

    (working days)
    less than 100 5-7
    100-800 7-10
    800-3K 10-12
    3K-10K 14-16
    10K-20k 15-18
    *Data is a reference for buyer, Specification situation will be given to you after asking us.
    Remark
    1.Samples (less than 10pcs) can be provied, lead time with 3days.
    2.Please carefully check all the details before you take a order.

Company Information

UL Approval Level Vi Power Supply Durable For Wireless MicrophoneUL Approval Level Vi Power Supply Durable For Wireless MicrophoneUL Approval Level Vi Power Supply Durable For Wireless MicrophoneUL Approval Level Vi Power Supply Durable For Wireless Microphone

Our Services
  • Your inquiry related to our products or prices will be replied in 24hrs.
  • Well-trained and experienced staffs to answer all your enquires in fluent English
  • OEM&ODM, any your custo mized lightings we can help you to design and put into product.
  • Distributoership are offered for your unique design and some our current models
  • Protection of your sales area, ideas of design and all your private information
FAQ

1.Q: Do you offer samples for testing?

A: Yes,we offer samples for testing with cost paid by buyer.Besides we welcome our customers to take sample as we believe seeing is believing.

2.Q: What's your MOQ?
A:we have no moq if stocked and 2000pcs if OEM order.

3.Q:Do you have warranty?
A :Yes,we have warranty of 3 year period.

4.Q:Do you have certificates for your products?
A:Yes,we have UL/CUL,FCC,RoHS,CE,KC,SAA,TUV GS,PSE,KCC,NOM Certifications.

5. Can you design the new housing based on our design?
A: We can design. one week make up sample. 30days sample test 45days start to MP?

6. What's the main product of you factory?
A: We are the supplier for 0-500W global power adapter, including wall plug adapter,usb adapter/charger,desktop adapter, metal case switching power supply,led power supply, waterproof power supply,led driver,open frame power supply and ect.

7. Do you have some new product coming?
A: We will design more and more new product with differenct high quality.

8.Q: What's your payment item?

A: Our standard payment is T/T in advance, Credit Card , E-Checking, Paypal and Western Union.
