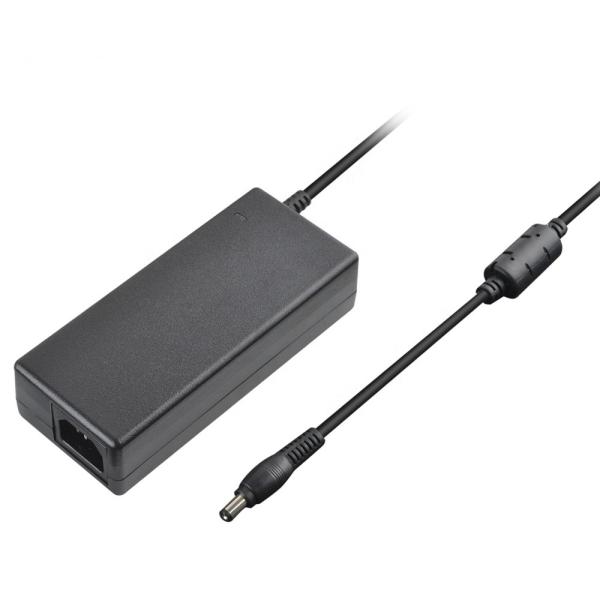

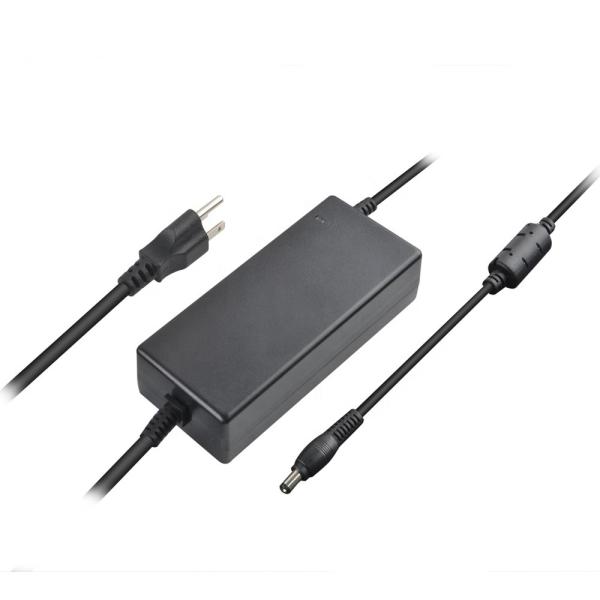

Led Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug Adapter
Led Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug Adapter
Led Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug Adapter
Led Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug Adapter
Led Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug Adapter
Led Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug Adapter
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
YHY
Model Number :
YHY-24003750
Supply Ability :
450,000 PCS/month
Packaging Details :
Brown box+ carton
MOQ :
100
Price :
Negotiable
Certification :
UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
12-14 workdays after receipt of your oder
Output current :
3.75A
Output power :
90W
DC connector Dimession :
OD5.5*ID2.1*L10mm
DC wire :
2464 18AWG
DC cable :
1.2m
Usage :
Switching
Frequency :
50/60Hz
Port :
shenzhen
Description

24 volt led transformer AC DC Power Supply Adapter 24V 3.75A 90W ce fcc rohs ul laptop psu adaptor dc24v

Product Description

Specifications
Input Voltage Range VAC 100-240Vac 50/60Hz
Input Current(Max) A 2.5A(100VAC Input)
Power Factor - Meets EN61000-3-2
Temperature Coefficient ℃ ±0.05%/℃
Voltage Accuracy % ±2%
Adjustment Range - None
Min. Load A None
Total Regulation - ±5%
Ripple & Noise mV 120mV
Short Circuit Protection % Continuous - hiccup mode
Over Voltage Protection ℃ 110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load - 88% min
Operation Temperature - 0 to +60℃, derating linearly to 50% load above 40℃
Storage Temperature - -10 to +85℃
Humidity (non condensing) - 10-90% RH
Cooling - Convection
Withstand Voltage -

Input to Ground 1.5kVAC, Input to Output 3kVAC

(Output is connected to Ground)
Vibration (non condensing) - 23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock - < 196.1 m/s2 (20G)
Safety Agency Certifications - UL62368,UL1310,UL60950-1, EN609501-1, IEC60950-1, CE Mark
DOE Regulation -

VI
Off-Load Power Consumption mW <210mV
Conducted & Radiated EMI - EN55023-B, FCC Class B
Immunity - EN55024

POWER MODEL INPUT OUTPUT AC
Voltage Current Desktop
90W Series YHY-05007500 100-240VAC 5V 7.5A C6
C8
C14
Two Cord
YHY-06007500 6V 7.5A
YHY-09007500 9V 7.5A
YHY-12007500 12V 7.5A
YHY-15006000 15V 6.0A
YHY-18005000 18V 5.0A
YHY-24003750 24V 3.75A
YHY-30003000 30V 3.0A

Led Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug AdapterLed Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug AdapterLed Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug AdapterLed Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug AdapterLed Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug AdapterLed Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug Adapter

Company Information

Led Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug Adapter

Shenzhen Yinghui Yuan Electronics Co.,Ltd is a leading manufacturer of power supplies in China

-Since 2007

-Real Service From Real PeopleTM

-Global certifications,ISO 9001 Quality management

-More Than 2000 clients from all over the world

Our products are widely used by led lighting,3D Printer,Laptop,loudspeaker box,digital products,house-hold appliances,security products,etc

Led Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug AdapterLed Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug AdapterLed Transformer 24v AC DC Power Adapter , 3.75A 90W AC DC Plug Adapter

Our Services
  • Your inquiry related to our products or prices will be replied in 24hrs.
  • Well-trained and experienced staffs to answer all your enquires in fluent English
  • OEM&ODM, any your custo mized lightings we can help you to design and put into product.
  • Distributoership are offered for your unique design and some our current models
  • Protection of your sales area, ideas of design and all your private information
