91w 13v 7a Ac To Dc Power Supply Adapter 134*56*38mm With 2 Years Warranty
91w 13v 7a Ac To Dc Power Supply Adapter 134*56*38mm With 2 Years Warranty
91w 13v 7a Ac To Dc Power Supply Adapter 134*56*38mm With 2 Years Warranty
91w 13v 7a Ac To Dc Power Supply Adapter 134*56*38mm With 2 Years Warranty
91w 13v 7a Ac To Dc Power Supply Adapter 134*56*38mm With 2 Years Warranty
91w 13v 7a Ac To Dc Power Supply Adapter 134*56*38mm With 2 Years Warranty
91w 13v 7a Ac To Dc Power Supply Adapter 134*56*38mm With 2 Years Warranty
91w 13v 7a Ac To Dc Power Supply Adapter 134*56*38mm With 2 Years Warranty
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
YHY
Model Number :
YHY-13007000
Supply Ability :
450,000 PCS/month
Packaging Details :
Brown box+ carton
MOQ :
100
Price :
Negotiable
Certification :
UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
12-14 workdays after receipt of your oder
Output Power :
91w
Output Voltage :
13V
Output Frequency :
50/60Hz
Output Current :
7a
Input current :
1.2A
warranty :
2 years
size :
134*56*38mm
Port :
SHENZHEN
Description

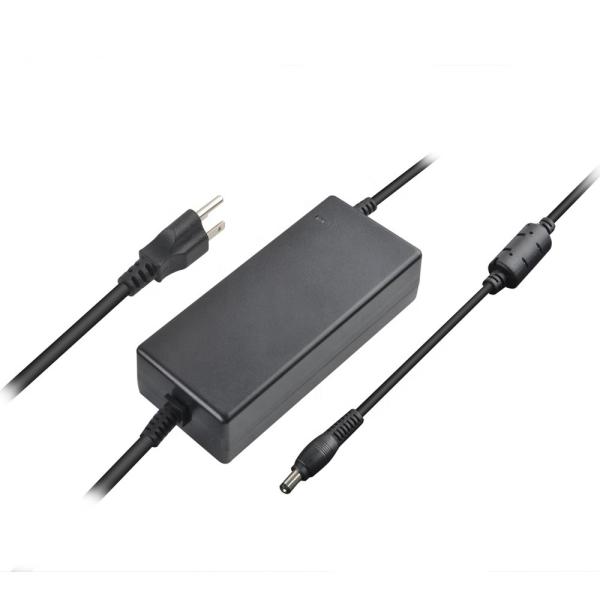

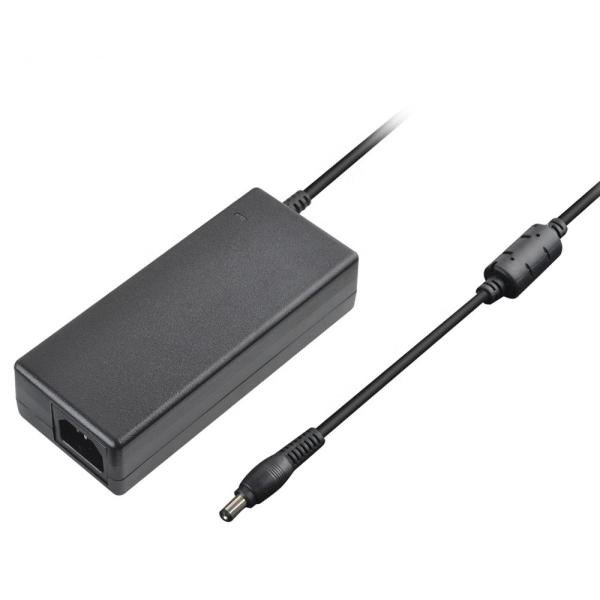

Power Adapter input 100-240v ac 50-60hz switching power supply 91w 13v 7a 91w locking plug DC connector 5521 5525 2.1mm

Product Description

Specifications
Input Voltage Range VAC 100-240Vac 50/60Hz
Input Current(Max) A 2.5A(100VAC Input)
Power Factor - Meets EN61000-3-2
Temperature Coefficient ℃ ±0.05%/℃
Voltage Accuracy % ±2%
Adjustment Range - None
Min. Load A None
Total Regulation - ±5%
Ripple & Noise mV 120mV
Short Circuit Protection % Continuous - hiccup mode
Over Voltage Protection ℃ 110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load - 88% min
Operation Temperature - 0 to +60℃, derating linearly to 50% load above 40℃
Storage Temperature - -10 to +85℃
Humidity (non condensing) - 10-90% RH
Cooling - Convection
Withstand Voltage -

Input to Ground 1.5kVAC, Input to Output 3kVAC

(Output is connected to Ground)
Vibration (non condensing) - 23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock - < 196.1 m/s2 (20G)
Safety Agency Certifications - UL62368,UL1310,UL60950-1, EN609501-1, IEC60950-1, CE Mark
DOE Regulation -

VI
Off-Load Power Consumption mW <210mV
Conducted & Radiated EMI - EN55023-B, FCC Class B
Immunity - EN55024

POWER MODEL INPUT OUTPUT AC
Voltage Current Desktop
90W Series YHY-05007500 100-240VAC 5V 7.5A C6
C8
C14
Two Cord
YHY-06007500 6V 7.5A
YHY-09007500 9V 7.5A
YHY-12007000 12V 7.0A
YHY-15006000 15V 6.0A
YHY-18005000 18V 5.0A
YHY-24003750 24V 3.75A
YHY-30003000 30V 3.0A
