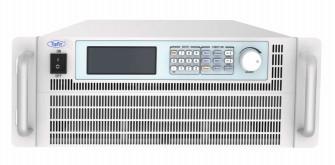

ODM DC Power Supplies Programmable AC Source Overvoltage Protection
ODM DC Power Supplies Programmable AC Source Overvoltage Protection
Specifications
Brand Name :
Topfer
Model Number :
TPD-600-30
Place of Origin :
China
MOQ :
one set
Price :
to be discussed
Payment Terms :
T/T
Supply Ability :
10 sets /15days
Delivery Time :
1 to 2 weeks
Packaging Details :
wooden crate
Input Voltage :
190-265VAC
Remote Compensation :
5V MAX
Cooling Method :
Fan Cooling
Voltage Setting Accuracy :
FS0.05%±RS0.05%
Current Setting Accuracy :
FS0.1%±RS0.1%
Communication Methods :
Standard:RS232/485
Description

The high-power programmable DC power supply can output overvoltage, overcurrent, overpower, and overtemperature protection

Product Features:

  • Wide voltage input range: 200-240VAC (4U input options include 220VAC or 380VAC)
  • Compact size, high power: 7200W/4U
  • Function key operation with an encoder knob
  • Operation modes: CV and CC modes can be freely switched
  • Programmable to set multiple step output voltages
  • Protection against overvoltage, overcurrent, overpower, and overtemperature
  • Communication interfaces: RS232/485/LAN/USB/GPIB
  • Communication protocol: Standard SCPI protocol
  • Analog external interface for remote control of output voltage and current
  • Remote compensation for load line voltage drop
  • LCD display screen showing complete operational status
  • 18 bit ADC/16 bit DAC with voltage resolution of 1mV and current resolution of 1mA

Application Areas:

  • Medical field
  • Electronics field
  • Scientific research field
  • Communication field
  • LED field
  • Home appliance field
  • Aerospace field
  • Automated testing field

Specifications table:

Model Functions TPD-600-30 TPD-600-60 TPD-720-80 TPD-720-60 TPD-720-60 TPD-720-80
Input Voltage 200/380VAC 190/265VAC 200/380VAC 200/380VAC 200/380VAC 200/380VAC
Output Power Range 0-6000W 0-6000W 0-7200W 0-7200W 0-7200W 0-7200W
Output Voltage Range 0-30V 0-60V 0-80V 0-60V 0-60V 0-80V
Output Current Range 0-200A 0-100A 0-150A 0-180A 0-180A 0-150A
Remote Compensation 5V MAX 5V MAX 5V MAX 5V MAX 5V MAX 5V MAX
Voltage Setting Accuracy FS0.05%±RS0.05% FS0.05%±RS0.05% FS0.05%±RS0.05% FS0.05%±RS0.05% FS0.05%±RS0.05% FS0.05%±RS0.05%
Current Setting Accuracy FS0.1%±RS0.1% FS0.1%±RS0.1% FS0.1%±RS0.1% FS0.1%±RS0.1% FS0.1%±RS0.1% FS0.1%±RS0.1%
Net Weight 28KG 16KG 28KG 28KG 28KG 28KG
Dimensions (W*H*D)mm 483*132*610 483*132*610 483*132*610 483*132*610 483*195*660 483*195*660
Protection Functions Overvoltage, overcurrent, overpower, overtemperature, and short circuit protection
Input Fuse 65A, 125VAC/250VAC fast-blow fuse for all models
Communication Methods Standard:RS232/485
Cooling Method Fan Cooling
Operating Environment temp.0-40 C, relative humidity 10% -90% (non-condensing)
