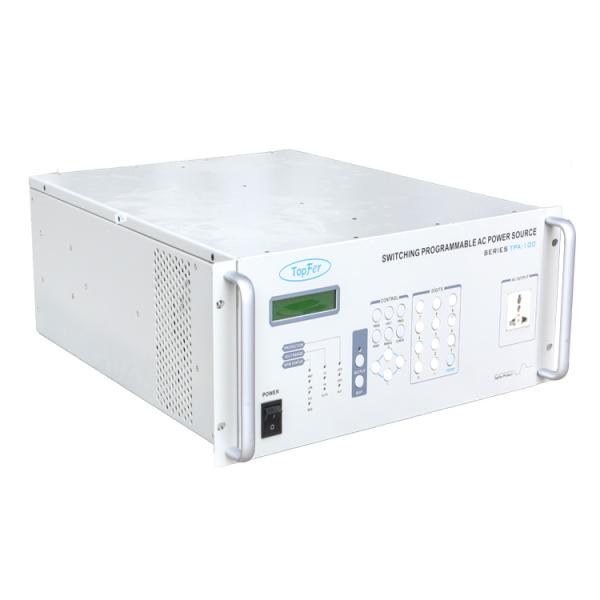

Programmable Variable Power Supply AC Supports Uninterrupted Testing 400Hz
Programmable Variable Power Supply AC Supports Uninterrupted Testing 400Hz
Specifications
Brand Name :
Topfer
Model Number :
TPA-100
Place of Origin :
China
MOQ :
one set
Price :
to be discussed
Payment Terms :
T/T
Supply Ability :
10 sets /30 days
Delivery Time :
1 to 2 weeks
Packaging Details :
wooden crate
Phase :
1Φ
Height :
4u
Crest Factor (Cf) :
3.5
Power :
1/2KVA
Resolution :
0.1V
Accuracy :
<0.1%
Description

The programmable AC power supply supports uninterrupted testing, stable output for various types of power tests, and a range of testing indicators

Output Voltage

  • The variable range is 1-150V/2-300V, with a frequency range of 45-500Hz. It can be programmed for settings suitable for general commercial use (47-63Hz), as well as for aviation or military applications (400Hz), and maritime power usage (250Hz).

Input Characteristics

  • The AC output is 190V-250V, with a frequency range of 47-63Hz. Through active filtering and power factor correction (PFC), the power factor reaches above 0.97, and input current and high-order harmonics can be reduced to achieve energy-saving effects.

Measurement Functions

  • It can measure the output voltage, current, power, peak current, frequency, crest factor, power factor, inrush current, apparent power (VA), etc.

Protection Functions

  • The following protection functions are available:
  1. Over-temperature protection
  2. Overcurrent protection
  3. Overpower protection
  4. Fan failure protection

Output On/Off Phase Setting Function

You can set the output ON phase and output OFF phase.

Storage Function

  • The settings for output voltage and frequency, along with their limits, can be stored in memory. This makes waveform simulation very convenient.

Computer Control

  • Using the standard GPIB interface, it is easy to form various automatic control systems.

TPA-100 Series Programmable AC Power Supply Specifications:

(Basic) TPA-110 TPA-120
(Rated Power) 1KW @ 110V, 220V 2KW @ 110V, 220V
(Phase) 1Φ 1Φ
(Efficiency ) >80% (Typical) >82% (Typical)
(Height) 4u 4u
(Crest Factor (Cf) ) 3.5 3.5
(Input)
(Voltage Range) 180~254V 190~254V
(Frequency Range) 47~63Hz 47~63Hz
(Current) <10A <15A
(Power Factor Full Load) ≥0.965 ≥0.985
(Output)
(Voltage)
(Voltage Range) 0<v≤300v< span=""> 0<v≤300v< span="">
(Phase) 150V/300V/AUTO 150V/300V/AUTO
(Accuracy) 0.2% of F.S. 0.2% of F.S.
(Resolution) 0.1V 0.1V
(Distortion) <1% <1%
(Line Regulation) <0.1% <0.1%
(Load Regulation) <0.1% <0.1%
(Temp. Coefficient) <0.02%/°C <0.02%/°C
(Current)
(Max RMS) 10/5A 20/10A
(Max Peak) 35A/20A 70A/35A
(Frequency)
(Range) 45-500Hz 45-500Hz
(Accuracy) <0.1% <0.1%
(Resolution) 0.1Hz 0.1Hz
(Measurement)
(Voltage)
(Range) 0<v≤300v< span=""> 0<v≤300v< span="">
(Accuracy) 0.2% +0.2% of F.S. 0.2%+0.2% of F.S.
(Resolution) 0.1V 0.1V
(Current)
(Measure Range) 0-140A 0-140A
(Resolution) 0.1A 0.1A
(Accuracy) 0.1% F.S. 0.1% F.S.
(Frequency)
(Range) 45-500Hz 45-500Hz
(Measure Accuracy) 0.02% 0.02%
(Resolution) 0.1Hz 0.1Hz
(Power/Phase)
(Accuracy) 1% F.S. 1% F.S.
(Resolution) 0.1W 0.1W
(PC Interface) IEEE-488 (GPIB)
(Operating) 0~40°C
(Storage) -40~+85°C
(Protection)

OPP, OLP, OTP, FAN Fail
